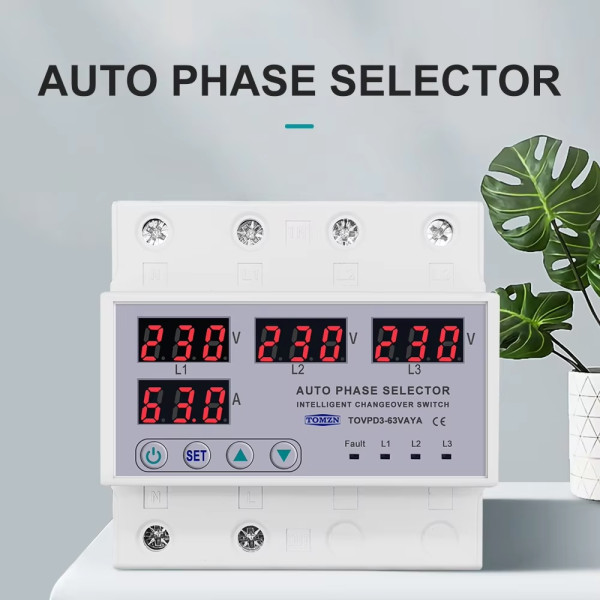

100A TOMZN 3 Phase Auto Phase Selector With Protection and Monitor (TOVPD3-63VAYA)(Pre Order)
Contact us for pricing
Product Details
Key Features
High Current Capacity: Supports up to 100A rated current, making it suitable for heavy industrial loads.
Wide Voltage Compatibility: Operates across 150V‑300V AC phase‑to‑neutral and handles 230V/400V three‑phase systems.
Adjustable Over/Under Voltage Protection: OVP range 230‑300V (default 270V) and UVP range 150‑210V (default 170V) can be fine‑tuned for precise protection.
Comprehensive Over‑Current Protection: OCP adjustable from 1A to 100A (default 60A) safeguards circuits against overloads.
Instantaneous Phase Loss & Sequence Protection: Detects phase loss and incorrect phase sequence instantly, preventing equipment damage.

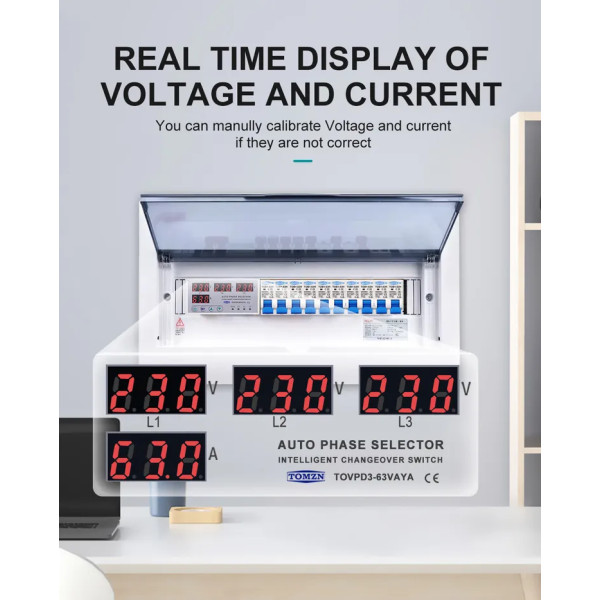

Accurate Monitoring: Voltage accuracy ±1% and current accuracy ±2% displayed on a high‑brightness LCD.
Robust DIN‑Rail Mounting: 35mm DIN rail mounting and fire‑retardant ABS housing ensure durable installation.
Broad Environmental Tolerance: Operates from -20°C to +55°C, stores from -40°C to +70°C, and tolerates up to 2000 m altitude.
Low Power Consumption: Consumes less than 2W, reducing energy costs.

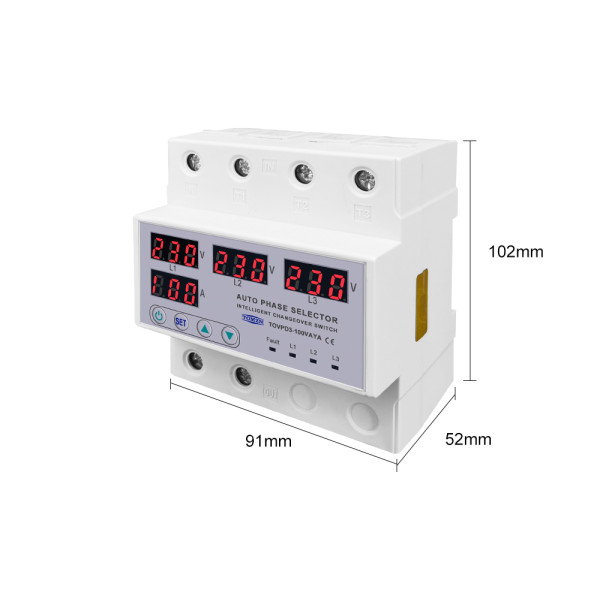

Compact Design: Dimensions approx. 100 mm × 90 mm × 75 mm and weight 650 g for space‑saving deployment.
Model Series | TOMZN TOVPD3-100VAYA Series |
Rated Current | 100A |

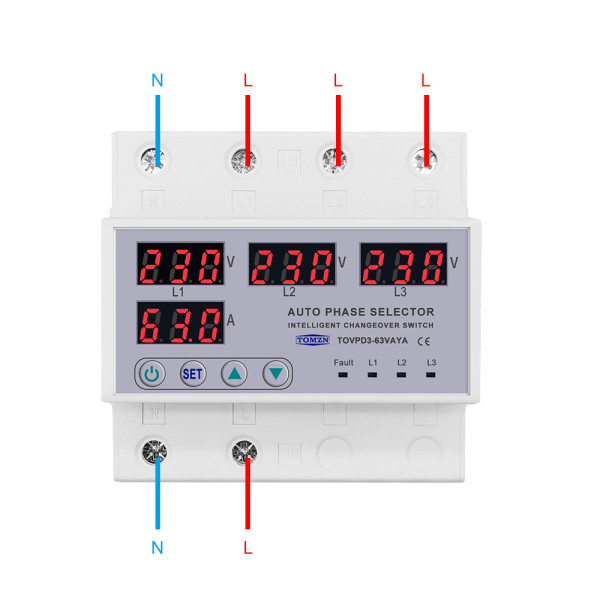

Rated Voltage | 3 Phase 4 Wire (3P+N), 230V/400V AC (L-N/L-L) |
Operating Voltage Range | 150V-300V AC (Phase to Neutral) |
Over Voltage Protection (OVP) Range | 230V - 300V (Adjustable, default 270V) |
Under Voltage Protection (UVP) Range | 150V - 210V (Adjustable, default 170V) |
Over Current Protection (OCP) Range | 1A - 100A (Adjustable, default 60A) |
Phase Unbalance Protection Range | 5V - 99V (Adjustable, default 50V) |
Phase Loss Protection | Yes (Instantaneous trip) |
Phase Sequence Protection | Yes (Instantaneous trip) |
OVP/UVP Trip Delay Time | 0.1s - 30s (Adjustable, default 1s) |
OCP Trip Delay Time | 0.1s - 30s (Adjustable, default 1s) |
Recovery Delay Time | 1s - 500s (Adjustable, default 30s) |
Voltage Measurement Accuracy | ±1% |
Current Measurement Accuracy | ±2% |
Display Type | High-brightness LCD Digital Display |
Mounting Type | 35mm DIN Rail |
Terminal Capacity | Up to 35mm² wire |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +70°C |
Relative Humidity | ≤50% (at 40°C, non-condensing) |
Altitude | ≤2000 meters |
Power Consumption | <2W |
Dimensions (L x W x H) | Approx. 100mm x 90mm x 75mm |
Weight | Approx. 650g |
Housing Material | Fire-retardant ABS Plastic |
Description
100A TOMZN 3 Phase Auto Phase Selector With Protection and Monitor (TOVPD3-63VAYA)(Pre Order)
Key Features & Benefits:
- High Current Capacity: Supports up to 100A rated current, making it suitable for heavy industrial loads.
- Wide Voltage Compatibility: Operates across 150V‑300V AC phase‑to‑neutral and handles 230V/400V three‑phase systems.
- Adjustable Over/Under Voltage Protection: OVP range 230‑300V (default 270V) and UVP range 150‑210V (default 170V) can be fine‑tuned for precise protection.
- Comprehensive Over‑Current Protection: OCP adjustable from 1A to 100A (default 60A) safeguards circuits against overloads.
- Instantaneous Phase Loss & Sequence Protection: Detects phase loss and incorrect phase sequence instantly, preventing equipment damage.
- Accurate Monitoring: Voltage accuracy ±1% and current accuracy ±2% displayed on a high‑brightness LCD.
- Robust DIN‑Rail Mounting: 35mm DIN rail mounting and fire‑retardant ABS housing ensure durable installation.
- Broad Environmental Tolerance: Operates from -20°C to +55°C, stores from -40°C to +70°C, and tolerates up to 2000 m altitude.
- Low Power Consumption: Consumes less than 2W, reducing energy costs.
- Compact Design: Dimensions approx. 100 mm × 90 mm × 75 mm and weight 650 g for space‑saving deployment.
Ideal For:
- Industrial factories requiring reliable three‑phase motor control
- Commercial building HVAC systems
- Data center power distribution units
- Renewable energy installations such as solar inverters
- Electrical contractors installing protective panels
- Manufacturing plants with heavy machinery
- Facility managers overseeing power safety compliance
Summary:
Revolution Technology BD offers the 100A TOMZN 3 Phase Auto Phase Selector With Protection and Monitor (TOVPD3-63VAYA) on pre‑order. This compact DIN‑rail device handles up to 100A, supports 230V/400V three‑phase systems, and provides adjustable over‑voltage, under‑voltage, over‑current, and phase‑unbalance protection with instant phase‑loss and sequence detection. With ±1% voltage and ±2% current accuracy displayed on a bright LCD, it meets demanding industrial and commercial power‑management needs while consuming less than 2W. Ideal for factories, HVAC, data centers, renewable energy setups, and electrical contractors, it is built from fire‑retardant ABS for durability.
