Name: MC4 3-in-1 Solar Panel Branch Connector
Brand: local
SKU: 6480
Availability: InStock

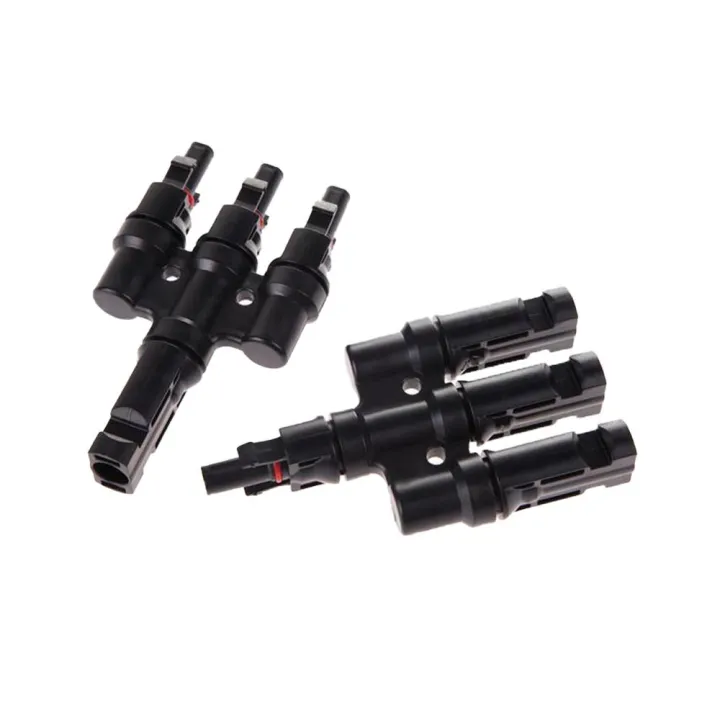

MC4 3-in-1 Solar Panel Branch Connector

Genuine Product Fast Delivery Easy Returns

Key Features

Versatile Connector Type: Supports both M/FFF and F/MMM configurations for flexible solar panel setups.

High Voltage Capacity: Handles up to 1000V DC / 1500V DC, suitable for large solar arrays.

Robust Current Rating: 30A rated current ensures reliable performance with 4mm² cables.

Durable Contact Material: Tinned copper contacts provide corrosion resistance and long life.

IP67 Protection: Waterproof and dustproof design protects against harsh outdoor conditions.

Wide Temperature Range: Operates from -40°C to +90°C, ideal for extreme climates.

UL94-V0 Flame Class: Passes stringent flame retardancy tests for safety.

Low Contact Resistance: Less than 0.5mΩ minimizes power loss.

High Insulation Resistance: Exceeds 500MΩ to prevent leakage currents.

Easy Crimp/Snap-in Connection: Simple installation with crimp or snap-in locking.

Broad Cable Compatibility: Fits 2.5mm², 4mm², and 6mm² cables for diverse system sizes.

Strong Pull-out Force: ≥ 50N pull-out force ensures secure connections.

Specification

Connector Type	MC4 3-in-1 Branch Connector (M/FFF and F/MMM)
Rated Voltage	1000V DC / 1500V DC
Rated Current	30A (for 4mm² cable)
Contact Material	Tinned Copper
Insulation Material	PPO / PC
Ingress Protection (IP) Rating	IP67
Temperature Range	-40°C to +90°C
Flame Class	UL94-V0
Safety Class	Class II
Contact Resistance	< 0.5mΩ
Insulation Resistance	> 500MΩ
Connection System	Crimp Connection / Snap-in Locking
Cable Compatibility	2.5mm² (AWG14), 4mm² (AWG12), 6mm² (AWG10)
Pull-out Force	≥ 50N
Insertion Force	≤ 50N
Dimensions (approx.)	108mm x 88mm x 18mm (L x W x H, per set)
Weight (approx. per set)	120g

Description

MC4 3-in-1 Solar Panel Branch Connector

Key Features & Benefits:

Versatile Connector Type: Supports both M/FFF and F/MMM configurations for flexible solar panel setups.
High Voltage Capacity: Handles up to 1000V DC / 1500V DC, suitable for large solar arrays.
Robust Current Rating: 30A rated current ensures reliable performance with 4mm² cables.
Durable Contact Material: Tinned copper contacts provide corrosion resistance and long life.
IP67 Protection: Waterproof and dustproof design protects against harsh outdoor conditions.
Wide Temperature Range: Operates from -40°C to +90°C, ideal for extreme climates.
UL94-V0 Flame Class: Passes stringent flame retardancy tests for safety.
Low Contact Resistance: Less than 0.5mΩ minimizes power loss.
High Insulation Resistance: Exceeds 500MΩ to prevent leakage currents.
Easy Crimp/Snap-in Connection: Simple installation with crimp or snap-in locking.
Broad Cable Compatibility: Fits 2.5mm², 4mm², and 6mm² cables for diverse system sizes.
Strong Pull-out Force: ≥ 50N pull-out force ensures secure connections.

Ideal For:

Residential solar panel installations
Commercial rooftop solar systems
Off-grid solar power solutions
Solar-powered irrigation pumps
Solar street lighting projects

Summary:

The MC4 3-in-1 Solar Panel Branch Connector from Revolution Technology BD offers a versatile, high‑voltage (1000V/1500V) and high‑current (30A) solution for solar installations. Its IP67 rating, wide temperature tolerance, and UL94‑V0 flame class make it reliable in harsh outdoor environments. Ideal for residential, commercial, and off‑grid solar projects, this connector is available now at Revolution Technology BD.
