Solar Structure for Tin-Shade (for 2 Solar Panel)
Contact us for pricing
Product Details
Key Features
Corrosion Resistance: Anodized Al6005-T56 rails and galvanized screws resist rust, ensuring long‑term durability on tin roofs.
High Strength Rail: The 310 mm long trapezoidal rail provides robust support for two panels, maintaining structural integrity.
Adjustable Clamps: End and mid clamps adjust to 30‑45mm panel frames, allowing secure mounting of various panel sizes.
Secure Edge Grip: End clamps offer a 4‑piece secure edge grip, preventing panel movement during wind events.
Panel‑to‑Panel Connection: Mid clamps connect panels side‑by‑side, creating a stable, flat mounting surface.
Self‑Drilling Screws: 10 galvanized M6.3 x 80mm screws provide high holding power without pre‑drilling, simplifying installation.
Parallel Roof Pitch Installation: The system aligns panels parallel to the roof pitch, optimizing sunlight capture and aesthetic integration.
Low Maintenance: Once installed, the aluminum and steel components require minimal upkeep, saving time and money.
Energy Independence: Supporting two panels reduces reliance on the grid, lowering monthly electricity bills.
Eco‑Friendly Value: Solar generation on tin roofs cuts carbon emissions, enhancing property value and environmental impact.

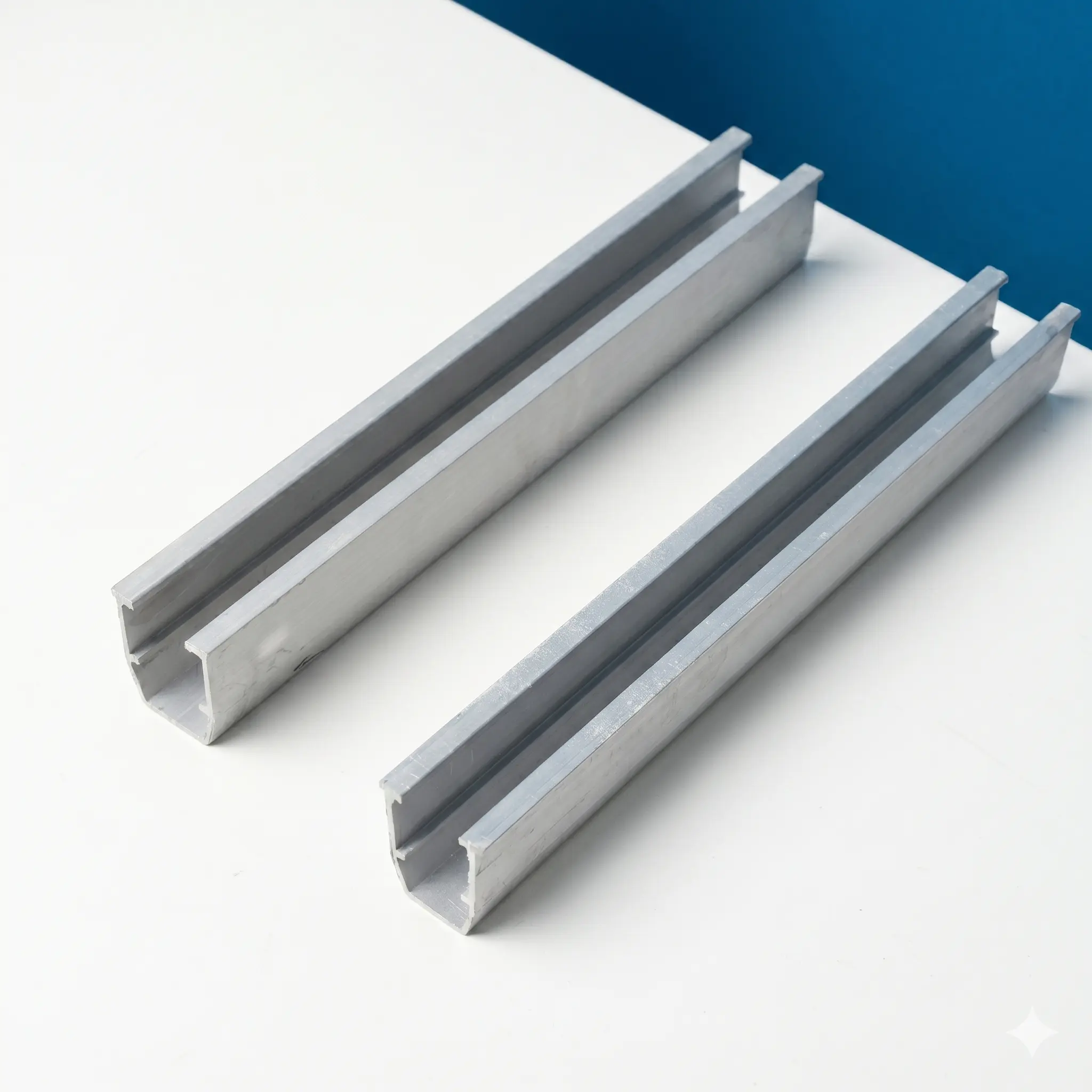

Component | Trapezoidal Aluminum Rail |
Material | Anodized Al6005-T56 |
Quantity | Pcs |
Dimensions | 310 mm (L) x 40mm (W) x 40mm (H) |
Weight per unit | 0.8 kg |
Key Features | Corrosion-resistant, Roof-profile specific, High strength |

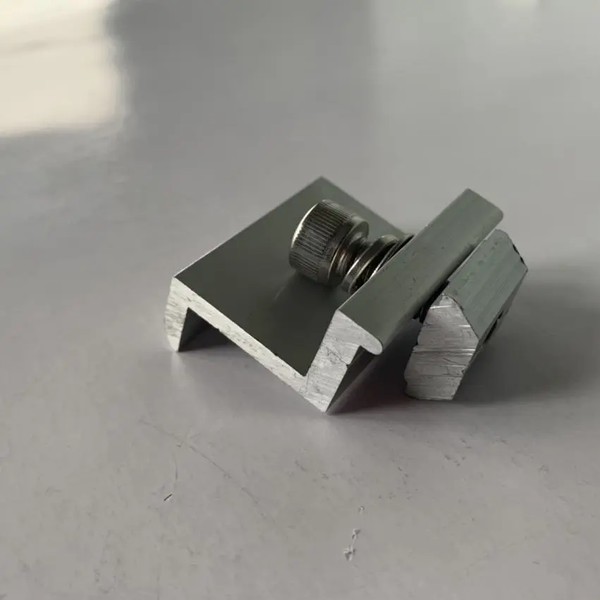

Component | Aluminum End Clamp |
Material | Anodized Al6005-T5, SUS304 Bolt |
Quantity | 4 Pcs |
Dimensions | 50mm (L) x 20mm (W) x 40mm (H) |
Weight per unit | 0.05 kg |
Key Features | Adjustable for 30-45mm panel frames, Secure edge grip |

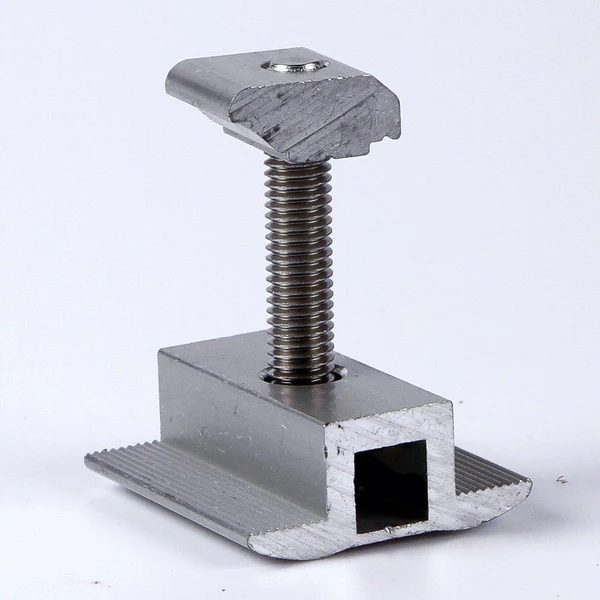

Component | Aluminum Mid Clamp |
Material | Anodized Al6005-T5, SUS304 Bolt |
Quantity | 2 Pcs |
Dimensions | 50mm (L) x 20mm (W) x 40mm (H) |
Weight per unit | 0.05 kg |
Key Features | Adjustable for 30-45mm panel frames, Panel-to-panel connection |

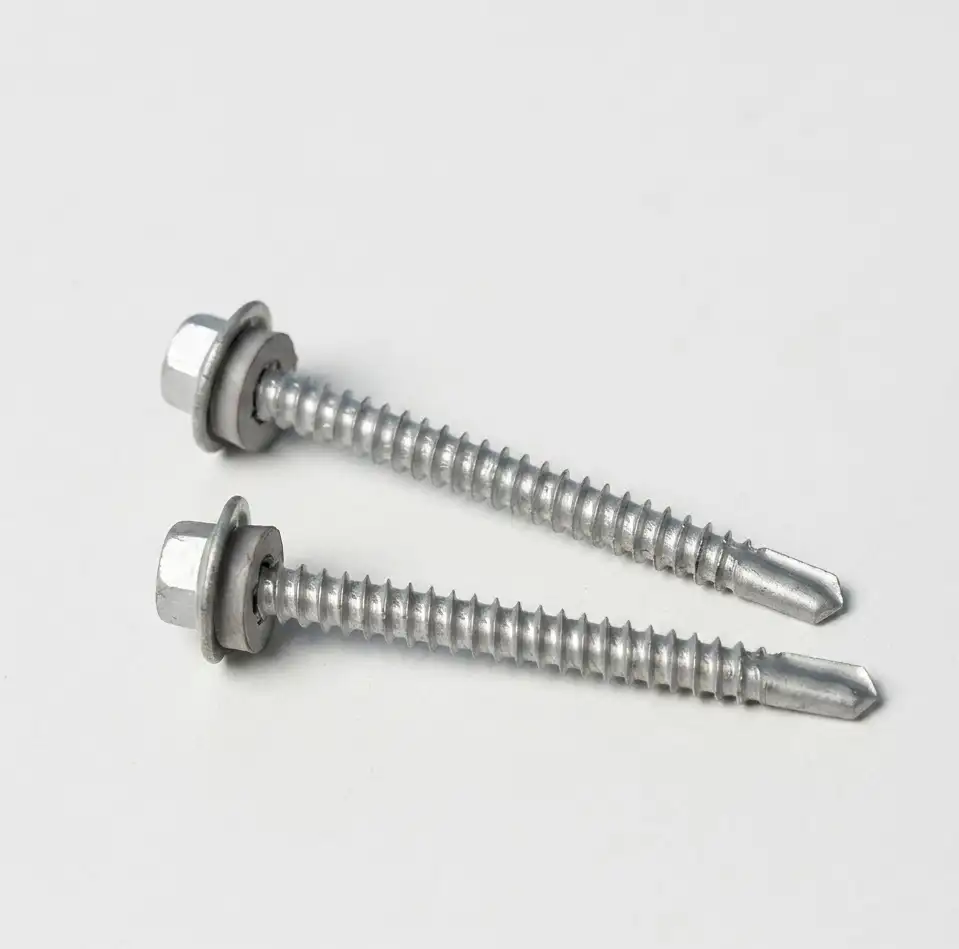

Component | Hex Flange Self Drilling Screw |
Material | Galvanized Carbon Steel |
Quantity | 10 Pcs |
Dimensions | M6.3 x 80mm |
Weight per unit | 0.02 kg |
Key Features | Self-drilling, High holding power, Corrosion-resistant |
Overall System Specification | Panel Capacity |
Value | 2 Solar Panels |
Overall System Specification | Compatible Panel Frame Thickness |
Value | 30mm - 45mm |
Overall System Specification | Installation Angle |
Value | Parallel to roof pitch |
Description
Solar Structure for Tin-Shade (for 2 Solar Panel)
Key Features & Benefits:
- Corrosion Resistance: Anodized Al6005-T56 rails and galvanized screws resist rust, ensuring long‑term durability on tin roofs.
- High Strength Rail: The 310 mm long trapezoidal rail provides robust support for two panels, maintaining structural integrity.
- Adjustable Clamps: End and mid clamps adjust to 30‑45mm panel frames, allowing secure mounting of various panel sizes.
- Secure Edge Grip: End clamps offer a 4‑piece secure edge grip, preventing panel movement during wind events.
- Panel‑to‑Panel Connection: Mid clamps connect panels side‑by‑side, creating a stable, flat mounting surface.
- Self‑Drilling Screws: 10 galvanized M6.3 x 80mm screws provide high holding power without pre‑drilling, simplifying installation.
- Parallel Roof Pitch Installation: The system aligns panels parallel to the roof pitch, optimizing sunlight capture and aesthetic integration.
- Low Maintenance: Once installed, the aluminum and steel components require minimal upkeep, saving time and money.
- Energy Independence: Supporting two panels reduces reliance on the grid, lowering monthly electricity bills.
- Eco‑Friendly Value: Solar generation on tin roofs cuts carbon emissions, enhancing property value and environmental impact.
Ideal For:
- Homeowners with tin roofs seeking renewable energy
- Small business owners wanting to reduce utility costs
- Property developers adding value to new builds
- Residential landlords offering green energy options
- Eco‑conscious families aiming for energy independence
Summary:
The Solar Structure for Tin‑Shade is a lightweight, corrosion‑resistant mounting system designed for two solar panels on tin roofs. With 310 mm aluminum rails, adjustable clamps, and self‑drilling galvanized screws, it delivers secure, low‑maintenance support that aligns panels parallel to the roof pitch. Ideal for homeowners, small businesses, and developers, this kit helps cut electricity bills, boost property value, and reduce carbon footprints. Available now at Revolution Technology BD.
