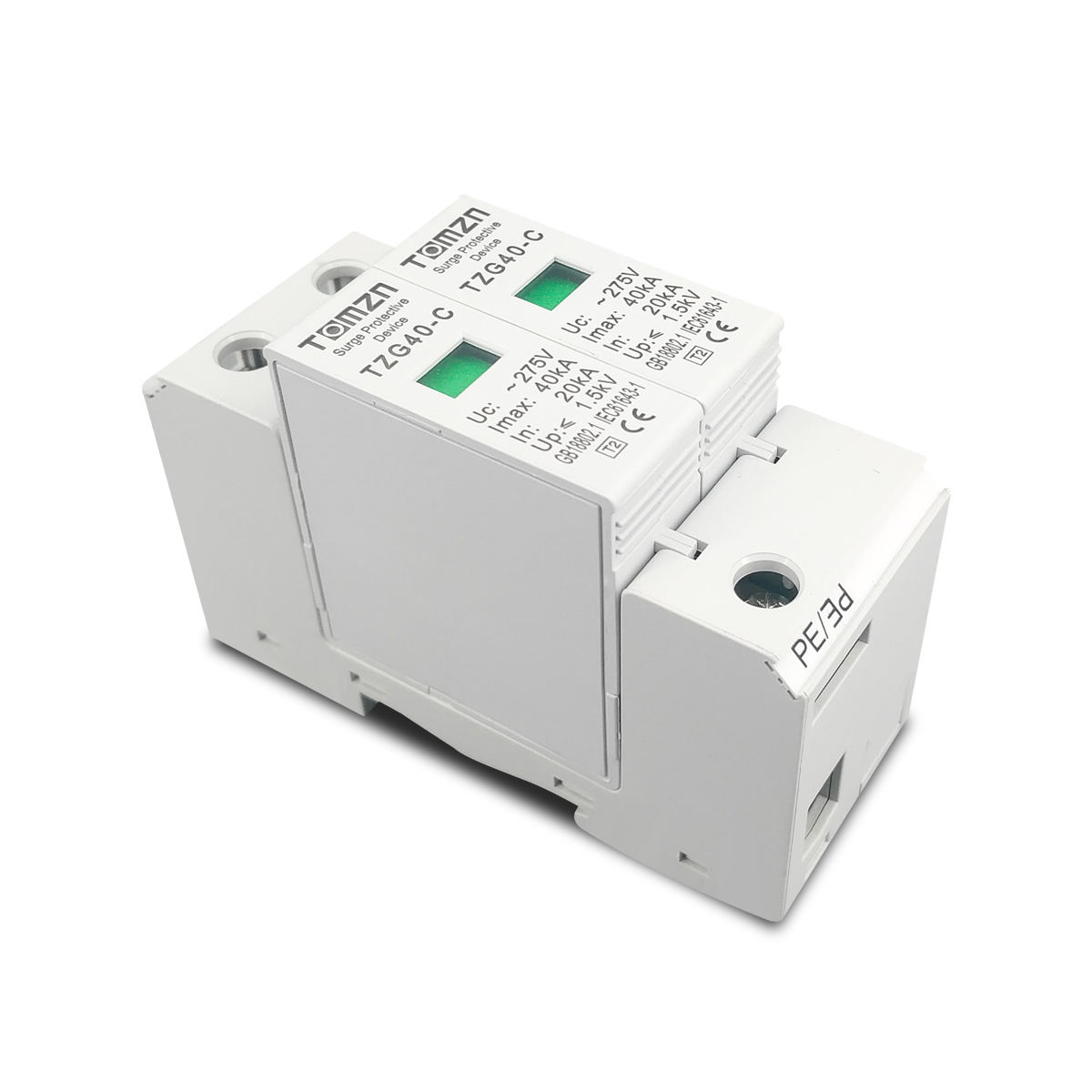

TOMZN TZG40-C 2P AC SPD 275V Surge Protector 20kA–40kA Low-voltage Arrester Device
Contact us for pricing
Product Details
Key Features
High Surge Capacity: Handles up to 40kA of maximum discharge current, protecting equipment from extreme surges.
Dual Pole Design: 2P (2 Pole) configuration ensures comprehensive protection for both phases.
Low Operating Voltage: Rated at 275V AC, ideal for standard 230/400V AC systems.
Fast Response Time: Test waveform of 8/20µs guarantees rapid interruption of harmful spikes.
Short-Circuit Protection: Withstands up to 10kA short-circuit currents, safeguarding downstream devices.
DIN Rail Mounting: 35mm DIN rail installation simplifies integration into existing panels.
Single-Phase Compatibility: Designed for single-phase systems, suitable for most residential setups.
Standard Compliant: Meets IEC/EN 61643-1, ensuring reliability and safety.
Versatile Application: Suitable for residential, commercial, and industrial low-voltage AC systems.
Compact Size: Compact 35mm DIN rail profile saves space in distribution boards.
Easy Installation: Straightforward DIN rail mounting reduces installation time and cost.
Long-Term Reliability: Built to endure repeated surge events without degradation.
Product Name | TOMZN TZG40-C 2P AC SPD |
Product Type | AC Surge Protection Device (SPD) |
Pole Configuration | 2P (2 Pole) |
Rated Operating Voltage (Uc) | 275V AC |
System Voltage | 230/400V AC |
Frequency | 50/60Hz |
Maximum Discharge Current (Imax) | 20kA–40kA |
Nominal Discharge Current (In) | Model dependent |
Test Waveform | 8/20μs |
Protection | Lightning Surge & Transient OvervoltageShort-Circuit WithstandUp to 10kA (as specified) |
Installation | 35mm DIN Rail |
Application | Low-Voltage AC Electrical Systems |
Standard | IEC/EN 61643-1 |
Phase | Single-Phase |
Mounting Type | DIN Rail |
Application Areas | Residential, Commercial & Industrial |
Installation Location | Distribution Board / Electrical Panel |
Main Function | Diverts dangerous surge voltage away from connected equipment |
Description
TOMZN TZG40-C 2P AC SPD 275V Surge Protector 20kA–40kA Low-voltage Arrester Device
Key Features & Benefits:
- High Surge Capacity: Handles up to 40kA of maximum discharge current, protecting equipment from extreme surges.
- Dual Pole Design: 2P (2 Pole) configuration ensures comprehensive protection for both phases.
- Low Operating Voltage: Rated at 275V AC, ideal for standard 230/400V AC systems.
- Fast Response Time: Test waveform of 8/20µs guarantees rapid interruption of harmful spikes.
- Short-Circuit Protection: Withstands up to 10kA short-circuit currents, safeguarding downstream devices.
- DIN Rail Mounting: 35mm DIN rail installation simplifies integration into existing panels.
- Single-Phase Compatibility: Designed for single-phase systems, suitable for most residential setups.
- Standard Compliant: Meets IEC/EN 61643-1, ensuring reliability and safety.
- Versatile Application: Suitable for residential, commercial, and industrial low-voltage AC systems.
- Compact Size: Compact 35mm DIN rail profile saves space in distribution boards.
- Easy Installation: Straightforward DIN rail mounting reduces installation time and cost.
- Long-Term Reliability: Built to endure repeated surge events without degradation.
Ideal For:
- Homeowners protecting home appliances
- Small business owners safeguarding office equipment
- Industrial facility managers ensuring critical machinery safety
- Data center technicians protecting servers
- Electrical contractors installing surge protection in new builds
Summary:
The TOMZN TZG40-C 2P AC SPD is a robust surge protector designed for low‑voltage AC systems, offering up to 40kA of maximum discharge current and 10kA short‑circuit withstand. Its dual‑pole, 275V AC rating and 8/20µs response make it ideal for residential, commercial, and industrial applications. Mountable on a 35mm DIN rail, it meets IEC/EN 61643-1 standards for reliable protection. Available now at Revolution Technology BD for all your surge protection needs.
