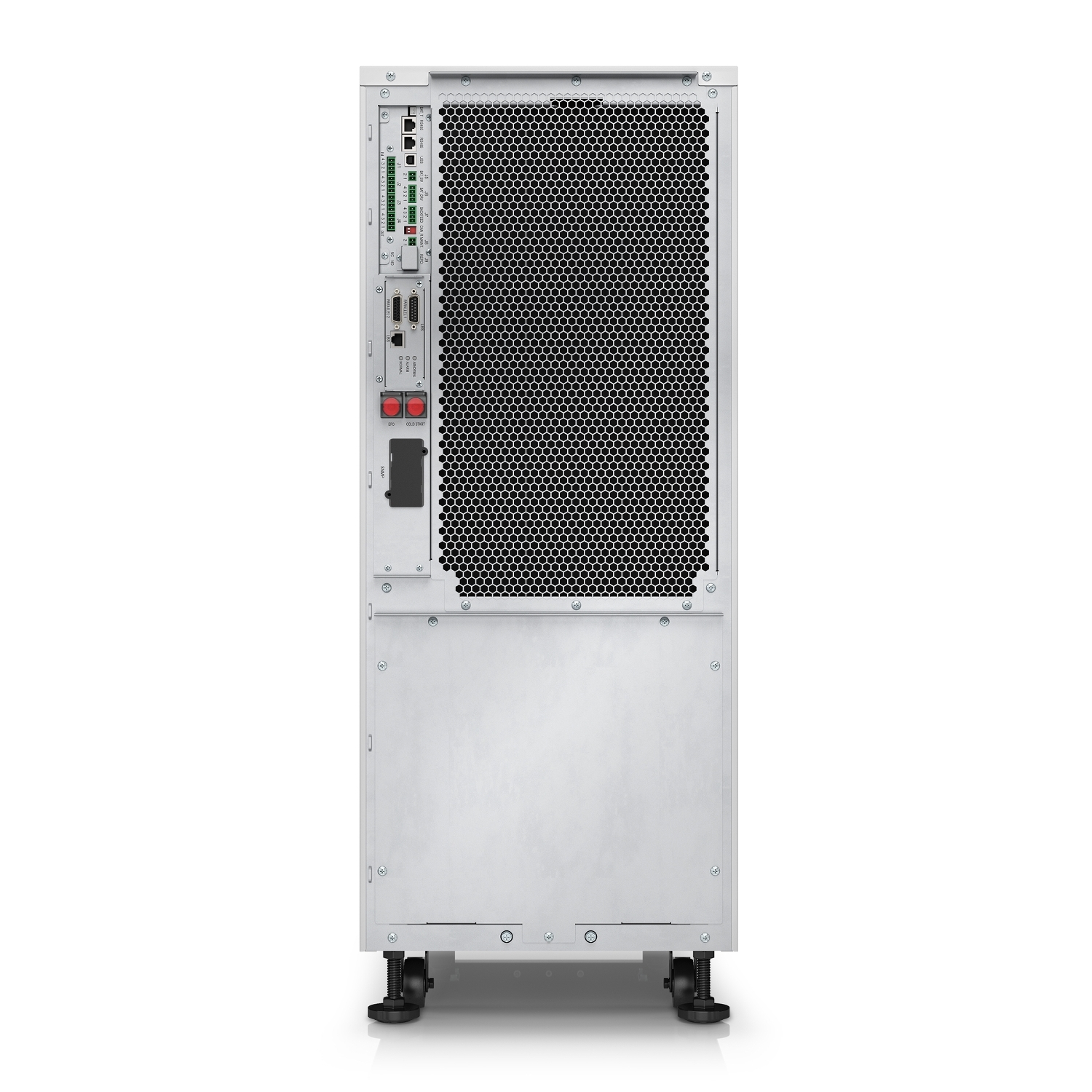

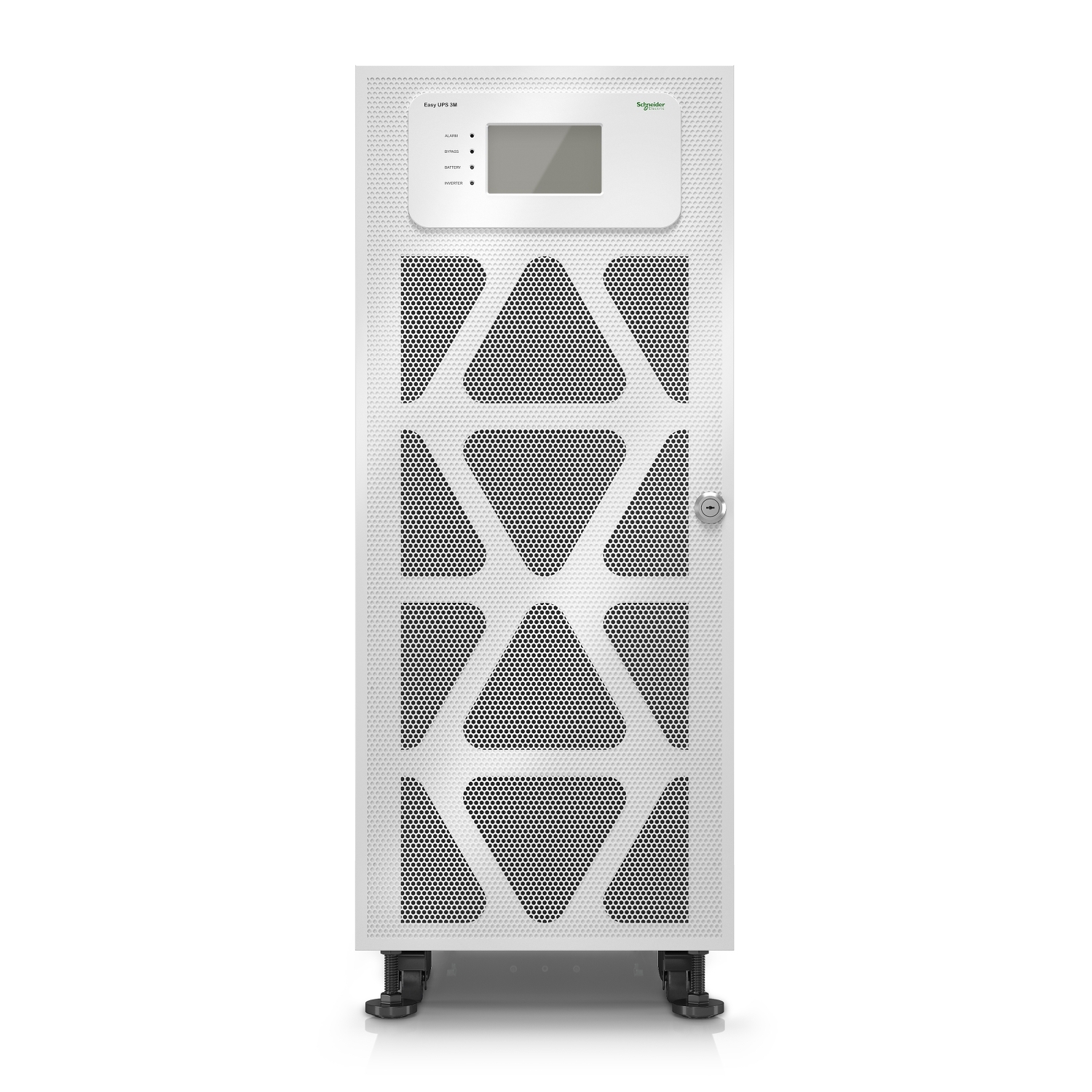

APC Easy UPS 3M 80kVA 400V 3:3 UPS

Genuine Product Fast Delivery Easy Returns

Key Features

Reliable Power Protection: The APC Easy UPS 3M 80kVA 400V 3:3 UPS provides reliable power protection with a high efficiency rate of up to 96%.

Advanced Battery Technology: The UPS features advanced battery technology with 50 sealed maintenance-free lead acid batteries, providing a long-lasting and reliable power source.

High Output Power: With an output power of 80 kW, this UPS is suitable for large commercial and industrial applications.

Pure Sine Wave Output: The UPS provides a 100% pure sine wave output, ensuring that your equipment is protected from power surges and spikes.

Easy Installation and Maintenance: The UPS features a touch screen LCD user interface, making it easy to install and maintain.

Wide Range of Input Voltage: The UPS can operate within a wide range of input voltage, from 342 V to 477 V AC.

High Overload Capability: The UPS can handle high overload conditions, with a capability of 125% for 10 minutes and 150% for 1 minute.

Long Backup Time: The UPS provides a long backup time of 30 minutes at 50% load, ensuring that your equipment remains operational during power outages.

Compliance with International Standards: The UPS complies with international standards, including IEC 62040-1 and IEC 62040-2.

Advanced Communication Options: The UPS features advanced communication options, including RS-232, USB, and SNMP (optional).

High Efficiency in ECO Mode: The UPS achieves a high efficiency rate of up to 99% in ECO mode, reducing energy consumption and costs.

Cold Start Capability: The UPS features a cold start capability, allowing it to start up even in the absence of a power source.

Auto Restart Function: The UPS features an auto restart function, which automatically restarts the UPS in case of a power failure.

Specification

Brand	APC by Schneider Electric
Model	Easy UPS 3M
Technology	Complied
Country of Origin	France
Capacity	80 KVA
Output Power (kW)	80 KW
Rated Voltage (Input)	380–415 V AC, 3 phase, 4 wire + ground, 50/60 Hz
Voltage Tolerance (Input)	342 V to 477 V AC
Frequency (Input)	40–70 Hz
Power Factor (Input)	>0.99
Power Factor (Output)	1
Total Harmonic Distortion (THD)	Complied
Output Inverter	Complied with Output Inverter
Output Voltage	380–415 V AC, 3 phase
Output Voltage Tolerance	±1%
Output Frequency	50/60 Hz (synced)
Overload Capability	125% for 10 min, 150% for 1 min
Crest Factor	3:01
Efficiency	up to 96%
Efficiency – Online Mode	up to 96%
Efficiency – ECO Mode	up to 99%
Transfer Time	0 ms
Current Waveform	100% Pure Sine Wave
Battery Type	Sealed Maintenance-Free Lead Acid (SMF VRLA)
Battery Brand	Kstar
Number of Batteries	50
Battery Rating	12 V, 40 Ah
Protection	Overload, Short Circuit, Over Voltage, Under Voltage, Battery Deep Discharge, Over Temperature
Communication	RS-232 / USB / SNMP (optional)
Interfaces	Touch screen LCD user interface
Environment	0–40°C, 0–95% RH Non-condensing
Features	Cold Start, Auto Restart, Bypass
Standards	IEC 62040-1, IEC 62040-2
IP Rating	IP20
Certificate	CE, ISO 9001, ISO 14001
Backup Time	30 min @ 50% Load
Warranty	2 Year UPS & Battery

Description

APC Easy UPS 3M 80kVA 400V 3:3 UPS

Key Features & Benefits:

Reliable Power Protection: The APC Easy UPS 3M 80kVA 400V 3:3 UPS provides reliable power protection with a high efficiency rate of up to 96%.
Advanced Battery Technology: The UPS features advanced battery technology with 50 sealed maintenance-free lead acid batteries, providing a long-lasting and reliable power source.
High Output Power: With an output power of 80 kW, this UPS is suitable for large commercial and industrial applications.
Pure Sine Wave Output: The UPS provides a 100% pure sine wave output, ensuring that your equipment is protected from power surges and spikes.
Easy Installation and Maintenance: The UPS features a touch screen LCD user interface, making it easy to install and maintain.
Wide Range of Input Voltage: The UPS can operate within a wide range of input voltage, from 342 V to 477 V AC.
High Overload Capability: The UPS can handle high overload conditions, with a capability of 125% for 10 minutes and 150% for 1 minute.
Long Backup Time: The UPS provides a long backup time of 30 minutes at 50% load, ensuring that your equipment remains operational during power outages.
Compliance with International Standards: The UPS complies with international standards, including IEC 62040-1 and IEC 62040-2.
Advanced Communication Options: The UPS features advanced communication options, including RS-232, USB, and SNMP (optional).
High Efficiency in ECO Mode: The UPS achieves a high efficiency rate of up to 99% in ECO mode, reducing energy consumption and costs.
Cold Start Capability: The UPS features a cold start capability, allowing it to start up even in the absence of a power source.
Auto Restart Function: The UPS features an auto restart function, which automatically restarts the UPS in case of a power failure.

Ideal For:

Large commercial and industrial applications
Data centers and server rooms
High-density computing environments
Medical facilities and hospitals
Financial institutions and banks
Government institutions and agencies
Educational institutions and universities

Summary:

The APC Easy UPS 3M 80kVA 400V 3:3 UPS is a reliable and efficient power protection solution for large commercial and industrial applications. With a high output power of 80 kW and a long backup time of 30 minutes at 50% load, this UPS is suitable for data centers, server rooms, and high-density computing environments. The UPS features advanced battery technology, a pure sine wave output, and a wide range of input voltage, making it a reliable and efficient power protection solution. The UPS is available at Revolution Technology BD, with a warranty of 2 years and a delivery time of delivery from ready stock until stock ends.
