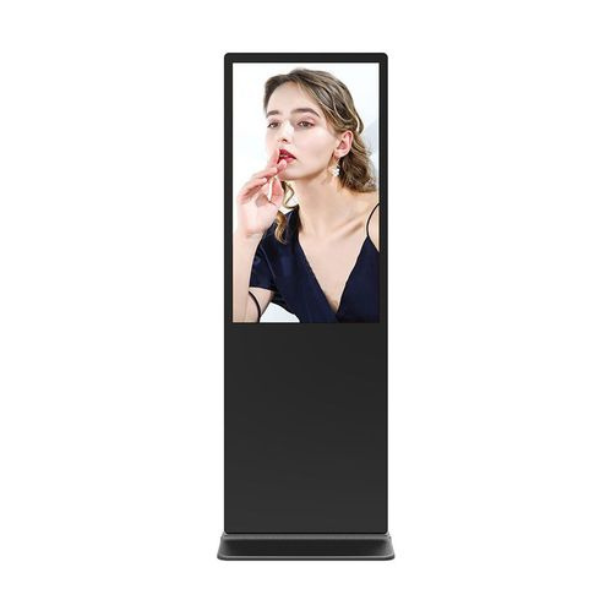

Artive DF-5531A11CT-V2 55" Vertical PCAP Touch 4K Android Digital Signage
Contact us for pricing
Product Details
Key
Features
55-inch 4K UHD (3840×2160) IPS Display
10-Point PCAP Capacitive Touch for smooth
interaction
Android 11 OS with powerful RK3566 quad-core
processor
4GB DDR4 RAM & 32GB Internal Storage
400 cd/m² brightness with wide viewing angle
(178° equivalent)
Tempered Glass Protection (4mm, 6-6.5 Mohs
hardness)
Built-in Wi-Fi, Ethernet, and Bluetooth
connectivity
Dual 10W speakers for clear audio output
Designed for vertical interactive digital
signage applications
Specifications
|
Specification |
Details |
|
Brand |
Artive |
|
Model |
DF-5531A11CT-V2 |
|
Display Size |
55 Inch |
|
Orientation |
Vertical |
|
Display Type |
IPS LCD Panel |
|
Resolution |
3840 × 2160 (4K UHD) |
|
Aspect Ratio |
16:9 |
|
Brightness |
400 cd/m² |
|
Contrast Ratio |
1100:1 |
|
Viewing Angle |
89° / 89° / 89° / 89° |
|
Response Time |
≤6 ms |
|
Pixel Pitch |
0.315 × 0.315 mm |
|
Touch Technology |
10-Point PCAP Capacitive Touch |
|
Glass Protection |
4mm Tempered Glass |
|
Glass Hardness |
6–6.5 Mohs |
|
Light Transmittance |
>97% |
|
Processor |
RK3566 Quad-Core Cortex-A55 |
|
CPU Speed |
Up to 1.8GHz |
|
GPU |
ARM G52 2EE |
|
Operating System |
Android 11 |
|
RAM |
4GB DDR4 |
|
Internal Storage |
32GB |
|
Speakers |
Built-in 8Ω / 10W × 2 |
|
Networking |
Ethernet RJ-45, Wi-Fi 802.11 b/g/n |
|
Bluetooth |
Bluetooth 4.0 |
|
USB Ports |
2 × USB 2.0 |
|
Supported Video Formats |
MPEG-1/2/4, MP4, MKV, MOV, TS, TP,
TRP, DAT, ASF |
|
Supported Audio Formats |
MP3, MP2, WMA, WAV |
|
Supported Image Formats |
JPEG, PNG |
|
Power Supply |
AC 100–240V, 50/60Hz |
|
Power Consumption |
70–120W (Running), ≤5W (Standby) |
|
Operating Temperature |
0°C – 50°C |
|
Storage Temperature |
−10°C – 60°C |
|
Body Material |
Black Metal Structure |
|
Installation |
Floor Standing Vertical Display |
|
Warranty |
1 Year |
Description
Artive
DF-5531A11CT-V2 55" Vertical PCAP Touch 4K Android Digital Signage
Product
Overview
The Artive DF-5531A11CT-V2 55" Vertical PCAP Touch 4K Android Digital Signage is a powerful interactive display designed for modern digital communication and engagement. Featuring a stunning 55-inch 4K UHD IPS panel with 10-point capacitive touch technology, it delivers ultra-clear visuals and highly responsive interaction, making it ideal for interactive kiosks, retail stores, corporate environments, shopping malls, educational institutions, and public information systems.
Powered by a RK3566 quad-core processor and Android 11 operating system, the signage offers smooth performance for multimedia playback and interactive applications. The 4GB RAM and 32GB internal storage ensure efficient multitasking and sufficient space for content management.

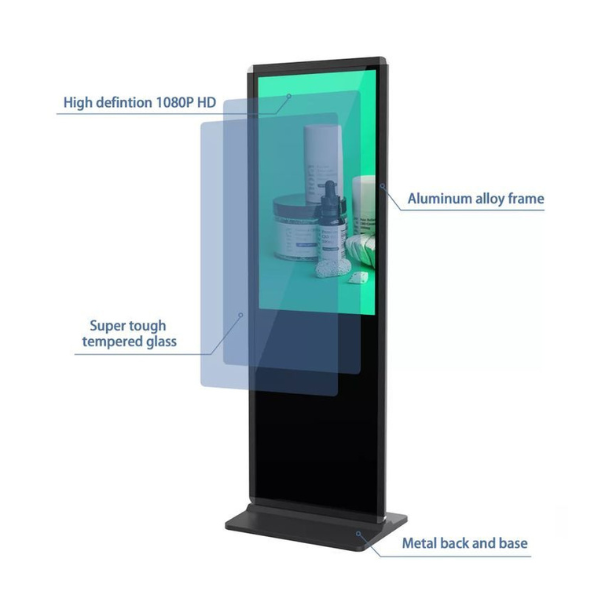

Its durable 4mm tempered glass screen with 6–6.5 Mohs hardness protects the display in high-traffic environments, while the sleek black metal structure gives it a premium professional appearance. With built-in Wi-Fi, Ethernet connectivity, and multiple media format support, the Artive digital signage provides a complete solution for dynamic content delivery and interactive user experiences
