BenQ WDC15 4K UHD Wireless Presentation System

Genuine Product Fast Delivery Easy Returns

Key Features

4K UHD Wireless Presentation: Supports up to 4K resolution at 30Hz, delivering crystal‑clear visuals for presentations.

HDMI 1.4 with HDCP: Ensures secure, high‑definition video output compatible with most displays.

AES128 Encryption: Provides robust data protection during wireless transmission.

Dual Antenna 2dbi MIMO: Offers stable, high‑speed connectivity up to 867 Mbps on 5G WiFi.

WPA3 Security: Advanced WiFi protection for secure corporate environments.

TouchBack Functionality: Allows instant control of the host device via the InstaShow button.

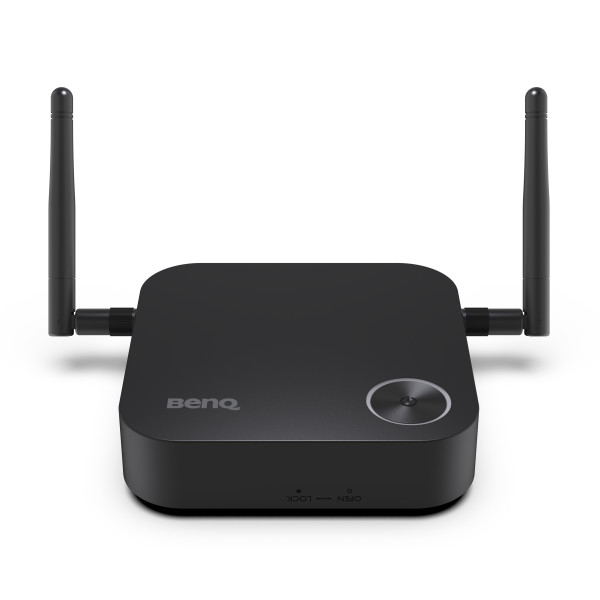

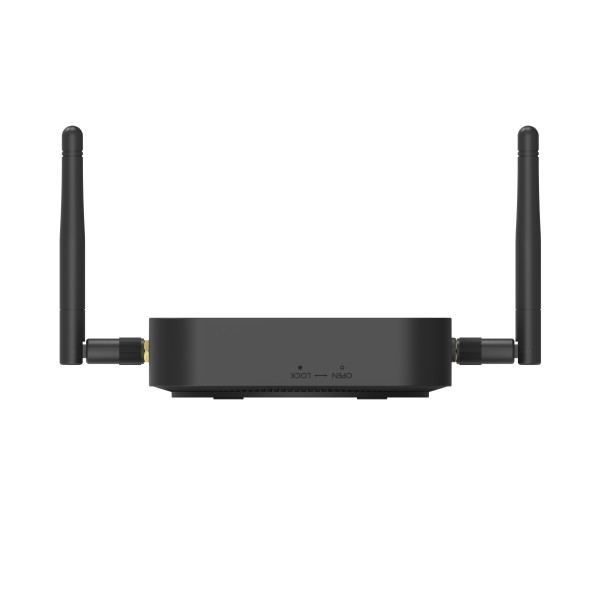

Compact Host Design: 110x110x29 mm and 205 g weight make it portable for on‑the‑go use.

Low Power Consumption: 10W normal power usage keeps energy costs down.

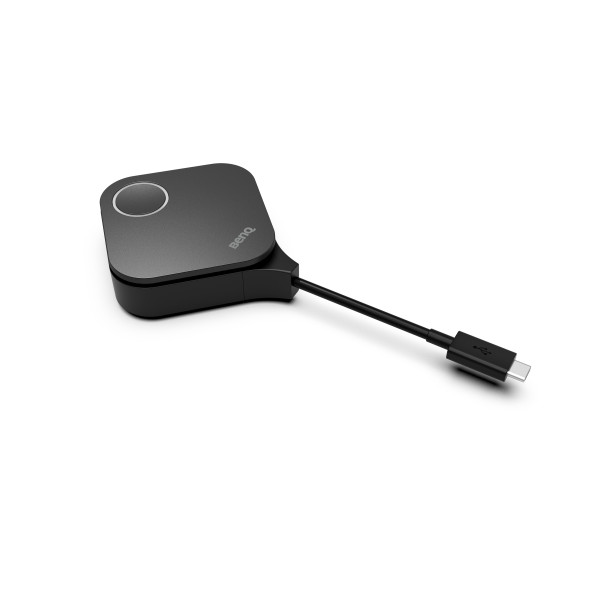

Easy Setup with USB-C Button: Simple plug‑and‑play connection for the InstaShow button.

Multiple Simultaneous Connections: Supports up to 16 devices simultaneously for large meetings.

RJ45 Wired Backup: Optional wired connection via RJ45 for added reliability.

Specification

InstaShow PackageButton (Transmitter)	x1
Antenna	x2, 2dbi, MIMOCradle
Safety Statement	x1
Button HDMI cable	x1
Host (Receiver)	x1
Power Adapter	x1
Cable: HDMI A(M) to A(M)	x1
InstaShow Button Button Connector Type	USB Type C
Button Function Key Mode Key	Key
InstaShow Host Host Power Supply	2A, DC 5V±10%
Host Normal Power Consumption	10W
WLAN (RJ45)	x1
HDMI out	x1
Host Dimensions without antenna	110x110x29 mm
Host Weight	205 g
InstaShow Cradle Cradle Dimensions	84.5x62.5x128mm
Cradle Weight	568 g
Video Outputs	HDMI 1.4 (with HDCP)
Advanced Encryption Standard	AES128
Maximum Output Resolution (Receiver)	Up to 4K 30Hz
WiFi Standard	5
Wireless Frequency	5G
Wireless Data Rate (Maximum)	AC1200 (5G 867 Mbps)
Simultaneous connections	16
WiFi Protected Access	WPA3
TouchBack	Yes

Description

BenQ WDC15 4K UHD Wireless Presentation System

Key Features & Benefits:

4K UHD Wireless Presentation: Supports up to 4K resolution at 30Hz, delivering crystal‑clear visuals for presentations.
HDMI 1.4 with HDCP: Ensures secure, high‑definition video output compatible with most displays.
AES128 Encryption: Provides robust data protection during wireless transmission.
Dual Antenna 2dbi MIMO: Offers stable, high‑speed connectivity up to 867 Mbps on 5G WiFi.
WPA3 Security: Advanced WiFi protection for secure corporate environments.
TouchBack Functionality: Allows instant control of the host device via the InstaShow button.
Compact Host Design: 110x110x29 mm and 205 g weight make it portable for on‑the‑go use.
Low Power Consumption: 10W normal power usage keeps energy costs down.
Easy Setup with USB-C Button: Simple plug‑and‑play connection for the InstaShow button.
Multiple Simultaneous Connections: Supports up to 16 devices simultaneously for large meetings.
RJ45 Wired Backup: Optional wired connection via RJ45 for added reliability.

Ideal For:

Corporate meeting rooms
University lecture halls
Conference centers
Training workshops
Remote teaching setups
Tech product demos
Public speaking events

Summary:

The BenQ WDC15 4K UHD Wireless Presentation System delivers high‑definition video up to 4K at 30Hz with secure AES128 encryption and WPA3 WiFi protection. Its compact host, dual 2dbi MIMO antennas, and low 10W power consumption make it ideal for corporate, educational, and public speaking environments. Available at Revolution Technology BD, it offers a plug‑and‑play experience with HDMI 1.4, USB‑C button control, and optional RJ45 backup for reliable connectivity.
