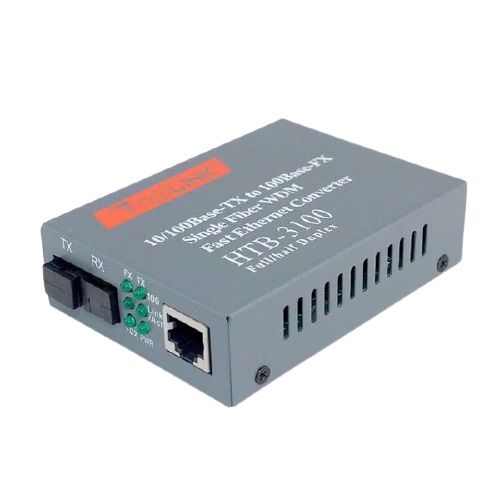

D-Link HTB-3100 (A+B) Fiber Optic Media Converter (Bundle With Full Set)

Specification

Description

D-Link HTB-3100 (A+B) Fiber Optic Media Converter

The D-Link HTB-3100 Fiber Optic Media Converter is a 10/100M single-mode single-fiber converter that is the conversion equipment of Ethernet optical-electronic signals between the 10/100M UTP interface (TX) and the 100M fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to a distance of 90 km through a single optical fiber link. The performance and quality of the products are excellent because of adopting the latest IC from Taiwan. It must be used in pairs because the transmitted optical differs from the received optical in wavelength. 6. Group LED indicator lights could fully monitor the working conditions of converters. It is easy for end-users to observe the conditions of the network. This product is specially designed for network end-users. The transmission of a channel optical signal can be completed by a single fiber. It has doubled in the quantity of fiber data transmission compared with the twin fiber type. The auto-negotiation function allows the UTP port to auto-select 10M or 100M and full duplex or half duplex. The UTP port supports MDI/MDI-X auto crossover with supporting flow control and a 1552-byte packet. It also has an internal circuit of prevented thunder that could greatly reduce the damage to the converter caused by thunderbolt induction. Design of internal or external power supply for selection by users.
