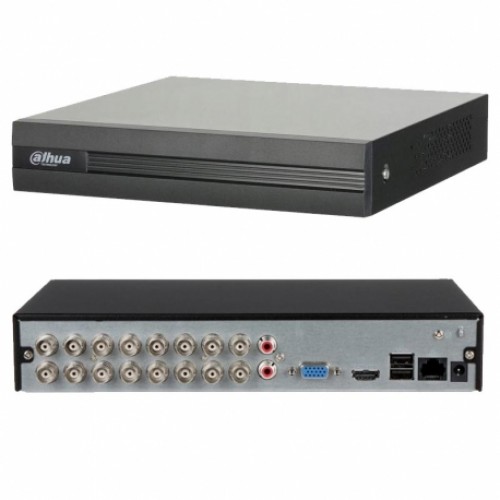

Name: Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder
Brand: Dahua
SKU: 2837
Price: 6300 BDT
Availability: InStock

Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder

৳ 6,300

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

Key Features

16-Channel Support for Multi-Camera Surveillance: The Dahua XVR1B16-I supports up to 16 channels, making it ideal for multi-camera surveillance systems.

High-Resolution Video Recording: With support for up to 6MP resolution per channel, the Dahua XVR1B16-I provides high-quality video recording for detailed surveillance.

Two-Way Talk for Real-Time Communication: The Dahua XVR1B16-I features two-way talk, allowing for real-time communication between the recorder and cameras.

Multi-Screen Display for Easy Monitoring: With support for up to 16 screens, the Dahua XVR1B16-I provides easy monitoring and control of multiple cameras.

Advanced Video Detection and Alarm: The Dahua XVR1B16-I features advanced video detection and alarm capabilities, including motion detection, video loss, and tampering.

Support for Multiple Recording Modes: The Dahua XVR1B16-I supports multiple recording modes, including manual, schedule, and motion detection.

High-Speed Playback for Efficient Review: The Dahua XVR1B16-I features high-speed playback, allowing for efficient review of recorded footage.

Compact and Space-Saving Design: The Dahua XVR1B16-I features a compact and space-saving design, making it ideal for small to medium-sized surveillance systems.

Support for Multiple Network Protocols: The Dahua XVR1B16-I supports multiple network protocols, including HTTP, HTTPS, TCP/IP, and more.

Easy Integration with Third-Party Devices: The Dahua XVR1B16-I features easy integration with third-party devices, including IP cameras, DVRs, and more.

Advanced Security Features for Data Protection: The Dahua XVR1B16-I features advanced security features, including data encryption and secure login.

Long-Term Reliability and Durability: The Dahua XVR1B16-I is designed for long-term reliability and durability, with a compact and rugged design that can withstand harsh environments.

Support for Multiple Backup Options: The Dahua XVR1B16-I features support for multiple backup options, including USB and network backup.

Specification

Main Processor	Embedded processor
Operating System	Embedded linux
Audio and Video	IP Camera Input
Number of Channels	16+2 channels
Maximum Resolution per Channel	6MP
Two-Way Talk	Reuse audio in/out, RCA
Display Interface	1 HDMI; 1 VGA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen Display	When IP extension mode not enabled: 1/4/8/9/16, When IP extension mode enabled: 1/4/8/9/16
OSD	Camera title; Time; Video loss; Camera lock; Motion detection; Recording
Recording	Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval	1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec
Video Detection And Alarm	Trigger Event: Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input	N/A
Relay Output	N/A
Playback And Backup	Sync Playback 1/4/9/16, Search Mode: Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode	USB Device/Network
Third Party Support	Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network Interface	1 RJ-45 Port (100 MB)
Network Function	HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Maximum User Access	128 users
Smart Phone	iPhone; iPad; Android
Interoperability	ONVIF 16.12, CGI Conformant
Storage	Internal HDD 1 SATA port, up to 6 TB capacity
Auxiliary Interface	USB 2 USB ports (USB 2.0)
Power Supply	DC 12V/2A
Power Consumption	< 10W
Operational Conditions	-10°C to +45°C (+14°F to +113°F), 10%–90% (RH)
Storage Conditions	-20°C to +70°C (-4°F to +158°F), 0%–90% (RH)
Dimensions	Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'')
Net Weight	0.89 kg (1.96 lb)
Gross Weight	1.42 kg (3.13 lb)

Description

Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder

Key Features & Benefits:

16-Channel Support for Multi-Camera Surveillance: The Dahua XVR1B16-I supports up to 16 channels, making it ideal for multi-camera surveillance systems.
High-Resolution Video Recording: With support for up to 6MP resolution per channel, the Dahua XVR1B16-I provides high-quality video recording for detailed surveillance.
Two-Way Talk for Real-Time Communication: The Dahua XVR1B16-I features two-way talk, allowing for real-time communication between the recorder and cameras.
Multi-Screen Display for Easy Monitoring: With support for up to 16 screens, the Dahua XVR1B16-I provides easy monitoring and control of multiple cameras.
Advanced Video Detection and Alarm: The Dahua XVR1B16-I features advanced video detection and alarm capabilities, including motion detection, video loss, and tampering.
Support for Multiple Recording Modes: The Dahua XVR1B16-I supports multiple recording modes, including manual, schedule, and motion detection.
High-Speed Playback for Efficient Review: The Dahua XVR1B16-I features high-speed playback, allowing for efficient review of recorded footage.
Compact and Space-Saving Design: The Dahua XVR1B16-I features a compact and space-saving design, making it ideal for small to medium-sized surveillance systems.
Support for Multiple Network Protocols: The Dahua XVR1B16-I supports multiple network protocols, including HTTP, HTTPS, TCP/IP, and more.
Easy Integration with Third-Party Devices: The Dahua XVR1B16-I features easy integration with third-party devices, including IP cameras, DVRs, and more.
Advanced Security Features for Data Protection: The Dahua XVR1B16-I features advanced security features, including data encryption and secure login.
Long-Term Reliability and Durability: The Dahua XVR1B16-I is designed for long-term reliability and durability, with a compact and rugged design that can withstand harsh environments.
Support for Multiple Backup Options: The Dahua XVR1B16-I features support for multiple backup options, including USB and network backup.

Ideal For:

Small to medium-sized businesses
Residential surveillance systems
Retail stores and shopping centers
Office buildings and corporate campuses
Schools and universities
Hospitals and healthcare facilities
Government institutions and public buildings
Industrial and manufacturing facilities
Parking lots and garages
High-security areas and sensitive facilities

Summary:

The Dahua XVR1B16-I is a compact and space-saving digital video recorder that supports up to 16 channels and provides high-quality video recording. With advanced video detection and alarm capabilities, support for multiple recording modes, and easy integration with third-party devices, this recorder is ideal for small to medium-sized surveillance systems. The Dahua XVR1B16-I is also designed for long-term reliability and durability, with a compact and rugged design that can withstand harsh environments. Revolution Technology BD offers the Dahua XVR1B16-I at an affordable price, making it an excellent choice for businesses and individuals looking for a reliable and efficient surveillance solution.
