Fortinet FortiGate-200F 31 Port Managed Network Switch
Contact us for pricing
Product Details
Key Features
Enhanced Network Security: The Fortinet FortiGate-200F 31 Port Managed Network Switch comes with advanced security features, including IPS, NGFW, and threat protection, ensuring a robust defense against cyber threats.
High-Speed Performance: With a data transfer rate of 10/100/1000 Mbps and a firewall throughput of 16.5 Mpps, this switch provides high-speed performance for demanding network applications.
Scalable and Flexible: The FortiGate-200F supports up to 64 FortiSwitches, 256 FortiAPs, and 5000 FortiTokens, making it an ideal choice for large-scale network deployments.
Easy Management: The switch is managed through a user-friendly interface, allowing administrators to configure and monitor network settings with ease.
Advanced Networking Features: The FortiGate-200F supports advanced networking features, including VLANs, VPNs, and SSL inspection, ensuring secure and reliable network communication.
Energy Efficiency: The switch is 80Plus compliant, ensuring energy efficiency and reducing power consumption.
Reliability and Durability: The FortiGate-200F is built with high-quality components and designed for reliability and durability, ensuring minimal downtime and maximum network uptime.
Compliance and Certification: The switch meets various compliance and certification standards, including FCC Part 15B, CE, and USGv6/IPv6, ensuring regulatory compliance and interoperability with other network devices.
Advanced Threat Protection: The FortiGate-200F comes with advanced threat protection features, including IPS, NGFW, and threat protection, ensuring robust defense against cyber threats and malware.
Secure Authentication and Authorization: The switch supports secure authentication and authorization, ensuring that only authorized users have access to network resources.
Network Segmentation: The FortiGate-200F supports network segmentation, allowing administrators to isolate sensitive data and applications from the rest of the network.
Quality of Service (QoS): The switch supports QoS, ensuring that critical network applications receive priority traffic and minimizing network congestion.
Brand | Fortinet |
Model | Fortinet FortiGate-200F |
Type | Network Switch |
Part No | FG-200F |
Ports & Slots | 31 Port |
SFP Port | 8 |
SFP+ Port | 4 |
PoE Port | No |
PoE+ Port | No |
Technical Info | No |
Manageability | Managed |

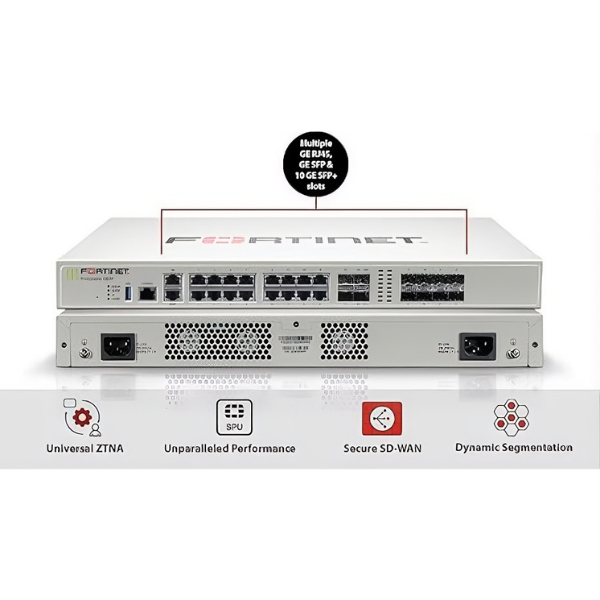

Interface(s) | 2 x GE RJ45 HA/ MGMT Ports, 16 x GE RJ45 Ports, 2 x 10 GE SFP+ Slots, 2 x 10 GE SFP+ FortiLink Slots, 8 x GE SFP Slots, 1 Port Console |
Network Standards | 10/100/1000 Mbps |
Data Transfer Rate | 10/100/1000 Mbps |

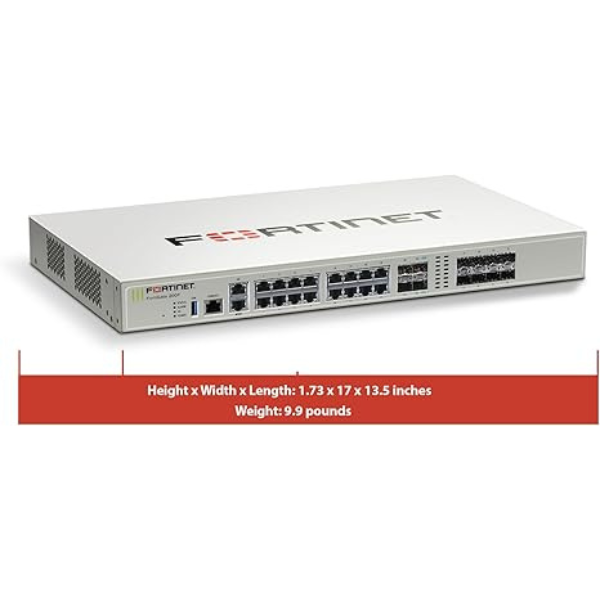

Physical Description | Fan/Fanless 3 Indicators Yes Body Material Metal Body Color White Form Factor Rackmount Dimension 432 x 342 x 44mm Weight 4.5 kg |
Power | 100 - 240V AC, 50/60 Hz |
Approx. Power Consumption | 101.92W (Avg.) 118.90W (Max) |
Warranty | Standard Warranty (Without Adapter) |
Onboard Storage | 1x 480 GB SSD |
Trusted Platform Module (TPM) | Yes |
Bluetooth Low Energy (BLE) | Yes |
IPS Throughput | 5 Gbps |
NGFW Throughput | 3.5 Gbps |
Threat Protection Throughput | 3 Gbps |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 27 / 27 / 11 Gbps |
Firewall Latency (64 byte, UDP) | 4.78 us |
Firewall Throughput (Packet per Second) | 16.5 Mpps |
Concurrent Sessions (TCP) | 3 Million |
New Sessions/Second (TCP) | 280 000 |
Firewall Policies | 10 000 |
IPsec VPN Throughput (512 byte) | 13 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
Client-to-Gateway IPsec VPN Tunnels | 16 000 |
SSL-VPN Throughput | 2 Gbps |
Concurrent SSL-VPN Users | 500 |
SSL Inspection Throughput | 4 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 3500 |
SSL Inspection Concurrent Session | 300 000 |
Application Control Throughput | 13 Gbps |
CAPWAP Throughput (HTTP 64K) | 20 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 64 |
Maximum Number of FortiAPs | 256 / 128 |
Maximum Number of FortiTokens | 5000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Power Supply Efficiency Rating | 80Plus Compliant |
Operating Temperature | (0-40 degree C) |
Storage Temperature | (-35 -70 degree C) |
Humidity | 20% - 90% non-condensing |
Noise Level | 49.9 dBA |
Forced Airflow | Side to Back |
Operating Altitude | Up to 7400 ft (2250 m) |
Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL, Certification: USGv6/IPv6 |
Description
Fortinet FortiGate-200F 31 Port Managed Network Switch
Key Features & Benefits:
- Enhanced Network Security: The Fortinet FortiGate-200F 31 Port Managed Network Switch comes with advanced security features, including IPS, NGFW, and threat protection, ensuring a robust defense against cyber threats.
- High-Speed Performance: With a data transfer rate of 10/100/1000 Mbps and a firewall throughput of 16.5 Mpps, this switch provides high-speed performance for demanding network applications.
- Scalable and Flexible: The FortiGate-200F supports up to 64 FortiSwitches, 256 FortiAPs, and 5000 FortiTokens, making it an ideal choice for large-scale network deployments.
- Easy Management: The switch is managed through a user-friendly interface, allowing administrators to configure and monitor network settings with ease.
- Advanced Networking Features: The FortiGate-200F supports advanced networking features, including VLANs, VPNs, and SSL inspection, ensuring secure and reliable network communication.
- Energy Efficiency: The switch is 80Plus compliant, ensuring energy efficiency and reducing power consumption.
- Reliability and Durability: The FortiGate-200F is built with high-quality components and designed for reliability and durability, ensuring minimal downtime and maximum network uptime.
- Compliance and Certification: The switch meets various compliance and certification standards, including FCC Part 15B, CE, and USGv6/IPv6, ensuring regulatory compliance and interoperability with other network devices.
- Advanced Threat Protection: The FortiGate-200F comes with advanced threat protection features, including IPS, NGFW, and threat protection, ensuring robust defense against cyber threats and malware.
- Secure Authentication and Authorization: The switch supports secure authentication and authorization, ensuring that only authorized users have access to network resources.
- Network Segmentation: The FortiGate-200F supports network segmentation, allowing administrators to isolate sensitive data and applications from the rest of the network.
- Quality of Service (QoS): The switch supports QoS, ensuring that critical network applications receive priority traffic and minimizing network congestion.
Ideal For:
- Large enterprises with complex network infrastructures
- Service providers requiring high-speed and secure network services
- Government agencies with strict security and compliance requirements
- Financial institutions with high-security and reliability needs
- Healthcare organizations with sensitive patient data
- Educational institutions with large-scale network deployments
- Data centers with high-performance and reliability requirements
Summary:
The Fortinet FortiGate-200F 31 Port Managed Network Switch is a high-performance, secure, and scalable network switch designed for large-scale network deployments. With advanced security features, high-speed performance, and energy efficiency, this switch is ideal for large enterprises, service providers, government agencies, and other organizations with complex network infrastructures. Available at Revolution Technology BD, this switch provides reliable and secure network communication, ensuring minimal downtime and maximum network uptime.
