Hikvision DS-D5B86RB/FL 86" 4K UHD Interactive Flat Panel Display

৳ 400,000

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

Specification

Display Details
Display Format Native Resolution	4K Ultra HD 3840 × 2160
Panel Type	DLED
Aspect Ratio	16:9
Picture Response Time	5ms
Refresh Frequency	60Hz
Pixel Pitch	0.143 (H) mm × 0.430 (V) mm
Display Colors	1.07G Color Depth: 10 bit
Brightness (typical)	400 cd/m² (Typ.)
Contrast Ratio	5000:1 (Static), 30,000:1 (Dynamic)
Viewing Angle	178°(H)/178°(V)
Life Time	50,000 hours
Others	Surface Haze: 25% Haze Display Area: 1895.04 x 1065.96mm Working Duration: 7 × 16H Surface Hardness: 9H (Pencil) 7 (Mohs) Surface Glass: 3.2 mm Anti-Glare Glass Transmittance: 88% ± 3
Touch System
Touch Point	40-point multi-touch
Touch Response Time	＜ 5 ms
Surface Hardness	9H
Interpolation Resolution	32767 × 32767
Others	Minimum Touch Object: ≥ 2 mm (≥ 90% touching area) Touch Precision: ± 1 mm (≥ 90% touching area)
Operating System
System Version	Android 13.0
CPU	Cortex-A55 × 4 (1.92GHz)
GPU	Mali-G52 MP2 (2EE)
RAM	8GB
ROM	128GB
Connectivity
HDMI	HDMI In (HDMI 2.0) ×2
PC Audio In	Audio In × 1
Audio out	Audio Out × 1
LAN	LAN (100 Mbps) × 2
USB	USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0)
RS232	1x RS232
Others	Touch-USB 2.0 × 1 Wall Mounting: 800 x 400mm
Physical Specification
Active Screen Size	86"
Dimensions	1960.44 x 1177.74 x 82.5mm
Weight	61.5 kg
Power	100 to 240 VAC, 50/60 Hz
Standby Power	≤ 0.5 W
Power Requirements	Max. Consumption: 217 W Average Consumption: 175 W
Others	WIFI AP&Station，2.4G/5G WIFI AP：IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP WIFI Station：IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP Loudspeaker: Built-in 2 × 20 W Speaker Frequency: 200-20Khz Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2 NFC Support card reader Light Sensor: Yes
Warranty
Warranty	3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue)

Description

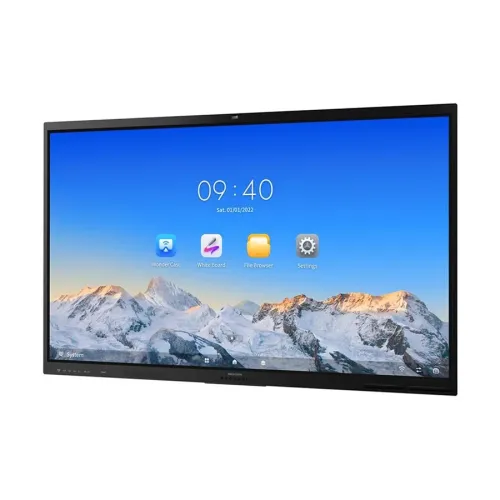

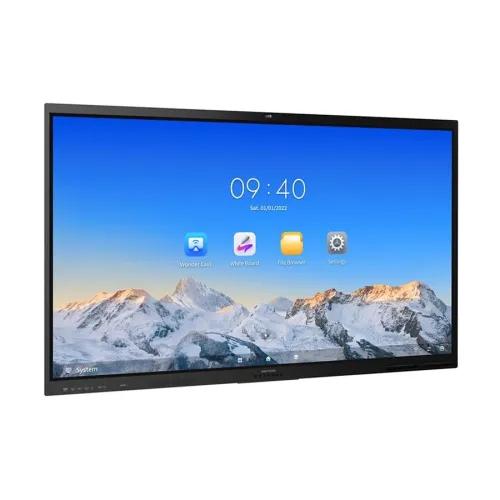

Hikvision DS-D5B86RB/FL 86" 4K UHD Interactive Flat Panel Display

The Hikvision DS-D5B86RB/FL 86" 4K UHD Interactive Flat Panel Display is a luxurious solution for efficient collaboration, corporate meetings, and educational settings. The Hikvision 4K Interactive Flat Panel boasts an amazing 86-inch 4K Ultra HD (3840 × 2160) resolution, bright colors, and a 10-bit color depth that supports 1.07 billion colors. The 16:9 aspect ratio, 5000:1 static contrast ratio (30,000:1 dynamic), and 400 cd/m² brightness provide clear images from all angles. Its 60Hz refresh rate and 5ms reaction time reduce motion blur, making it suitable for professional presentations, interactive learning, and video playback. The Hikvision DS-D5B86RB/FL Interactive Flat Panel features 3.2mm anti-glare glass with a 9H surface hardness, 25% haze, and 88% transmittance, reducing reflections and enhancing visibility in bright environments. The Hikvision DS-D5B86RB/FL 86" Interactive Flat Panel is equipped with an advanced 40-point multi-touch system that responds in under 5ms, ensuring smooth and precise interactions. The Android 13.0 operating system, powered by a Cortex-A55 quad-core processor (1.92GHz) and Mali-G52 MP2 GPU, along with 8GB RAM and 128GB ROM, provides seamless performance for applications, interactive content, and multimedia presentations. Connectivity is extensive, featuring dual HDMI 2.0 inputs, USB 3.0 (×3), USB 2.0 (×2), Type-C, RS232, LAN (100 Mbps ×2), and a touch-USB 2.0 port, making the Hikvision DS-D5B86RB/FL 86" 4K Interactive Flat Panel highly versatile for various professional environments. Built-in Wi-Fi (2.4G/5G) with IEEE 802.11 a/b/g/n/ac/ax compatibility, Bluetooth 5.2, and NFC card reading support further enhance connectivity and security. The Hikvision Interactive Flat Panel features two 20W speakers with a frequency range of 200-20KHz, providing clean and immersive sound. The Hikvision DS-D5B86RB/FL Interactive Flat Panel has a 50,000-hour lifetime, a maximum power usage of 217W, and a standby power of < 0.5W. The product measures 1960.44 × 1177.74 × 82.5mm and weighs 61.5kg. It supports VESA wall mounting (800 × 400mm) for flexible installation. A built-in light sensor changes brightness automatically based on ambient lighting conditions, hence increasing energy economy. The Hikvision DS-D5B86RB/FL 86" 4K UHD Interactive Flat Panel Display is ideal for commercial use, interactive classrooms, and conference rooms. It has modern technology, amazing interaction, and an immersive visual experience.
