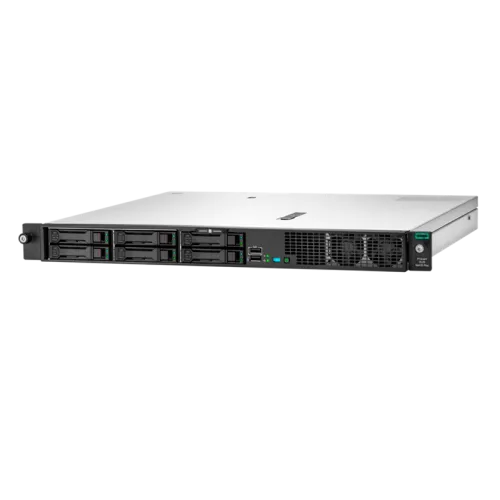

HPE ProLiant DL 20 Gen10 Plus 2LFF NHP Rack Server

Item

Detail specification

Brand

Hewlett-Packard Enterprise (HPE)

Model

ProLiant DL 20 Gen10 Plus 2LFF NHP Server

Country of Origin

U.S.A

Processor

1x Intel Xeon 4-Core Processor (Intel Xeon E-2334), 3.4GHz

No. of Processor

02 (Two)

Cache Memory

37.5 L3 Cache Per Processor

UPI

2 GT/s

Chipset

Intel C741 Chipset

Memory (RAM )

1x 16GB 1RX8 PC4-3200AA-E STND RAM

Expansion Slots (PCI)

Up to 8 PCIe 4.0 slots, 3 slots available with the system and secondary riser board require for optional slots upgradation.

Storage Controller (RAID)

2x HPE 1TB SAS 10K SFF MV HDD

Internal Storage Devices (HDD

2x1TB 6G SATA 3.5IN NHP MDL HDD

Maximum Internal Storage Capacity

(8) Hot plug SFF SAS/SATA HDD bays; upgradable to 24 SFF SAS/SATA/SSD Drives

Optical Drive

N/A

Power Supply

4 x HPE 290W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

System Fans

Redundant System Cooling Fan

Network Controller

Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

Interfaces (I/O)

1x HPE 1Gb Dedicated iLO Remote Management Network Port, (Optional1x MicroSD), 5x USB 3.0, 1x SID (Systems Insight Display Optional)

Operating Systems and
Virtualization Software Support

Microsoft Windows Server

VMware ESXi

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Canonical Ubuntu

Oracle Linux and Oracle VM

Industry Standard Compliance

ACPI 6.1, PCIe 3.0, WOL Support, Microsoft® Logo certifications, PXE Support, VGA/Display Port, USB 3.0 Compliant (internal), USB 2.0 Compliant (external ports via SUV), Energy Star, SMBIOS 3.1, UEFI 2.6, Redfish API, IPMI 2.0, Secure Digital 2.0, Advanced Encryption Standard (AES), Triple Data Encryption Standard (3DES), SNMP v3, TLS 1.2, DMTF Systems Management Architecture for Server Hardware Command Line

Protocol (SMASH CLP), Active Directory v1.0, ASHRAE A3/A4

Graphics

Integrated Matrox G200 video standard with 16MB of Video RAM

Form Factor

2U Rack form factor with Rail Kit & Cable Management Arm

Embedded Management

HPE Integrated Lights-Out (iLO) with Intelligent Provisioning, UEFI, RESTful API, Embedded Remote Support

ILO license for remote mananagement

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

InfoSight

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities.

Security

Bezekl kit with Lock, Power-on password, Serial interface control,

Administrator's password, UEFI, iLO Advanced support directory

services integration, TPM 1.2, FIPS

+HPE Trusted Platform Module 2.0 Gen10 Plus Black Rivets Kit

Warranty

HPE 3Y Tech Care Basic Service
