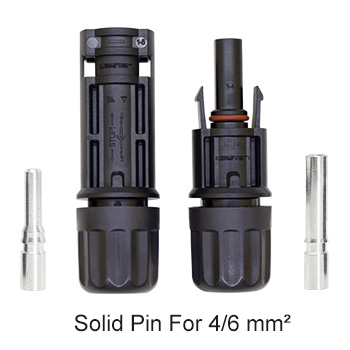

Leader MC4 Solar Panel Connector For Solar System
Contact us for pricing
Product Details
Key Features
High Voltage Rating: Supports up to 1000V, ideal for large solar arrays.
Robust Current Capacity: Handles 30A on 4mm² cable, ensuring efficient power transfer.
Low Contact Resistance: ≤0.5mΩ contact resistance minimizes energy loss.
Durable Contact Material: Tinned copper contacts resist corrosion for long life.
Weatherproof Design: IP67 rating guarantees protection against water and dust.
Wide Temperature Range: Operates from -40°C to +90°C, suitable for extreme climates.
High Flame Resistance: UL94-V0 flame class ensures safety in fire-prone environments.
Versatile Cable Compatibility: Fits 2.5mm², 4mm², 6mm² cables (14AWG, 12AWG, 10AWG).
Strong Mechanical Strength: Pull-out force ≥50N and insertion force ≤50N for secure connections.
Excellent Insulation: Insulation resistance >500MΩ protects against short circuits.
Product Name | Leader MC4 Solar Panel Connector For Solar System |
Brand | Select Brand (Leader Series) |
Rated Voltage | 1000V |
DC Rated Current | 30A (for 4mm² cable) |
Contact Material | Tinned Copper |
Insulation Material | PPO/PC (Polyphenylene Oxide/Polycarbonate) |
Contact Resistance | ≤0.5mΩ |
Protection Degree | IP67 (Waterproof & Dustproof) |
Ambient Temperature Range | -40°C to +90°C |
Upper Limit Temperature | 110°C |
Flame Class | UL94-V0 |
Suitable Cable Size | 2.5mm², 4mm², 6mm² (14AWG, 12AWG, 10AWG) |
Pull-out Force | ≥50N |
Insertion Force | ≤50N |
Insulation Resistance | >500MΩ |
Typical Dimensions (Male/Female Pair) | Approx. 59mm (length) x 18mm (diameter each) |
Weight (Per Pair) | Approx. 35 grams |
Certifications | TUV, CE (standard for MC4 type connectors) |
Description
Leader MC4 Solar Panel Connector For Solar System
Key Features & Benefits:
- High Voltage Rating: Supports up to 1000V, ideal for large solar arrays.
- Robust Current Capacity: Handles 30A on 4mm² cable, ensuring efficient power transfer.
- Low Contact Resistance: ≤0.5mΩ contact resistance minimizes energy loss.
- Durable Contact Material: Tinned copper contacts resist corrosion for long life.
- Weatherproof Design: IP67 rating guarantees protection against water and dust.
- Wide Temperature Range: Operates from -40°C to +90°C, suitable for extreme climates.
- High Flame Resistance: UL94-V0 flame class ensures safety in fire-prone environments.
- Versatile Cable Compatibility: Fits 2.5mm², 4mm², 6mm² cables (14AWG, 12AWG, 10AWG).
- Strong Mechanical Strength: Pull-out force ≥50N and insertion force ≤50N for secure connections.
- Excellent Insulation: Insulation resistance >500MΩ protects against short circuits.
Ideal For:
- Residential solar installations
- Commercial rooftop solar projects
- Off-grid solar systems
- Solar farms and large-scale arrays
- DIY solar enthusiasts
- Renewable energy contractors
- Solar panel maintenance teams
Summary:
The Leader MC4 Solar Panel Connector is engineered for high-performance solar systems, offering a 1000V rating and 30A current capacity. Its IP67 waterproofing, UL94-V0 flame class, and wide temperature tolerance make it reliable in harsh environments. Ideal for residential, commercial, and off-grid solar installations, this connector is available at Revolution Technology BD.
