LifeSmart CUBE Switch Module (1way & 2way)
Contact us for pricing
Product Details
The most compact smart switch module
ever
Update a traditional switch to a smart
one
Strong compatibility to different switch
size
Product Description

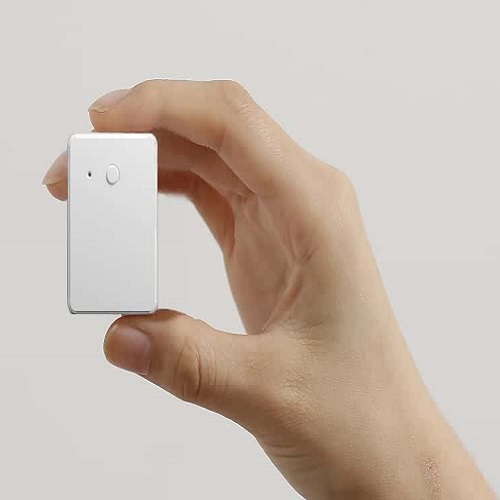

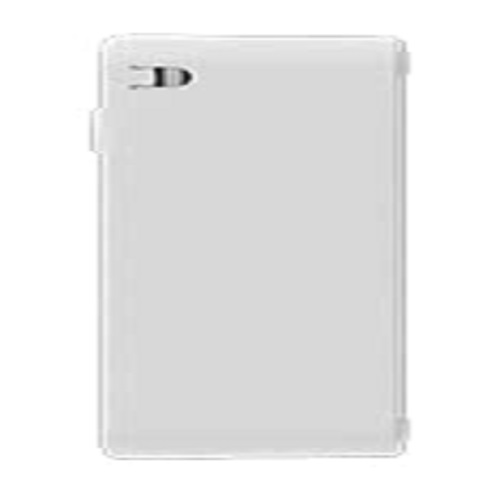

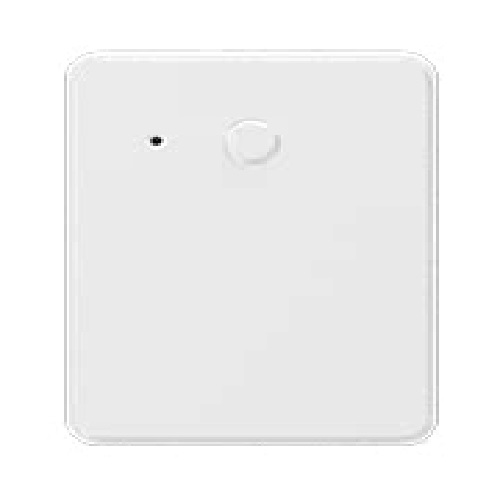

LifeSmart CUBE Switch Module is in extremely small size and very easy to install. It is suitable for 80, 86, 120 and many other panels of different specifications. It can easily upgrade traditional switches to intelligent ones.
Specification
|
Model Number |
LS176(1 way)
/ LS177(2 way) |
|
Wiring |
Live+neutral |
|
Control Unit |
8A magnetic
latching relay |
|
Operating
Temperature |
-5~45°C |
|
Operating
Humidity |
5~90% |
|
Power Supply |
AC 100-240V
50/60Hz |
|
Static
Consumption |
<0.3W |
|
Maximum
Overload |
Resistive
load: 300W per way Inductive/Capacitive
load: 150W per way |
|
Indicator |
LED |
|
Button |
Pairing button |
|
Radio
Protocol |
CoSS |
|
Signal
Range(Open Field) |
100m |
|
Color |
Ivory white |
|
Dimension |
42*32*16mm |
|
Weight |
20g(1 way) /
25g(2 way) |
|
Casing |
Flameresistant
PC |
