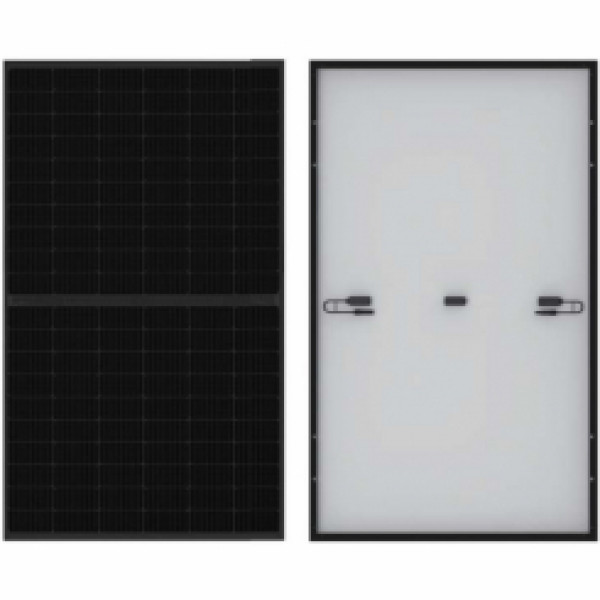

LONGi 350W Half-Cut Mono Solar Panel
Contact us for pricing
Product Details
Key Features
High Power Output: Delivers 350W maximum power for efficient energy generation.
Reliable Power Tolerance: Power tolerance of 0 ~ +5W ensures consistent performance.
Excellent Efficiency: 19.2% module efficiency maximizes energy capture.
Robust Voltage Range: Open circuit voltage of 37.7V and Vmp of 34.4V suit diverse systems.
Strong Current Handling: Short circuit current of 11.16A and Imp of 10.18A support high current loads.
Compact Dimensions: Size of 1755 × 1038 × 35 mm fits tight installations.
Lightweight Design: Weight of 19.5 kg simplifies mounting and transport.
High System Compatibility: Supports up to 1000V DC and 20A series fuse rating.
Wide Temperature Range: Operates from -40°C to +85°C for extreme climates.
Durable Mechanical Load: Handles 5400 Pa front and 2400 Pa rear mechanical loads.
Half-Cut Technology: Reduces series resistance and improves performance.
Monocrystalline Quality: Mono solar cells provide superior power density.
Model | LR4-60HPB-350M |
Rated Maximum Power (Pmax) | 350W |
Power Tolerance | 0 ~ +5W |
Module Efficiency | 19.2% |
Open Circuit Voltage (Voc) | 37.7V |
Short Circuit Current (Isc) | 11.16A |
Voltage at Maximum Power (Vmp) | 34.4V |
Current at Maximum Power (Imp) | 10.18A |
Dimensions | 1755 × 1038 × 35 mm |
Weight | 19.5 kg |
Maximum System Voltage | 1000V DC |
Maximum Series Fuse Rating | 20A |
Operating Temperature | -40°C ~ +85°C |
Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
Description
LONGi 350W Half-Cut Mono Solar Panel
Key Features & Benefits:
- High Power Output: Delivers 350W maximum power for efficient energy generation.
- Reliable Power Tolerance: Power tolerance of 0 ~ +5W ensures consistent performance.
- Excellent Efficiency: 19.2% module efficiency maximizes energy capture.
- Robust Voltage Range: Open circuit voltage of 37.7V and Vmp of 34.4V suit diverse systems.
- Strong Current Handling: Short circuit current of 11.16A and Imp of 10.18A support high current loads.
- Compact Dimensions: Size of 1755 × 1038 × 35 mm fits tight installations.
- Lightweight Design: Weight of 19.5 kg simplifies mounting and transport.
- High System Compatibility: Supports up to 1000V DC and 20A series fuse rating.
- Wide Temperature Range: Operates from -40°C to +85°C for extreme climates.
- Durable Mechanical Load: Handles 5400 Pa front and 2400 Pa rear mechanical loads.
- Half-Cut Technology: Reduces series resistance and improves performance.
- Monocrystalline Quality: Mono solar cells provide superior power density.
Ideal For:
- Residential rooftop installations
- Commercial solar farms
- Off-grid rural electrification
- Hybrid solar-plus-battery systems
- Industrial energy savings
- Agricultural greenhouses
- Solar-powered water pumping systems
Summary:
The LONGi 350W Half-Cut Mono Solar Panel delivers high power output with a 19.2% efficiency rating, making it ideal for both residential and commercial solar projects. Its robust specifications—350W Pmax, 37.7V Voc, 11.16A Isc, and a wide operating temperature range—ensure reliable performance in diverse climates. Lightweight and compact, it is easy to install on rooftops or ground mounts. Available at Revolution Technology BD, this panel is a top choice for efficient, durable solar solutions.
