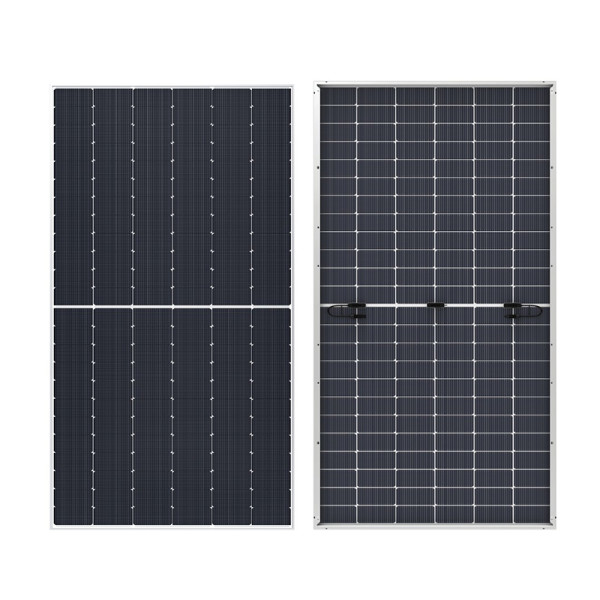

LONGi 750W Bifacial Solar Panel
Contact us for pricing
Product Details
Key Features
High Power Output: Delivers 750W maximum power under standard test conditions, making it ideal for high-efficiency installations.
Bifacial Design: Dual glass construction captures sunlight from both sides, increasing energy yield.
Durable Junction Box: IP68 rated with three diodes ensures protection against dust and water ingress.
Customizable Cable Length: Output cable length can be tailored up to ±1400mm for flexible mounting solutions.
Robust Frame: Anodized aluminum alloy frame provides structural integrity and corrosion resistance.
Wide Temperature Range: Operates efficiently from -40°C to +85°C, suitable for diverse climates.
High Efficiency: Module efficiency of 24.14% maximizes power generation per square meter.
Low Power Output Tolerance: Power output tolerance of 0 ~ 3% guarantees consistent performance.
High System Voltage Compatibility: Supports up to 1500V DC, aligning with IEC standards for large-scale systems.
Mechanical Load Resistance: Front side static loading up to 5400Pa and rear side up to 2400Pa withstands harsh conditions.
Hailstone Resistance: Withstands 25mm hailstones at 23m/s, ensuring durability in severe weather.
Temperature Coefficients: Optimized coefficients for Isc, Voc, and Pmax maintain performance across temperature variations.
Cell Orientation | 132 (6×22) |
Junction Box | IP68, three diodes |
Output Cable | 4mm², +400, -200mm/s±1400mm (length can be customized) |
Glass | Dual glass, 2.0×2.0mm semi-tempered glass |
Frame | Anodized aluminum alloy frame |
Weight | 38.3 kg |
Dimensions (L × W × H) | 2384 × 1303 × 33 mm |
Packaging | 33 pcs per pallet / 594 pcs per 40’HCT |
Tolerance Length | ±2mm |
Tolerance Width | ±2mm |
Testing Condition AM1.5 1000W/m² 25°C (STC) | AM1.5 800W/m² 20°C 1m/s (NOCT) |
Test Uncertainty for Pmax | ±3% |
Maximum Power (Pmax) – STC | 750W |
Maximum Power (Pmax) – NOCT | 570.0W |
Open Circuit Voltage (Voc) – STC | 49.72V |
Open Circuit Voltage (Voc) – NOCT | 47.23V |
Short Circuit Current (Isc) – STC | 19.12A |
Short Circuit Current (Isc) – NOCT | 15.30A |
Voltage at Maximum Power (Vmp) – STC | 40.98V |
Voltage at Maximum Power (Vmp) – NOCT | 38.93V |
Current at Maximum Power (Imp) – STC | 18.30A |
Current at Maximum Power (Imp) – NOCT | 14.64A |
Module Efficiency | 24.14% |
Operating Temperature | -40°C ~ +85°C |
Power Output Tolerance | 0 ~ 3% |
Maximum System Voltage | DC1500V (IEC) |
Maximum Series Fuse Rating | 35 |
Nominal Operating Cell Temperature (NOCT) | 45±2°C |
Protection Class | Class I |
Fire Rating | IEC Class C |
Mechanical Loading Front Side Maximum Static Loading | 5400Pa |
Mechanical Loading Rear Side Maximum Static Loading | 2400Pa |
Hailstone Test | 25mm hailstone at the speed of 23m/s |
Temperature Coefficient of Isc | +0.050%/°C |
Temperature Coefficient of Voc | -0.200%/°C |
Temperature Coefficient of Pmax | -0.260%/°C |
Description
LONGi 750W Bifacial Solar Panel
Key Features & Benefits:
- High Power Output: Delivers 750W maximum power under standard test conditions, making it ideal for high-efficiency installations.
- Bifacial Design: Dual glass construction captures sunlight from both sides, increasing energy yield.
- Durable Junction Box: IP68 rated with three diodes ensures protection against dust and water ingress.
- Customizable Cable Length: Output cable length can be tailored up to ±1400mm for flexible mounting solutions.
- Robust Frame: Anodized aluminum alloy frame provides structural integrity and corrosion resistance.
- Wide Temperature Range: Operates efficiently from -40°C to +85°C, suitable for diverse climates.
- High Efficiency: Module efficiency of 24.14% maximizes power generation per square meter.
- Low Power Output Tolerance: Power output tolerance of 0 ~ 3% guarantees consistent performance.
- High System Voltage Compatibility: Supports up to 1500V DC, aligning with IEC standards for large-scale systems.
- Mechanical Load Resistance: Front side static loading up to 5400Pa and rear side up to 2400Pa withstands harsh conditions.
- Hailstone Resistance: Withstands 25mm hailstones at 23m/s, ensuring durability in severe weather.
- Temperature Coefficients: Optimized coefficients for Isc, Voc, and Pmax maintain performance across temperature variations.
Ideal For:
- Large commercial solar farms
- Residential rooftop installations
- Off-grid renewable energy systems
- Agricultural solar power projects
- Industrial power backup solutions
- Solar-powered water pumping stations
- Renewable energy research and development
Summary:
The LONGi 750W Bifacial Solar Panel from Revolution Technology BD offers a powerful 750W output under STC and 570W at NOCT, with a high efficiency of 24.14%. Its bifacial design, IP68 junction box, and customizable cable length provide versatility and durability for a wide range of applications. Ideal for commercial farms, residential rooftops, and off-grid systems, this panel delivers reliable performance across extreme temperatures and harsh weather conditions. Available now at Revolution Technology BD for customers seeking cutting-edge solar technology.
