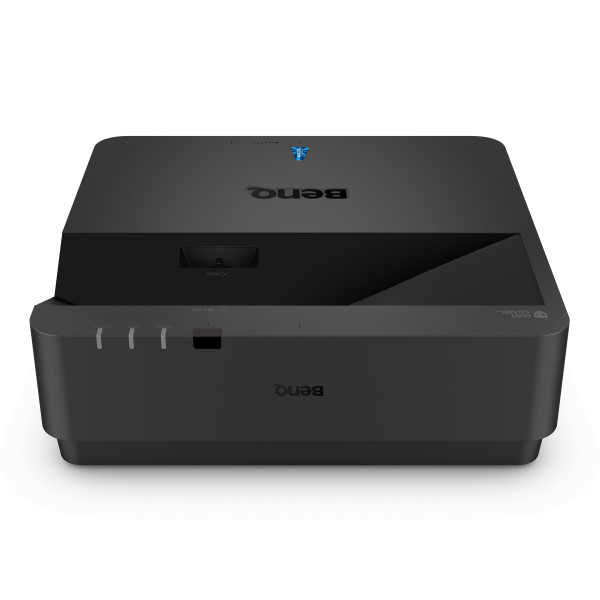

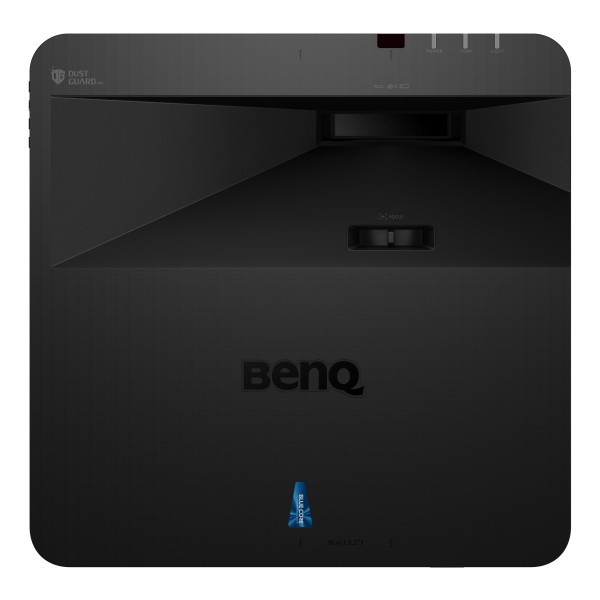

LU960UST 5200lms WUXGA Short Throw Simulation Projector
Contact us for pricing
Product Details
Key Features
Ultra Brightness: 5200 ANSI lumens delivers crystal‑clear images even in well‑lit classrooms.
High Resolution: WUXGA 1920x1200 resolution offers sharp detail for presentations and simulations.
Exceptional Contrast: 3,000,000:1 FOFO contrast ratio ensures deep blacks and vivid colors.
Laser Light Source: Laser optics provide 20,000 normal hours, 38,000 ECO hours, and 70,000 dimming hours of longevity.
Short‑Throw Capability: 0.25 optical throw ratio lets you project a 480‑inch image from just a few feet.
Wide Keystone Adjustment: ±30° vertical and horizontal keystone correction for flexible placement.
Low Input Lag: 8.3 ms lag at 1080p 120Hz supports smooth gaming and interactive simulations.
Comprehensive Connectivity: Multiple HDMI, DisplayPort, USB, RS232, and LAN ports for versatile setups.
HDR & DICOM Support: HDR10, HLG, and DICOM SIM modes cater to medical and high‑dynamic‑range content.
Eco‑Friendly Power: AC 100‑240V with <0.5W standby saves energy while maintaining performance.
Robust Build: Operating temperature 0‑40°C and 12 kg weight make it suitable for commercial installations.
Easy Installation: Universal ceiling mount and included remote control simplify deployment.
DisplayBrightness (ANSI lumens) | 5200 |
Resolution | WUXGA (1920x1200) |
Native Aspect Ratio | 16:10 |
Contrast Ratio (FOFO) | 3,000,000:1 |
Display Color | 30-bit (1.07 billion colors) |
Light Source | Laser |
Light Source Life a. Normal | 20000 hrs |
Light Source Life b. ECO | 38000 hrs |
Light Source Life d. Dimming | 70000 hrs |
OpticalThrow Ratio | 0.25 |
Zoom Ratio | FixedLens |
F/# = 2.0,f = 2.44 mm | |
Projection Offset (Full-Height) | 122% |
Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees | |
PictureRec. 709 Coverage | 92% |
Picture Modes | 3D, Bright, DICOM SIM, HDR10, HLG, Presentation, Simulator, sRGB, User 1, User 2, Video |
Input Lag | 8.3 ms (1080P 120Hz) |
Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
Horizontal Frequency | 15K~135KHz |
Vertical Scan Rate | 23~120Hz |
I/O Interface PC in (D-sub 15pin)(x1) | |
PC in-1Monitor out (D-sub 15pin)(x1) | |
HDMI in(x2) | HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2) |
Monitor out (HDMI)(x1) | |
Display Port(x1) | |
LAN (RJ45)(x1) | |
HDBaseT (RJ45)(x1) | |
Control/Video/Audio3D Sync in(x1) | |
3D Sync out(x1) | |
USB Type A(x1) | |
USB Type A-1 (2.0/Power Supply1.5A) | |
USB Type Mini B(x1) | |
USB Type Mini B-1(service) | |
RS232 in (DB-9pin)(x1) | |
Wired Remote in (3.5mm Mini Jack)(x1) | |
DC 12V Trigger (3.5mm Jack)(x1) | |
AudioSpeaker(x1), 10W | |
Audio in (3.5mm Mini Jack)(x1) | |
Audio out (3.5mm Mini Jack)(x1) | |
EnvironmentOperating Temperature | 0~40℃ |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption (110V) | 450W |
Stand-by Power Consumption | <0.5W |
Network Stand-by Power Consumption | <2W |
AccessoriesRemote Control w/ BatteryRCA024 |
Description
LU960UST 5200lms WUXGA Short Throw Simulation Projector
Key Features & Benefits:
- Ultra Brightness: 5200 ANSI lumens delivers crystal‑clear images even in well‑lit classrooms.
- High Resolution: WUXGA 1920x1200 resolution offers sharp detail for presentations and simulations.
- Exceptional Contrast: 3,000,000:1 FOFO contrast ratio ensures deep blacks and vivid colors.
- Laser Light Source: Laser optics provide 20,000 normal hours, 38,000 ECO hours, and 70,000 dimming hours of longevity.
- Short‑Throw Capability: 0.25 optical throw ratio lets you project a 480‑inch image from just a few feet.
- Wide Keystone Adjustment: ±30° vertical and horizontal keystone correction for flexible placement.
- Low Input Lag: 8.3 ms lag at 1080p 120Hz supports smooth gaming and interactive simulations.
- Comprehensive Connectivity: Multiple HDMI, DisplayPort, USB, RS232, and LAN ports for versatile setups.
- HDR & DICOM Support: HDR10, HLG, and DICOM SIM modes cater to medical and high‑dynamic‑range content.
- Eco‑Friendly Power: AC 100‑240V with <0.5W standby saves energy while maintaining performance.
- Robust Build: Operating temperature 0‑40°C and 12 kg weight make it suitable for commercial installations.
- Easy Installation: Universal ceiling mount and included remote control simplify deployment.
Ideal For:
- Corporate training rooms
- University lecture halls
- Medical simulation centers
- High‑end gaming lounges
- Digital signage in malls
- Conference rooms
- Virtual reality training facilities
Summary:
The LU960UST 5200lms WUXGA Short Throw Simulation Projector offers 5200 ANSI lumens, 1920x1200 resolution, and a 3,000,000:1 contrast ratio for vivid, sharp images. Its laser light source delivers up to 70,000 hours of life, while the 0.25 optical throw allows a 480‑inch image from a short distance. Ideal for classrooms, medical simulations, and high‑end gaming, this projector is available at Revolution Technology BD with full support and accessories.
