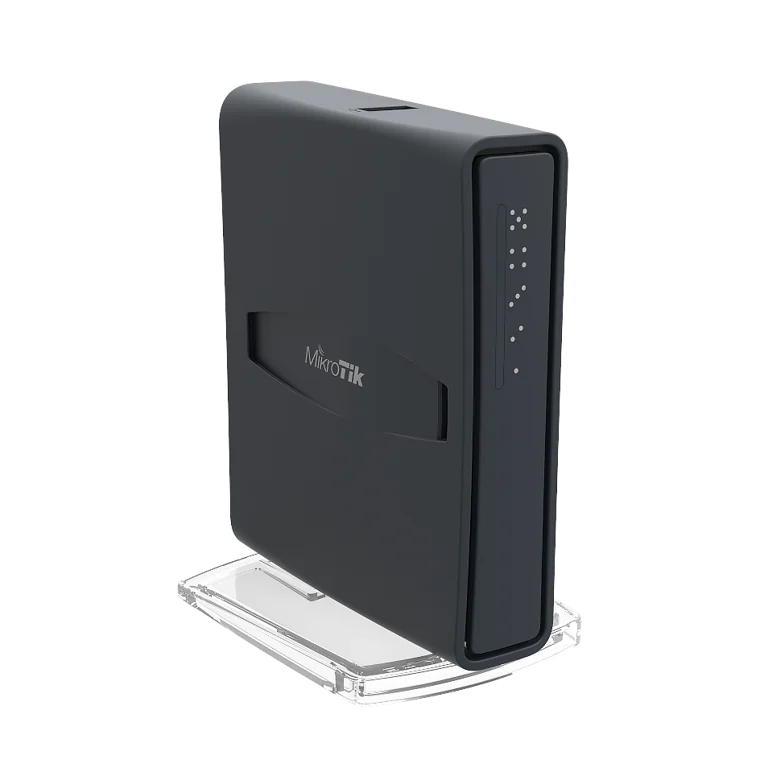

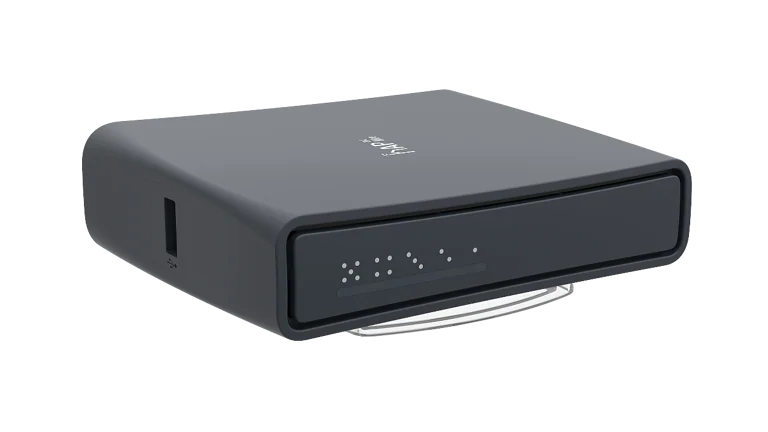

MikroTik RouterBOARD RB952Ui-5ac2nD-TC (hAP ac lite TC) Dual-band wireless Access Point
Contact us for pricing
Product Details
Key Features
Dual-band wireless Access Point: The MikroTik RouterBOARD RB952Ui-5ac2nD-TC is a dual-band wireless Access Point that supports both 2.4 GHz and 5 GHz frequencies.
High-speed wireless connectivity: With a maximum data rate of 433 Mbit/s on the 5 GHz frequency and 300 Mbit/s on the 2.4 GHz frequency, this Access Point provides high-speed wireless connectivity for your devices.
Compact and energy-efficient design: The RB952Ui-5ac2nD-TC has a compact design that measures 34 x 119 x 98mm and consumes only 8 W of power when not in use.
Supports multiple operating systems: This Access Point supports RouterOS, an operating system designed for routers and wireless devices.
PoE support for easy installation: The RB952Ui-5ac2nD-TC supports Passive PoE, making it easy to install and set up without the need for a separate power source.

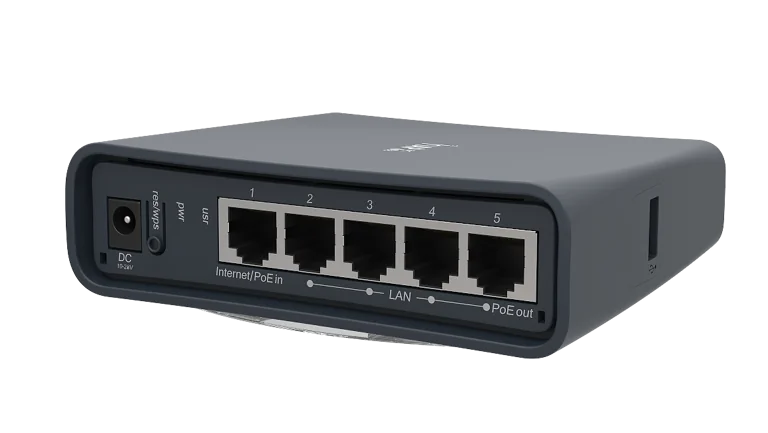

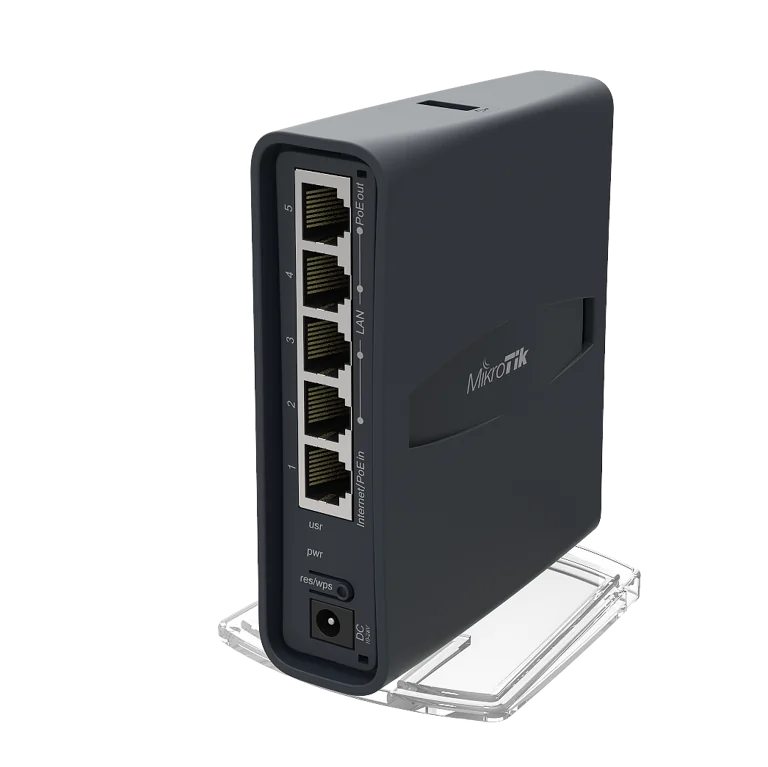

Multiple Ethernet ports for connectivity: This Access Point has 5 10/100 Ethernet ports, providing multiple options for connecting your devices to the network.
USB port for additional functionality: The RB952Ui-5ac2nD-TC has a single USB port that can be used for additional functionality, such as connecting a USB drive or a printer.
Compact size for easy placement: The compact size of the RB952Ui-5ac2nD-TC makes it easy to place in any location, whether it's on a wall or on a desk.
High-quality wireless chipsets: This Access Point uses high-quality wireless chipsets from QCA9531 and QCA9887, providing reliable and fast wireless connectivity.
Supports multiple wireless standards: The RB952Ui-5ac2nD-TC supports multiple wireless standards, including 802.11b/g/n and 802.11a/n/ac, making it compatible with a wide range of devices.
Long-lasting performance: The RB952Ui-5ac2nD-TC has a long-lasting performance with an MTBF of approximately 100,000 hours at 25°C, making it a reliable choice for your wireless network.
Wide operating temperature range: This Access Point can operate in a wide temperature range of -30°C to 70°C, making it suitable for use in various environments.
Product code | RB952Ui-5ac2nD-TC |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Switch chip model | QCA9531 |
Dimensions | 34 x 119 x 98mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -30°C to 70°C |
Wireless capabilities | Wireless 2.4 GHz and Wireless 5 GHz |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz Number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 1.5 |
Wireless 2.4 GHz chip model | QCA9531 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 433 Mbit/s |
Wireless 5 GHz Number of chains | 1 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2 |
Wireless 5 GHz chip model | QCA9887 |
Wireless 5 GHz generation | Wi-Fi 5 |
WiFi speed | AC750 |
Ethernet | 10/100 Ethernet ports, 5 |
Peripherals | Number of USB ports, 1 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Powering | Number of DC inputs, 2 |
Number of DC inputs | 2 |
DC jack input Voltage | 10-28 V |
Max power consumption | 20 W |
Max power consumption without attachments | 8 W |
PoE in | Passive PoE |
PoE in input Voltage | 10-28 V |
PoE-out | Passive PoE |
PoE-out ports | Ether5 |
Low voltage PoE-Out current limit | 500 mA |
Max total out (A) | 500 mA |
Certification & Approvals | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
Description
MikroTik RouterBOARD RB952Ui-5ac2nD-TC (hAP ac lite TC) Dual-band wireless Access Point
Key Features & Benefits:
- Dual-band wireless Access Point: The MikroTik RouterBOARD RB952Ui-5ac2nD-TC is a dual-band wireless Access Point that supports both 2.4 GHz and 5 GHz frequencies.
- High-speed wireless connectivity: With a maximum data rate of 433 Mbit/s on the 5 GHz frequency and 300 Mbit/s on the 2.4 GHz frequency, this Access Point provides high-speed wireless connectivity for your devices.
- Compact and energy-efficient design: The RB952Ui-5ac2nD-TC has a compact design that measures 34 x 119 x 98mm and consumes only 8 W of power when not in use.
- Supports multiple operating systems: This Access Point supports RouterOS, an operating system designed for routers and wireless devices.
- PoE support for easy installation: The RB952Ui-5ac2nD-TC supports Passive PoE, making it easy to install and set up without the need for a separate power source.
- Multiple Ethernet ports for connectivity: This Access Point has 5 10/100 Ethernet ports, providing multiple options for connecting your devices to the network.
- USB port for additional functionality: The RB952Ui-5ac2nD-TC has a single USB port that can be used for additional functionality, such as connecting a USB drive or a printer.
- Compact size for easy placement: The compact size of the RB952Ui-5ac2nD-TC makes it easy to place in any location, whether it's on a wall or on a desk.
- High-quality wireless chipsets: This Access Point uses high-quality wireless chipsets from QCA9531 and QCA9887, providing reliable and fast wireless connectivity.
- Supports multiple wireless standards: The RB952Ui-5ac2nD-TC supports multiple wireless standards, including 802.11b/g/n and 802.11a/n/ac, making it compatible with a wide range of devices.
- Long-lasting performance: The RB952Ui-5ac2nD-TC has a long-lasting performance with an MTBF of approximately 100,000 hours at 25°C, making it a reliable choice for your wireless network.
- Wide operating temperature range: This Access Point can operate in a wide temperature range of -30°C to 70°C, making it suitable for use in various environments.
Ideal For:
- Home users who want a reliable and fast wireless network
- Small business owners who need a secure and efficient wireless solution
- Gaming enthusiasts who require a low-latency wireless connection
- Online streamers who need a stable and high-speed wireless network
- Anyone who wants a compact and energy-efficient wireless Access Point
Summary:
The MikroTik RouterBOARD RB952Ui-5ac2nD-TC is a high-performance dual-band wireless Access Point designed for home and small business use. With its compact size, energy-efficient design, and high-speed wireless connectivity, this Access Point is perfect for anyone who needs a reliable and fast wireless network. Available at Revolution Technology BD, this Access Point supports multiple operating systems, has multiple Ethernet ports, and a USB port for additional functionality. Order now and experience the benefits of a high-quality wireless network.
