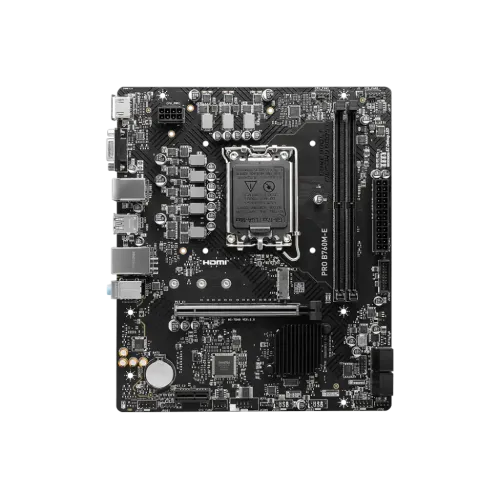

MSI PRO B760M-E DDR5 m-ATX Motherboard
Exclusive of all taxes
Product Details
Model: B760M-E
Supported CPU: 14th/13th/12th Gen Intel
Processors (LGA1700)
Supported RAM: 2x DDR5, Maximum Memory
Capacity 96GB
Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN
Specification
|
Basic
Information |
|
|
Supported CPU |
Support Intel
Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron
Processors |
|
Chipset |
INTEL B760 |
|
Form Factor |
mATX |
|
Audio |
Realtek
ALC897 Codec |
|
Expansion
Slots |
|
|
PCI |
1x PCI-E x16
slot |
|
M.2 Socket |
1x M.2 |
|
Memory |
|
|
Type |
DDR5 |
|
Slots |
2x DIMM |
|
Supported
Memory |
Memory
Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/
5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
|
Maximum
Memory |
96GB |
|

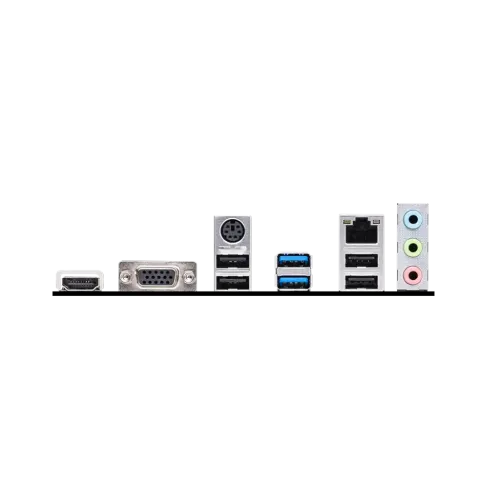

Graphics |
|
|
Graphics |
1x HDMI |
|
Connector
& Ports |
|
|
HDMI |
1x HDMI 1.4 |
|
USB (s) |
4x USB 2.0
(Rear) |
|
LAN Port (s) |
Realtek
RTL8111H Gigabit LAN |
|
Supported
Storage |
1x M.2 |
|
RAID |
Supports RAID
0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
Internal I/O
Ports |
1x Power
Connector(ATX_PWR) |
|
TPM (Trusted
Platform Module ) |
1x TPM pin
header(Support TPM 2.0) |
|
Others |
|
|
Special
Features |
1x RGB LED
connector(JRGB) |
|
Warranty
Information |
|
|
Manufacturing
Warranty |
3 years |
