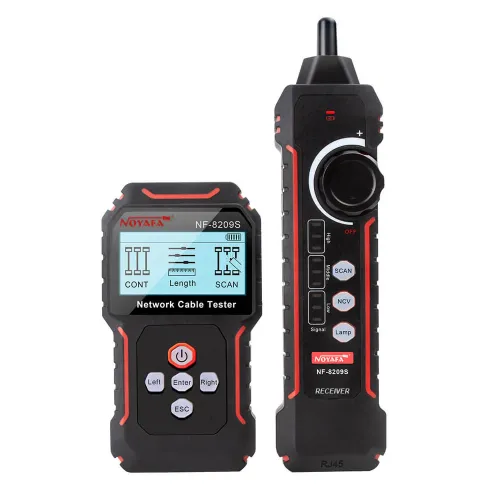

Noyafa NF-8209S Advanced Network Cable Tracker

Description

Noyafa NF-8209S Advanced Network Cable Tracker

The Noyafa NF-8209S Advanced Network Cable Tracker is a flexible and effective tool for network technicians and IT professionals. The NF-8209S enables wire mapping for CAT5 and CAT6 cables, allowing users to test cable sequences and identify common defects like as open circuits, short circuits, and cross-wiring. This NF-8209S Network Cable Tracker is compatible with both STP and UTP cables, and it has a maximum testing range of 600 meters (1,968 feet), making it perfect for large-scale installations. Its QC test produces fast findings, with a reaction time of less than a second and a minimum recognition distance of 10cm (3 inches). The NF-8209S accurately measures wire lengths from 2.5 to 200 meters (8 to 656 feet). The scan feature functions in both analog and digital modes, with a frequency of 455KHz, and is capable of detecting CAT5 and CAT6 cables. The PoE (Power over Ethernet) feature evaluates voltage ranges from DC 5-60V and supports both standard and non-standard PSE types, including IEEE802.3at/af, making it ideal for a wide range of network configurations. The NF-8209S also supports full and half-duplex recognition, as well as auto-negotiation for 10/100/1000M switches. Its transmitter has a 180x64 LCD display with backlight that supports both Chinese and English, and it is powered by a 3.7V 1400mAh lithium battery with low battery indicator and auto-off functions. The receiver is equally durable, with configurable scan strength, voltage protection, and an NCV (non-contact voltage) capability that detects AC voltages ranging from 70V to 1000V. This tool is intended for usage in a variety of working contexts and includes voice prompts, LED indications, and a headphone connector for convenience. The transmitter and receiver are both tiny and portable, measuring 125x70x32mm and 198x50x30mm, respectively, making them perfect for on-the-go troubleshooting and network maintenance
