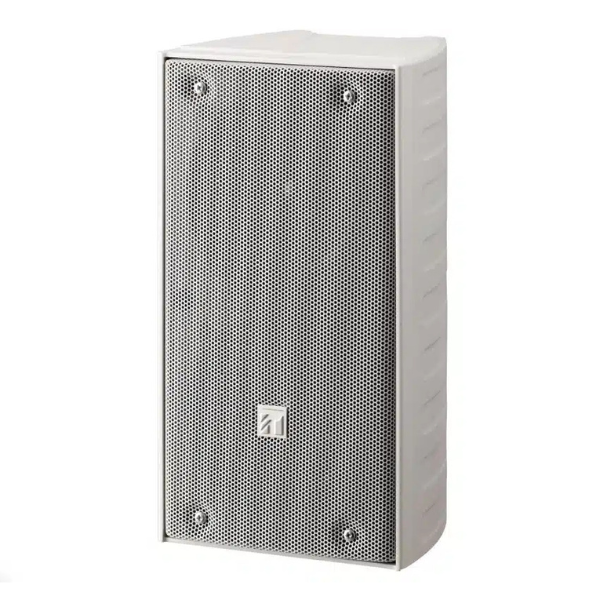

TOA TZ-206B 20Watts Column Speaker System

Enclosure

Sealed Type

Rated Input

20 W

Rated Impedance (100 V line)

500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W), 4 kΩ (2.5 W)

Rated Impedance (70 V line)

500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 4 kΩ (1.3 W)

Sensitivity

90 dB (1 W, 1 m)

Frequency Response

150 Hz – 16,000 Hz

Speaker Component

10 cm cone-type × 2

Input Terminal

Push-In terminal

Finish (Enclosure)

HIPS, black, paint

Finish (Punched Net)

Surface-tread steel plate, black, paint

Finish (Speaker Bracket)

Aluminum die-cast, black, paint

Finish (Joint/Wall Bracket)

Steel plate, t1.6, black, paint

Dimensions (W x H x D)

135 × 250 × 128 mm

Weight

1.9 kg (unit only)

Accessory

Speaker Bracket x1, Joint Bracket x1, Wall Bracket x1, Fixing Bolt (M5 x 60) x1, Hexagon Bolt (M6 x 12) (with washers) x2, Machine Screw (M5 x 20) (with washers) x2, Hexagon Bolt (M8x 15) x1

Option

Speaker Stand: ST-16A
