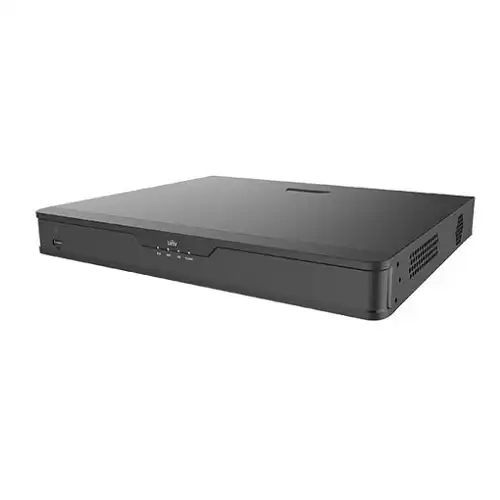

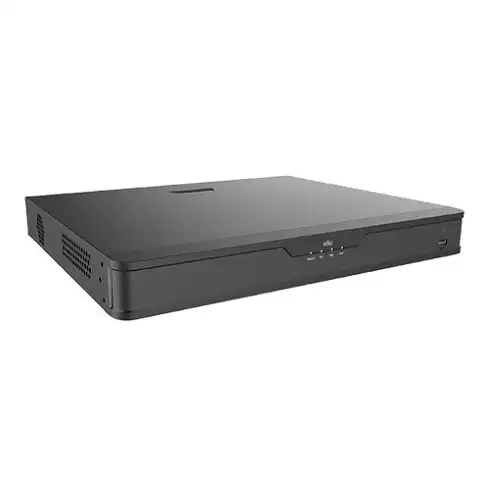

Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR

Genuine Product Fast Delivery Easy Returns

Specification

Operating System	Linux system
IP Camera Input	32 Channel
Two-Way Talk	1 Channel, RCA
Interface	HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
Resolution	8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Decoding Capacity	2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Resolution	8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Video Detection	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Alarm Input	N/A
Sync Playback	32 Channel
Third Party Support	ONVIF conformance: Profile S, Profile G, Profile T
Interface	2 RJ45
Ethernet Port	10M/100M/1000M self-adaptive Ethernet Interfaces
Maximum User Access	Remote Users: 128
Internal HDD	2 SATA interface
HDD Mode	Up to 10TB for each HDD
USB	Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
RS232	N/A
RS485	N/A
Power Supply	12V DC
Power Consumption	≤ 15W (without HDD)
Operational Conditions	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions	380mm × 315mm ×53mm (15.0" × 12.4" ×2.1" )
Net Weight	≤ 2.48 Kg (5.47 lb)
Manufacturing Warranty	1 Year Warranty

Description

Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR

A Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR supports 8MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 960H/ 720p/ D1/ 2CIF/ CIF Live view. And real-time Playback resolution with Ultra 265/ H.265/ H.264 format. This IP Camera has 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1 video decoding Capability. The Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR featured 4 Channel snapshot capability up to D1 resolution. And it has 1 RJ45 network interface with an incoming bandwidth 160Mbps and outgoing bandwidth 64Mbps. This Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR features TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP network protocols. This Uniview NVR has 32 Channel IP video input and 1 Channel, RCA Two-way Audio Input, and 3/4/5/7/9/10/12/16/32 screen corridor mode, 32 Channel synchronous playback.

Real-Time Streaming Protocol (RTSP)

The Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR supports Real Time Streaming Protocol (RTSP) and ONVIF conformance Profile S, Profile G, and Profile T of mainstream IP cameras. RTSP transfers your real-time from multimedia to endpoint device and allows users to play audio and video straight from the Internet.

Snapshot

Uniview NVR302-32S 32 Channel 4K 2 HDDs NVR has 4 Channel Event snapshot Up to D1 resolution. Also, this device has a Snapshot Abnormal Alert system.
