UNVIEW IPC2122LB-CL-P 2.0MP/4mm/40m IR BULLET IP CAMERA

Genuine Product Fast Delivery Easy Returns

Key Features

High‑Resolution 2MP Imaging: Delivers sharp 2.0 MP progressive scan video with 1080p at 30fps, ideal for detailed surveillance.

Wide Field of View: 87.5° horizontal, 46.3° vertical, 92.4° overall, covering large areas with a single camera.

Long‑Range IR Night Vision: Up to 40 m IR illumination at 850 nm, ensuring clear images in complete darkness.

Auto‑Switch IR‑Cut Filter: Automatically toggles between day and night modes for seamless color and infrared capture.

Pan/Tilt/Rotate Flexibility: 360° pan and rotate, 90° tilt, allowing full coverage without blind spots.

Advanced Video Compression: Supports H.265, H.264, and Ultra 265, reducing bandwidth while maintaining quality.

Smart Motion & Privacy Features: Up to 4 motion zones, 4 privacy masks, and 8 ROI zones for precise alerts.

Secure Network Connectivity: Supports IPv4, RTSP, ONVIF, HTTPS, TLS 1.2, and PoE for reliable, encrypted access.

Easy Web‑Based Configuration: No plug‑in required; view and adjust settings via Chrome, Firefox, or Edge browsers.

Durable IP67 Build: Weather‑proof and dust‑sealed, suitable for outdoor installations.

Specification

CameraSensor	1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.01Lux (F2.0, AGC ON), OLux with IR onDay/Night: IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1~1/100000s
Adjustment angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	>52dBWDR: DWDR
Lens Type	4.0mm @1.6, Fixed-focal
Lens Mount	M12
Angle of View (H)	87.5°
Angle of View (V)	46.3°
Angle of View (O)	92.4°
DORI Distance	Lens (mm): 4.0
Detect (m)	62.1
Observe (m)	24.8
Recognize (m)	12.4
Identify (m)	6.2
Illuminator IR Range	Up to 40m IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video Compression	Ultra 265, H.265, H.264
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate Main Stream	1080P (19201080), Max 30fps; 720P (1280720), Max 30fps
Sub Stream	D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps
Video Bit Rate	128 Kbps~6 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting	Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°
Dewarping	N/A
HLC	Supported
BLC	Supported
Defog	Digital Defog
Network Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration	API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface Network	1 * RJ45 10M/100M Base-TX Ethernet
Certification	EMC:FCC: FCC Part 15Safety:CE: EN 60950-1UL: UL60950-1IEC 60950-1
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power consumption	Max 5.5W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (L × W × H)	161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
Weight	0.27kg (0.60lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Reset Button	N/A
Ingress Protection	IP67

Description

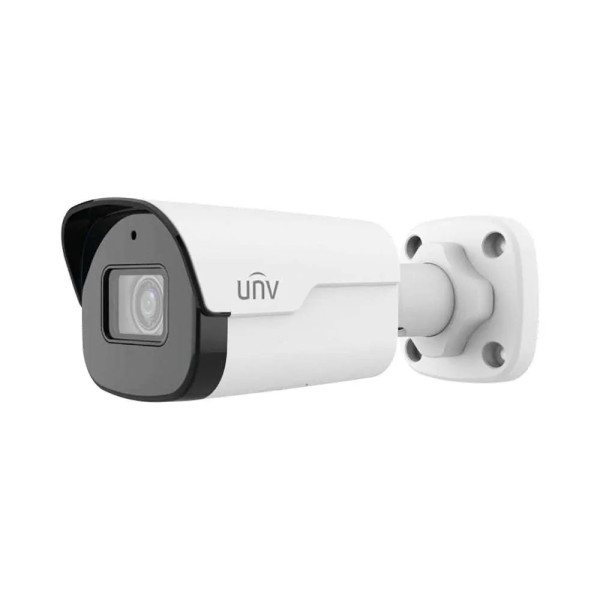

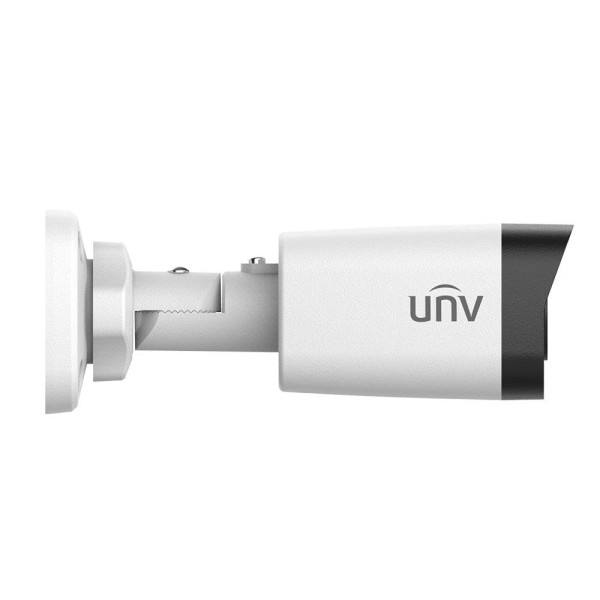

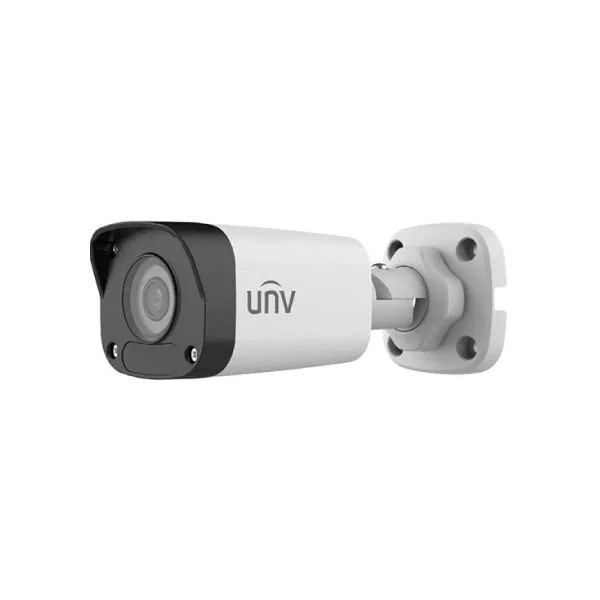

UNVIEW IPC2122LB-CL-P 2.0MP/4mm/40m IR BULLET IP CAMERA

Key Features & Benefits:

High‑Resolution 2MP Imaging: Delivers sharp 2.0 MP progressive scan video with 1080p at 30fps, ideal for detailed surveillance.
Wide Field of View: 87.5° horizontal, 46.3° vertical, 92.4° overall, covering large areas with a single camera.
Long‑Range IR Night Vision: Up to 40 m IR illumination at 850 nm, ensuring clear images in complete darkness.
Auto‑Switch IR‑Cut Filter: Automatically toggles between day and night modes for seamless color and infrared capture.
Pan/Tilt/Rotate Flexibility: 360° pan and rotate, 90° tilt, allowing full coverage without blind spots.
Advanced Video Compression: Supports H.265, H.264, and Ultra 265, reducing bandwidth while maintaining quality.
Smart Motion & Privacy Features: Up to 4 motion zones, 4 privacy masks, and 8 ROI zones for precise alerts.
Secure Network Connectivity: Supports IPv4, RTSP, ONVIF, HTTPS, TLS 1.2, and PoE for reliable, encrypted access.
Easy Web‑Based Configuration: No plug‑in required; view and adjust settings via Chrome, Firefox, or Edge browsers.
Durable IP67 Build: Weather‑proof and dust‑sealed, suitable for outdoor installations.

Ideal For:

Home security homeowners
Small business premises
Retail store monitoring
Warehouse surveillance
Event security personnel
Smart home integrators
Security system installers

Summary:

The UNVIEW IPC2122LB-CL-P is a 2 MP bullet camera designed for clear day‑and‑night surveillance with a 40 m IR range and 87.5° wide field of view. Its PoE power, H.265 compression, and IP67 rating make it ideal for outdoor and indoor security setups. Revolution Technology BD offers this robust camera with full web‑browser support and advanced motion‑detection features for professionals and homeowners alike.
