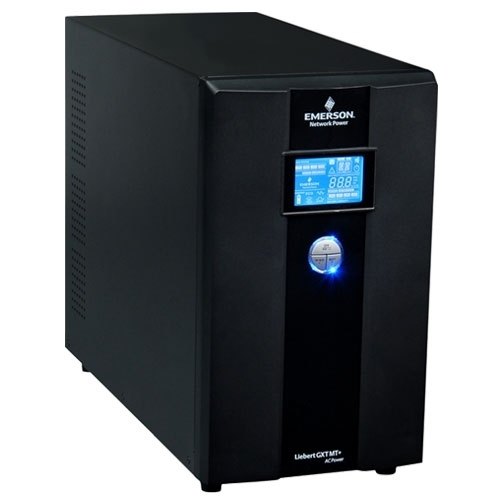

Vertiv Liebert GXT MT+CX 3KVA Standard Backup Online UPS
Exclusive of all taxes
Product Details
Key Features
High-performance and reliable uninterruptible power supply system: The Vertiv Liebert GXT MT+CX 3KVA Online UPS is a high-performance and reliable uninterruptible power supply system designed to safeguard mission-critical equipment from power disruptions.
Flexible input configuration: It features a flexible input configuration that supports 1 phase L-N + PE and operates efficiently across a wide nominal voltage range of 200V to 240V AC.
Excellent input power factor: Engineered for demanding environments, the GXT MT+CX 3KVA model delivers consistent power even at full load, maintaining an excellent input power factor of ≥0.99 at nominal voltage.
Stable and dependable power delivery: With a power output of 3000VA/2400W and a power factor of 0.8, this UPS ensures stable and dependable power delivery to sensitive electronics and infrastructure.
Clean power output: The UPS ensures clean power output with total harmonic distortion (THD) of less than 3% and output voltage regulation within 1%, making it ideal for use with servers, networking equipment, and other critical systems.
Compact design and IP20-rated construction: Its compact design (397x145x333 mm) and IP20-rated construction allow flexible deployment in various environments without compromising protection.
Built-in USB and RS232 ports: Communication and monitoring are simplified with built-in USB and RS232 ports, while compatibility with SNMP cards and UPS management software such as UPSilon 2000 offers enhanced remote monitoring and control capabilities.
Emergency Power Off (EPO) support: Emergency Power Off (EPO) support further enhances safety by enabling immediate shutdown during emergencies.
Robust protection and clean power: The Vertiv Liebert GXT MT+CX 3KVA Online UPS delivers robust protection, clean power, and intelligent management, making it a dependable choice for data centers, IT networks, and other sensitive infrastructure.
Long battery life: Maintenance-free sealed lead-acid batteries provide approximately ten to fifteen minutes of backup time under actual load conditions, giving you enough time to safely shut down systems or switch to alternative power sources during outages.
Efficient operation: The UPS operates efficiently with an efficiency (AC to AC) of 90%.
Wide operating temperature range: It operates in a wide temperature range of 0 °C to 50 °C (non-condensing) with an operating humidity range of 20% to 90% RH.
Low noise operation: The UPS operates at a low noise level of less than 50 dBA @ 1 meter (m).
Phase | 1 Phase-In/Phase-Out |
Capacity | 3000 VA/2700 W |
Input | Nominal Voltage 230 Vac |
Low line Transfer | 195 Vac/175 Vac/155 Vac/145 Vac ± 5 % (Ambient Temperature < 35 °C) |
Low line Comeback | Based on load percentage 100% to 80%; 80% to 70%; 70% to 60%; 60% to 0% |
High Line Transfer | 290 Vac ± 5% |
High Line Comeback | 290 Vac ± 5% |
Frequency Range | 40 Hz to 70 Hz |
Power Factor | ≥ 0.99 @ 100% load |
Output | Nominal Voltage 230 Vac |
Ac Voltage Regulation | ± 1% |
Synchronized Range | (47 Hz to 53 Hz) or (57 Hz to 63 Hz) |
Frequency Range | Battery Mode (50 Hz ± 0.25 Hz) or (60 Hz ± 0.3 Hz) |
Current Crest Ratio | 3 : 1 (maximum) |
Harmonic Distortion | ≤ 3 % THD (Linear Load), ≤ 6 % THD (Non-linear Load) |
Transfer time (inverter to Bypass) | 4 millisecond (ms) (Typical) |
Transfer time (Bypass to inverter) | Wave form Pure Sine Wave |
Efficiency (AC to AC) | 90% |
Battery | 12 V/9 Ah |
Numbers | 6 |
Recharge time | 4 hours recover to 90% capacity (Typical) |
Charging current | 1.0A |
Charging Voltage | 82.1 Vdc ± 1% |
Type | Depending on the capacity of external batteries |
Numbers | 6 |
Charging Current | 1.0 A/2.0 A/4.0 A/6.0 A (6.0 A by default) |
Float Charging Voltage | 82.1 Vdc ± 1% |
Indicators | LCD Panels UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions |
Alarm | Battery Mode Sounding every 4 seconds |
Low Battery | Sounding every second |
Overload | Sounding twice every second |
Fault | 20% to 90% RH @ 0 °C to 50 °C** (non-condensing) |
Physical | Standard Run Dimension (DxWxh) mm 421x190x318 |
Standard Run Weight | 27.6 |
Long Run Dimension | 391x145x220 |
Long Run Weight | 7.4 |
Environment | Operation humidity & Temperature 20% to 90% RH @ 0 °C to 50 °C** (non-condensing) |
Noise Level | Less than 50 dBA @ 1 meter (m) |
Management | Smart RS232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC |
Operational SNAP | Power management from SNMP manager and web browser |
Description
Vertiv Liebert GXT MT+CX 3KVA Standard Backup Online UPS
Key Features & Benefits:
- High-performance and reliable uninterruptible power supply system: The Vertiv Liebert GXT MT+CX 3KVA Online UPS is a high-performance and reliable uninterruptible power supply system designed to safeguard mission-critical equipment from power disruptions.
- Flexible input configuration: It features a flexible input configuration that supports 1 phase L-N + PE and operates efficiently across a wide nominal voltage range of 200V to 240V AC.
- Excellent input power factor: Engineered for demanding environments, the GXT MT+CX 3KVA model delivers consistent power even at full load, maintaining an excellent input power factor of ≥0.99 at nominal voltage.
- Stable and dependable power delivery: With a power output of 3000VA/2400W and a power factor of 0.8, this UPS ensures stable and dependable power delivery to sensitive electronics and infrastructure.
- Clean power output: The UPS ensures clean power output with total harmonic distortion (THD) of less than 3% and output voltage regulation within 1%, making it ideal for use with servers, networking equipment, and other critical systems.
- Compact design and IP20-rated construction: Its compact design (397x145x333 mm) and IP20-rated construction allow flexible deployment in various environments without compromising protection.
- Built-in USB and RS232 ports: Communication and monitoring are simplified with built-in USB and RS232 ports, while compatibility with SNMP cards and UPS management software such as UPSilon 2000 offers enhanced remote monitoring and control capabilities.
- Emergency Power Off (EPO) support: Emergency Power Off (EPO) support further enhances safety by enabling immediate shutdown during emergencies.
- Robust protection and clean power: The Vertiv Liebert GXT MT+CX 3KVA Online UPS delivers robust protection, clean power, and intelligent management, making it a dependable choice for data centers, IT networks, and other sensitive infrastructure.
- Long battery life: Maintenance-free sealed lead-acid batteries provide approximately ten to fifteen minutes of backup time under actual load conditions, giving you enough time to safely shut down systems or switch to alternative power sources during outages.
- Efficient operation: The UPS operates efficiently with an efficiency (AC to AC) of 90%.
- Wide operating temperature range: It operates in a wide temperature range of 0 °C to 50 °C (non-condensing) with an operating humidity range of 20% to 90% RH.
- Low noise operation: The UPS operates at a low noise level of less than 50 dBA @ 1 meter (m).
Ideal For:
- Data centers
- IT networks
- Server rooms
- Networking equipment
- Critical systems
- Sensitive electronics
- Infrastructure
- Industrial control systems
- Medical equipment
- Security systems
Summary:
The Vertiv Liebert GXT MT+CX 3KVA Online UPS is a high-performance and reliable uninterruptible power supply system designed to safeguard mission-critical equipment from power disruptions. It features a flexible input configuration, excellent input power factor, and stable and dependable power delivery. The UPS ensures clean power output with total harmonic distortion (THD) of less than 3% and output voltage regulation within 1%. It operates efficiently with an efficiency (AC to AC) of 90% and operates in a wide temperature range of 0 °C to 50 °C (non-condensing) with an operating humidity range of 20% to 90% RH. The UPS is ideal for data centers, IT networks, server rooms, networking equipment, critical systems, sensitive electronics, infrastructure, industrial control systems, medical equipment, and security systems. Available at Revolution Technology BD.
