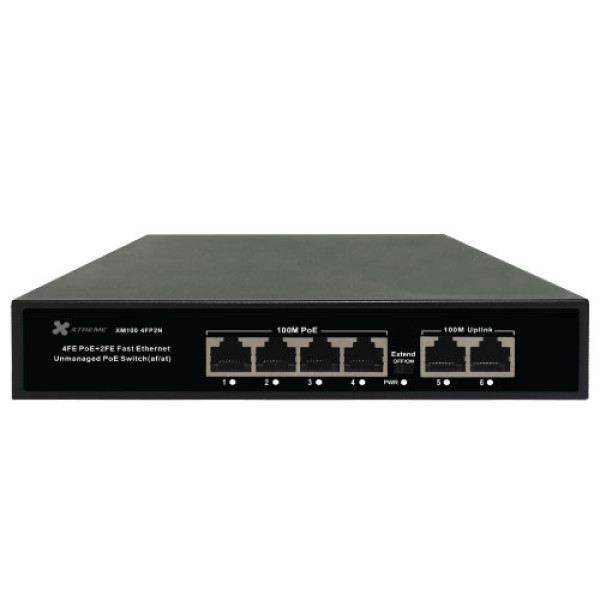

XTREME XM100-4FP2N Unmanaged 4 Port PoE 2 Port Uplink PoE Switch
Exclusive of all taxes
Product Details
Key Features
Compact Design: Measuring only 190mm × 125mm × 38mm and weighing 0.70 kg, the switch fits easily into tight rack spaces.
Robust PoE Capability: Delivers up to 30W per port (IEEE 802.3at) with a total PoE budget of 15.4W (af) for energy‑efficient devices.
High Switching Capacity: Offers 1.2 Gbps switching capacity, ensuring smooth traffic handling across all four ports.
Fast Packet Forwarding: Processes 14880 pps/port at 10 Mbps and 148800 pps/port at 100 Mbps, reducing latency for critical applications.
Flexible Uplink Options: Includes a dedicated 10/100 Mbps uplink port with up to 100 m reach on Cat5/5e/6 cable.
Extended Transmission Range: Supports 0‑250 m at 10 Mbps and 0‑100 m at 100 Mbps for both user and uplink ports.
Reliable Power Management: Features power priority mechanism and IEEE 802.3X full‑duplex support for stable PoE delivery.
Durable Build: MTBF exceeds 50,000 hours, providing long‑term reliability in demanding environments.
Clear Status Indicators: LEDs show PoE status and power activity, simplifying monitoring and troubleshooting.
Standard Compliance: Conforms to IEEE 802.3/802.3u, IEEE 802.3x and IEEE 802.ab, ensuring compatibility with a wide range of network devices.
Brand | Xtreme |
Model | X100-4FP2N |
MAC Table | 1K |
Packet Buffer Memory | 1Mbits |
Packet Forwarding Rate | 10Mbps: 14880pps/port, 100Mbps: 148800pps/port |
PoE Power (af) | 15.4W |
PoE Power (at) | 30W per port |
PoE Power Supply | 12+ ,36 – , 4 core power supply |
PoE Standard | IEEE 802.3af/at |
Port Function | Power priority mechanism, fast forwarding, MAC automatic learning and aging, IEEE802.3X full‑duplex, backpressure for half‑duplex |
Switching Capacity | 1.2Gbps |
Throughput | 0.8928Mpps |
Transmission Distance | 1‑4 Port: 100Mbps 0~100m, 10Mbps 0~250m; Uplink Port: 0~100m |
Transmission Medium | Cat5/5e/6 standard network cable |
LED Indicators | PoE status indicator, power indicator, extend |
MTBF | >50,000h |
PoE Ethernet Ports | 1‑4 Port: 10/100Mbps RJ45 |
Uplink Port | 10/100Mbps |
Network Standard | IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab |
Color | Black |
Dimensions (W x H x D) | 190mm x 125mm x 38mm |
Weight | 0.70 kg |
Warranty | 1-Year |
Description
XTREME XM100-4FP2N Unmanaged 4 Port PoE 2 Port Uplink PoE Switch
Key Features & Benefits:
- Compact Design: Measuring only 190mm × 125mm × 38mm and weighing 0.70 kg, the switch fits easily into tight rack spaces.
- Robust PoE Capability: Delivers up to 30W per port (IEEE 802.3at) with a total PoE budget of 15.4W (af) for energy‑efficient devices.
- High Switching Capacity: Offers 1.2 Gbps switching capacity, ensuring smooth traffic handling across all four ports.
- Fast Packet Forwarding: Processes 14880 pps/port at 10 Mbps and 148800 pps/port at 100 Mbps, reducing latency for critical applications.
- Flexible Uplink Options: Includes a dedicated 10/100 Mbps uplink port with up to 100 m reach on Cat5/5e/6 cable.
- Extended Transmission Range: Supports 0‑250 m at 10 Mbps and 0‑100 m at 100 Mbps for both user and uplink ports.
- Reliable Power Management: Features power priority mechanism and IEEE 802.3X full‑duplex support for stable PoE delivery.
- Durable Build: MTBF exceeds 50,000 hours, providing long‑term reliability in demanding environments.
- Clear Status Indicators: LEDs show PoE status and power activity, simplifying monitoring and troubleshooting.
- Standard Compliance: Conforms to IEEE 802.3/802.3u, IEEE 802.3x and IEEE 802.ab, ensuring compatibility with a wide range of network devices.
Ideal For:
- Small office or home office (SOHO) network setups
- Retail stores needing PoE for IP cameras and access points
- Educational institutions deploying Wi‑Fi APs in classrooms
- Hospitality venues requiring reliable PoE for signage and VoIP phones
- Start‑ups looking for a cost‑effective, compact PoE switch
- IT technicians installing edge networking in tight spaces
- Security systems integrating PoE‑powered surveillance cameras
Summary:
The XTREME XM100-4FP2N is a compact 4‑port unmanaged PoE switch delivering up to 30W per port and a total switching capacity of 1.2 Gbps. With fast packet forwarding, robust power management, and a durable design exceeding 50,000 hours MTBF, it suits small offices, retail, and education environments. Its LED indicators and standard compliance make installation and maintenance straightforward. Available now at Revolution Technology BD with a 1‑year warranty.
