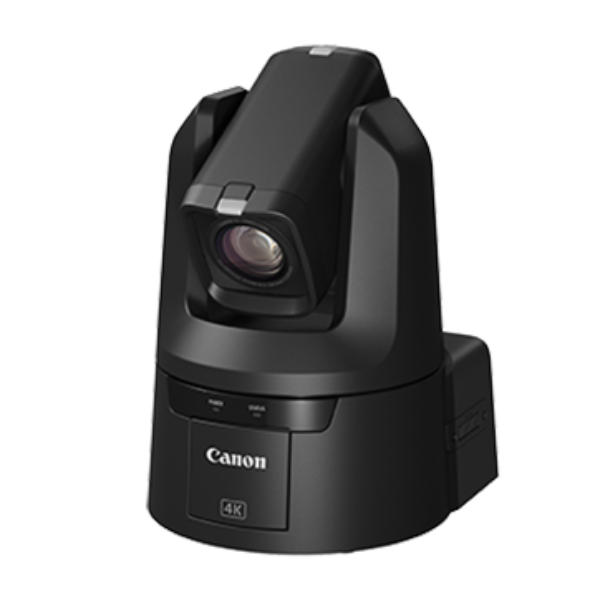

Canon CR-N700 4K PTZ Camera with 15x Zoom

Genuine Product Fast Delivery Easy Returns

Specification

Operating Condition	Indoor
Image Sensor	Type 1.0 (1.0 inch) single-plate CMOS sensor Total pixels: approx. 13.40 megapixels Effective pixels: approx. 8.29 megapixels (3840 x 2160)

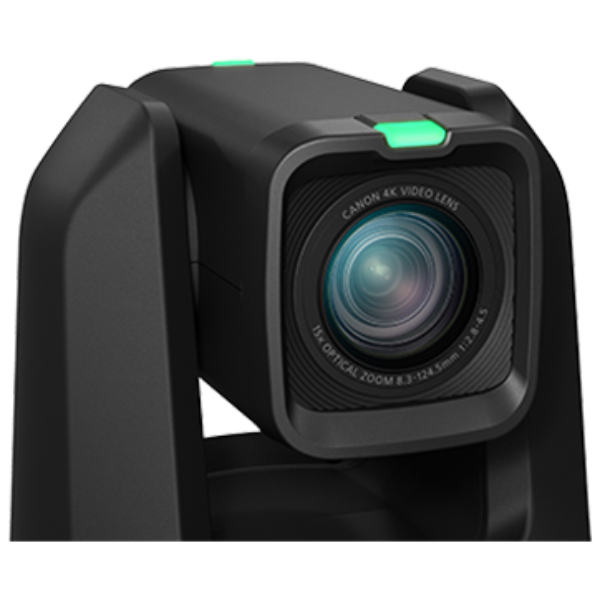

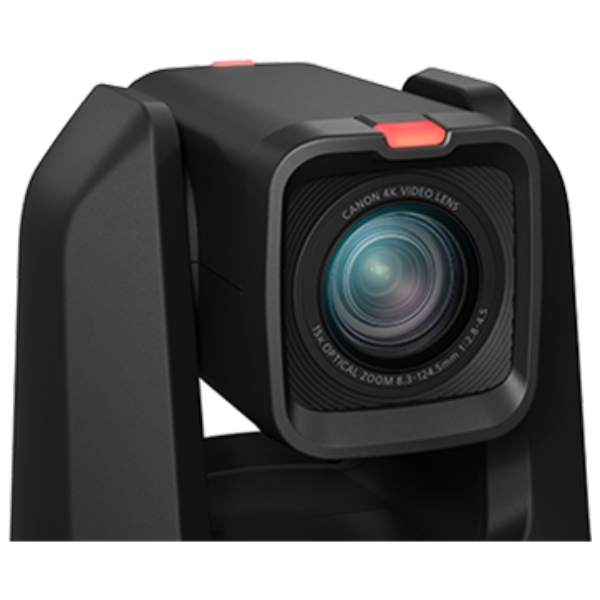

Lens	f=8.3 – 124.5 mm, F/2.8 – 4.5, 9-bladed iris diaphragm 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
Zoom	Optical: 15x Digital: 20x Advanced (FHD): 30x
Minimum Focusing Distance	1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
Angle Of View	Horizontal: 73.0 (W) – 5.7° (T) Vertical: 45.2° (W) – 3.2° (T)
Shutter Speed	1/3 – 1/2000 sec. (specific values depend on the frame frequency)
Iris	Manual/Automatic aperture
Gain	-6.0 dB – 21.0 dB
ND Filter	Built-in (Off, 1/4, 1/16, 1/64), motor operated
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), colour temperature setting (2,000 K – 15,000 K), Manual *Colour temperatures are given for reference purposes only. Colour temperature and colour compensation (CC) adjustment available for all settings except custom white balance and AWB.
Focus	Focus mode: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection AF type: Dual Pixel CMOS AF, Contrast AF
Gamma	Canon Log 3, HDR(PQ), HDR(HLG), BT.709 Wide DR, BT.709 Normal, BT.709 Standard, Canon 709
Image Stabilizer	Optical-shift
Min. Subject Illumination	59.94 Hz: Approx. 3 lux (shutter speed: 1/60, 59.94P) 50.00 Hz: Approx. 2.5 lux (shutter speed: 1/50, 50.00P) – Gain set to 21 dB, [High Sensitivity Mode] set to [On]
Pan, Tilt, Zoom Operation	Pan Range: Horizontal ±170° Pan Speed: 0.1° – 100°/sec. Tilt Range: Vertical -30° – +90° Tilt Speed: 0.1° – 100°/sec.
Infrared Shooting	Yes
SDI	12G-SDI 3840 x 2160: 59.94P, 50.00P, 25.00P, 29.97P, 23.98P(4:2:2 10bit) 1920 x 1080: 59.94P, 59.94i/29.97PsF, 50.00P, 50.00i/25.00PsF, 25.00P, 29.97P, 23.98 (4:2:2 10bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10bit) 720 x 576: 50.00i (4:2:2 10bit) 720 x 480: 59.94i (4:2:2 10bit) 3G-SDI 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i, 25.00P, 29.97P, 23.98P (4:2:2 10bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10bit) Same video format required for HDMI and 3G-SDI (cannot select different formats for 3G-SDI and HDMI) When 3840x2160 or 720x480 (720x576) is selected, video will not be outputted to 3G-SDI
HDMI	3840 x 2160: 59.94P, 50.00P, 25.00P, 29.97P, 23.98P (4:2:2 10bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i, 25.00P, 29.97P, 23.98P (4:2:2 10bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10bit) 720 x 576: 50.00P (4:2:2 10bit) 720 x 480: 59.94P (4:2:2 10bit) *Same video format required for HDMI and 3G-SDI (cannot select different formats for 3G-SDI and HDMI)
IP	Frame frequency 59.94 Hz 3840 x 2160: 59.94fps, 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) 1920 x 1080: 59.94fps, 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) 1280 x 720: 59.94fps, 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) 640 x 360: 59.94fps, 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) Frame frequency: 29.97 Hz 3840 x 2160: 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) 1920 x 1080: 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) 1280 x 720: 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) 640 x 360: 29.97fps, 14.99fps, 5.00fps (4:2:0 8 bit) Frame Frequency: 50.00 Hz 3840 x 2160: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) Frame Frequency: 25.00 Hz 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) Frame frequency 23.98 Hz 3840 x 2160: 23.98fps, 11.99fps, 5.99fps (4:2:0 8 bit) 1920 x 1080: 23.98fps, 11.99fps, 5.99fps (4:2:0 8 bit) 1280 x 720: 23.98fps, 11.99fps, 5.99fps (4:2:0 8 bit) 640 x 360: 23.98fps, 11.99fps, 5.99fps (4:2:0 8 bit) *H.265 only - Depending on the selected frame frequency, JPEG is fixed to one pattern (fixed format, cannot be selected) Resolution: 1280 x 720 59.94/29.97 Hz: 14.99 fps 50.00/25.00 Hz: 12.50 fps 23.98 Hz: 11.99 fps
Supported Protocols	Protocol: XC Protocol, RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), FreeD, SRT
Preset	Number of presets: Max. 100 (including home position)
Communication Control	LAN, Wi-Fi, Serial, IR

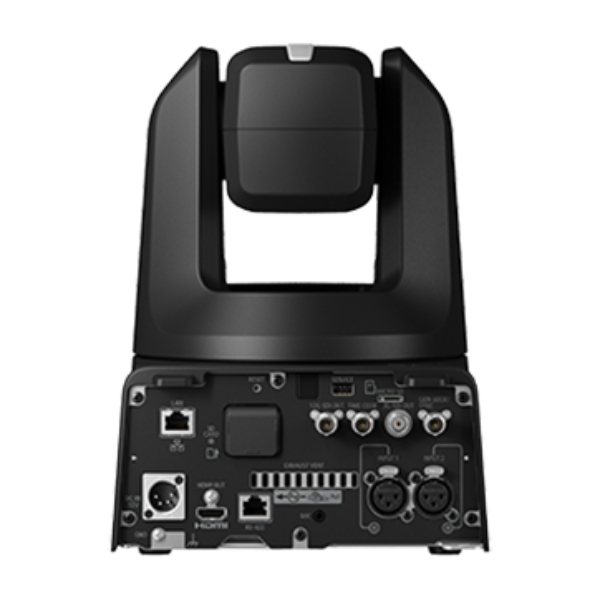

Network Terminal	LAN x 1, RJ45, 1000Base-T
SDI Out Terminal	12G/3G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75Ω, unbalanced Video SD (SMPTE ST 259) HD (SMPTE 292) 3G (SMPTE 424, 425) 6G (SMPTE ST 2081) 12G (SMPTE ST 2082) Audio SD (SMPTE ST 272) Other than SD (SMPTE ST 299) Embedded audio, Time code (VITC/LTC) Assistance displays can be output (onscreen displays, peaking)
Time Code Terminal	BNC jack (input and output), input: 0.5 - 18 Vp-p/100 kΩ Output: 1.3 Vp-p/50Ω or less
Gen-Lock Terminal	BNC jack x 1, 1.0 Vp-p/75 Ω, input only
HDMI Out Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Mic Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
Input 1 / Input 2 Terminals	INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)

Operating/Storage Environment	Temperature: 0°C – +40°C (+32°F – +104°F) Humidity: 10% – 90% (without condensation)
Power Supply	PoE: PoE++ power supply via LAN connector (IEEE802.3at compliant) – PoE and PoE+ cannot be used Ext. power source: 12V DC (4-pin XLR input)
Power Consumption	PoE++ Input: Approx. 37.4 W* max. (body only) DC Input: Approx. 36.7 W max. (body only) *Class 5 (40.0 W required) for power supply device
Quietness	NC30 or lower
Dimensions (W X H X D)	Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions)
Weight	Approx. 4.4 kg (9.7 lb.) (body only)
Supported Controllers	Hardware: RC-IP100, RC-IP1000 Software: Remote Camera Control Application, Search Tool
Warranty	18 Months Warranty

Description

Canon CR-N700 4K PTZ Camera with 15x Zoom

This is a flagship, future-proof PTZ camera engineered for high-end broadcast, live sports, and premium studio environments demanding the absolute best in image quality, workflow integration, and operational reliability. It combines a large 1-inch sensor with native HDR support (HLG/PQ) and a powerful 12G-SDI output to deliver pristine 4K 60p signals over a single cable. This camera is the ultimate choice for creating broadcast and cinematic content remotely.

Key Features & Benefits:

Broadcast-Grade 4K 60p HDR Workflow: Capture stunning, high dynamic range footage with native support for Canon Log 3, HLG, and PQ. The 12G-SDI output transmits uncompromised 4K 60p 4:2:2 10-bit video over a single cable, simplifying cabling in OB vans and studios while ensuring the highest signal integrity.
Cinematic Image Quality with Intelligent AF: The 1-inch sensor provides exceptional low-light performance and cinematic depth of field. Advanced Dual Pixel CMOS AF with Eye Detection ensures critical focus is maintained on presenters or performers, even during movement, delivering the look and focus accuracy of a manned cinema camera.
Complete Professional Infrastructure Ready: Fully integrate into any broadcast truck or studio with Gen-Lock, Timecode (in/out), dual XLR inputs with phantom power, and RS-422 control. The camera supports PoE++ for single-cable power, control, and data, drastically simplifying complex installations.
Versatile Live Production & Streaming Hub: Serve multiple production workflows simultaneously. Stream a live feed via NDI|HX for IP production, deliver a pristine 12G-SDI feed for broadcast, and output a separate HDMI feed for confidence monitoring—all from one camera.

Ideal For:

Live Sports Broadcasting & Outside Broadcast (OB) Vans
National Broadcast & News Studios
High-End Corporate & Entertainment Studios
Government & Legislative Chambers

Summary:
This PTZ camera is not just an upgrade; it's a complete production solution. It is designed to be the primary camera in critical, high-budget productions where image quality, reliability, and integration cannot be compromised. For broadcasters and production houses looking to invest in a future-proof, robotic camera system that delivers cinematic quality with broadcast robustness, this is the definitive flagship model.
