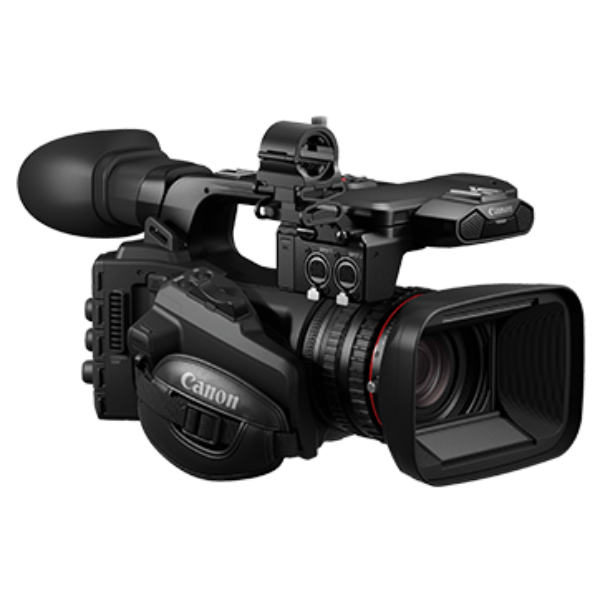

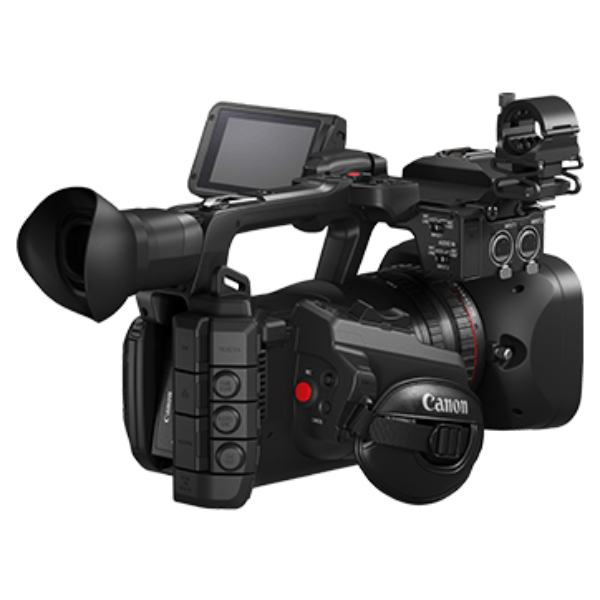

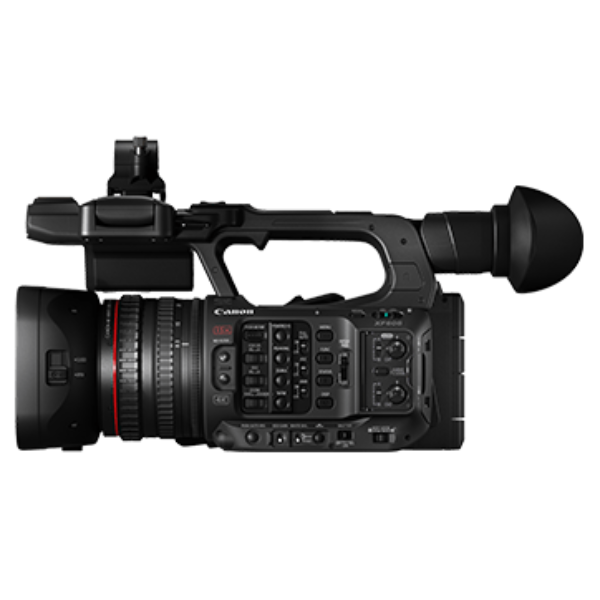

Canon XF605 UHD 4K HDR Pro Camcorder
Contact us for pricing
Product Details
Key Features
Recording: 4K 4:2:2 10-bit,
XF-AVC Intra up to 410Mbps
Lens: 15x L-Series Zoom with
Optical IS, 3 Lens Rings
Focus: Dual Pixel CMOS AF with
iTR AF X
Professional I/O: 12G-SDI,
Genlock, Timecode, XLR Ports
Streaming: IP Streaming &
UVC over Wi-Fi
Display: 3.5" Touch
Screen, 0.36" Tilting EVF
Media: Dual SD Card Slots
Features: Switchable ND
Filter, Infrared, Manual Controls
Weight: 2.01 kg (with battery)
Specification
|
Key Features |
4K 4:2:2 10-bit Recording,
15x L-Series Zoom Lens with Optical IS, Dual Pixel CMOS AF with iTR AF X, IP
Streaming, XLR Ports, 12G-SDI Output, Timecode, Genlock, UVC, 3 Lens Rings |
|
Sensor Size |
1-inch CMOS |
|
Zoom Ratio Focal Length |
15x Optical (25.5mm-382.5mm,
f/2.8-f/4.5) / 30x Advanced Zoom (FHD) |
|
ND Filter |
Turret Switchable (1/4,
1/16, 1/64) |
|
Autofocus System |
Dual Pixel CMOS AF with EOS
iTR AF X |
|
Best Recording Quality (4K) |
XF-AVC Intra: 3840x2160
25/30p at 410Mbps (4:2:2 10-bit) |
|
Best Recording Quality (FHD) |
XF-AVC Intra: 1920x1080
50/60p at 310Mbps (4:2:2 10-bit) |
|
Recording Formats |
XF-AVC (H.264), MP4 (H.264 /
H.265) |
|
Media |
2x SD Card Slots |
|
Battery (Packaged/Optional) |
BP-A30 / BP-A60 |
|
Display |
3.5" Touch Screen
(2.76M dots) |
|
EVF |
0.36" Tilting EVF
(1.77M dots) |
|
Dimensions |
Approx. 200 x 219 x 385 mm
(W x H x D) |
|
Weight (with battery) |
2.01 kg |
|
SDI Output |
12G-SDI (4K 4:2:2 10-bit at
50/60p) |
|
Network / IP |
Built-in Wi-Fi (H.264 IP
Streaming, Browser Remote, UVC) |
|
Infrared |
Yes |
|
Warranty |
18 Months Warranty |
Description
Canon XF605 UHD 4K HDR Pro
Camcorder
This is a top-tier broadcast
and production camcorder designed for professional videographers, live
event crews, and broadcasters who require the absolute highest quality
recording, robust connectivity, and future-proof features. It represents the
pinnacle of all-in-one camcorder design, offering 4K 4:2:2 10-bit
internal recording, a professional 15x L-series lens, and
critical infrastructure like 12G-SDI, Genlock, and IP streaming.
Key Features & Benefits:
- Cinema-Grade Internal Recording: Capture breathtaking image quality with 4K
4:2:2 10-bit recording internally to dual SD cards using the
efficient XF-AVC Intra/Long GOP codecs. This provides
immense flexibility for color grading and post-production, meeting the
standards for HDR workflows and broadcast delivery.
- Broadcast Infrastructure Ready: Integrate seamlessly into any
professional setup with 12G-SDI output for pristine 4K
signal transmission, Genlock for multi-camera
synchronization, Timecode, and professional XLR audio
inputs. This camcorder is built for live production and broadcast
environments.
- Advanced Connectivity & Live
Production: Go beyond
traditional cabling with built-in IP streaming capabilities (H.264).
Stream directly over Wi-Fi, control the camera via a web browser, or use
it as a high-quality USB webcam (UVC) for hybrid live events and remote
production.
- Professional Operational Excellence: Enjoy three independent lens
rings (zoom, focus, iris) for precise manual control. The
advanced Dual Pixel CMOS AF with iTR tracking ensures
critical focus on faces and subjects, while the optical image
stabilizer and versatile 15x L-series zoom deliver
sharp, steady footage in any situation.
Ideal For:
- Broadcast Television & Live Event
Production
- High-End Corporate & Documentary
Filmmaking
- Electronic News Gathering (ENG) &
Sports
- Professional Multi-Camera Studio Setups
Summary:
This camcorder is a complete, future-proof production system. It combines the
image quality of a cinema camera, the connectivity of a broadcast unit, and the
agility of an ENG camcorder into one formidable tool. For professionals who
need uncompromising quality, reliability, and the ability to integrate into
both traditional and modern IP-based workflows, this is the definitive choice.
