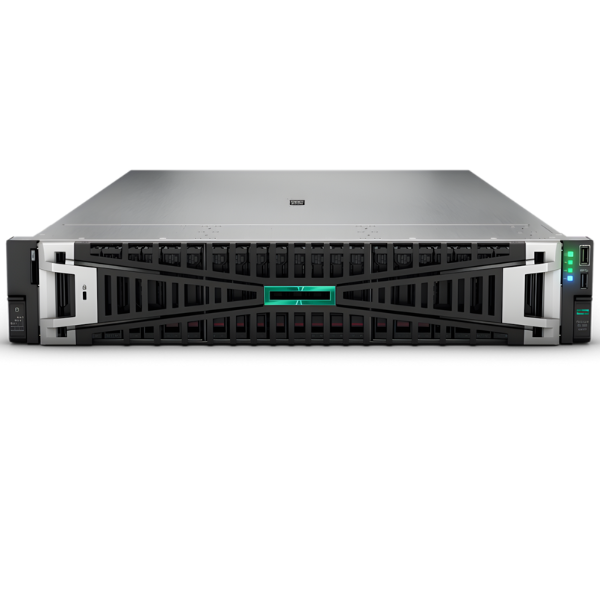

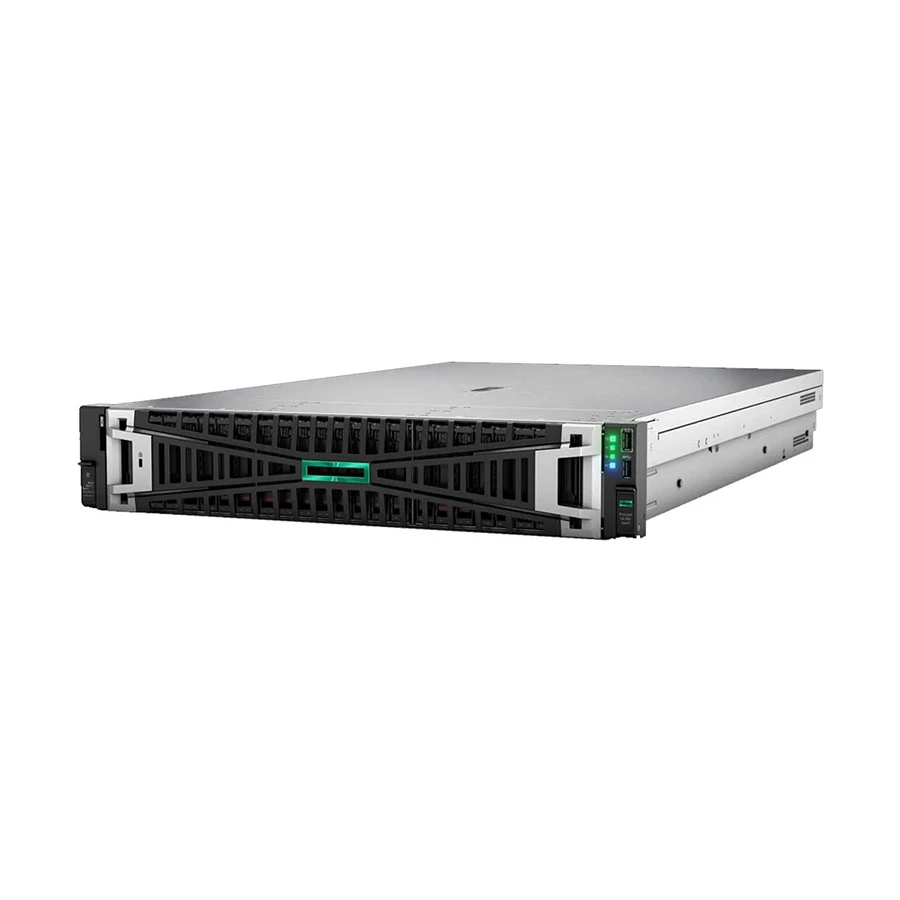

HPE ProLiant DL380 Gen11 Intel Xeon Silver Rack Server

Genuine Product Fast Delivery Easy Returns

Specification

Basic Information	Form Factor	2U Rack Server with Rail Kit & Cable Management Arm
Processor	Model & Quantity	2 x Intel Xeon Silver 4410Y
	Core/Thread Count	12-core per processor
	Clock Speed	2.0 GHz
	L3 Cache	30 MB per processor
	TDP	150W per processor
Memory	Installed RAM	64GB (2 x 32GB)
	RAM Type	Dual Rank x8 DDR5-4800 (CAS 40-39-39) Registered Smart Memory
	Maximum Capacity	Supports up to 8TB
Storage	SSD Storage	3 x HPE 2.4TB SAS 12G Read Intensive SFF SSD
	HDD Storage	4 x 2.4TB 10000 RPM SAS 12G HDD
	RAID Controller	Integrated Broadcom MegaRAID MR416i-a
	Cache	4GB Flash Backed Write Cache
	Supported RAID	RAID 0, 1, 5, 10, 50, 6, 60
Chipset & Expansion	Chipset	Intel C741A Chipset
	Network Controller	Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter
	Remote Management	HPE iLO (Dedicated 1Gb network port)
I/O Ports	Front Panel	1 x USB 3.0, Optional DisplayPort, Optional USB 2.0 (via Media Bay)
	Rear Panel	2 x USB 3.0, 1 x VGA, Dedicated iLO port
	Internal	2 x USB (1x 3.0, 1x 2.0 secure)
	Network	Choice of OCP or stand-up networking card (BTO)
Power & Cooling	Power Supply	Hot Plug Low Halogen, 800W
Power & Cooling	Cooling	4 x Hot-plug fans
Security & Management	Embedded Security	UEFI Secure Boot, Immutable Silicon Root of Trust, TPM 2.0 option
	Compliance	FIPS 140-2, Common Criteria, PCI DSS compliance support
	Management Features	Secure firmware recovery, Chassis intrusion detection, Bezel locking kit option
Supported OS	Windows	Server 2019/2022 (Essentials, Standard, Datacenter)
	Virtualization	Hyper-V Server 2019, VMware vSphere ESXi 7.0 U3/8.0 EP1
	Linux	RHEL 8.6+/9.0+, SLES15 SP5+, Ubuntu 22.04.1
Warranty	Warranty	1 Year HPE Standard Warranty

Description

HPE ProLiant DL380 Gen11 Intel Xeon Silver Rack Server

The HPE ProLiant DL380 Gen11 Intel Xeon Silver Rack Server is designed to deliver reliable performance and scalability, making it an excellent choice for demanding data center settings and corporate applications. This server is powered by two Intel Xeon-Silver 4410Y processors, each running at 2.0GHz with 12 cores and a 150W power rating, for a total of 24 cores for efficient multi-threaded processing and increased computing capability. With 64GB of DDR5-4800 memory configured as 2 x 32GB Dual Rank x8 modules, the server provides fast data access and efficient multitasking, which are critical for managing large-scale workloads and sophisticated applications. This sophisticated memory architecture guarantees low latency and high bandwidth, hence increasing total system performance. The server has three 2.4TB SAS 12G Read Intensive SFF SSDs, for a total of 7.2TB of fast, dependable storage. These SSDs are designed for read-intensive activities, resulting in fast data retrieval and contributing to the server's outstanding performance for data-intensive applications. The HPE ProLiant DL380 Gen11 is powered by two HPE 800W FS Platinum Power Supply Kits. These power supplies are very efficient and redundant, assuring consistent performance while reducing energy use. The dual power supply configuration improves the server's uptime and dependability, which is essential for ongoing operation in mission-critical applications. This server is built to accommodate a wide range of corporate applications while maintaining a mix of performance, expandability, and energy efficiency. Its powerful processing power, fast memory, large storage capacity, and dependable power supply make it an ideal solution for a variety of corporate applications, including virtualization, data analytics, and high-performance computing.
