LifeSmart CUBE Switch Module PRO 3way
Contact us for pricing
Product Details

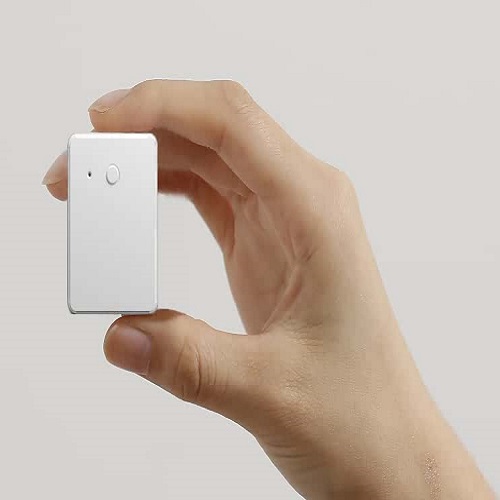

Compact enough to be installed in the
bottom box of switches
Update a traditional switch to a smart
one
Strong compatibility to different switch
size
Product Description
LifeSmart CUBE Switch Module PRO is in extremely small size and very easy to install. It is suitable for all 86 types of switches. It can easily upgrade traditional switches to intelligent ones.
Specification
|
Model Number |
LS193(3 way) |
|
Wiring |
Live+neutral |
|
Control Unit |
16A Magnetic latching relay |
|
Operating Temperature |
-5~45°C |
|
Operating Humidity |
5~90% |
|
Power Supply |
AC 100-240V 50/60Hz |
|
Static Consumption |
<0.3W |
|
Maximum Overload |
Resistive load: 500W per way Inductive/Capacitive load: 200W per way |
|
Indicator |
LED |
|
Button |
Pairing buttonk |
|
Radio Protocol |
CoSS |
|
Signal Range(Open Field) |
100m |
|
Color |
Ivory white |
|
Dimension |
47*44*22mm |
|
Weight |
50g(3 way) |
|
Casing |
Flameresistant PC |
