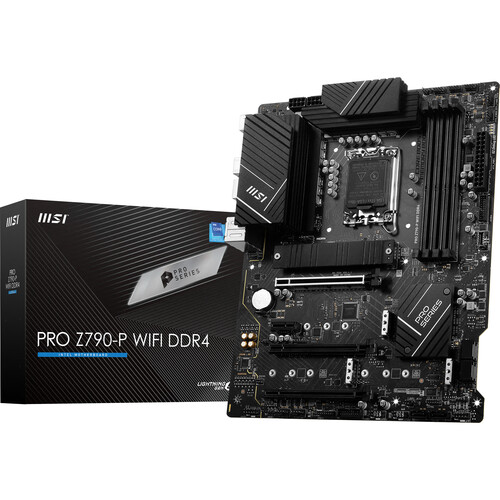

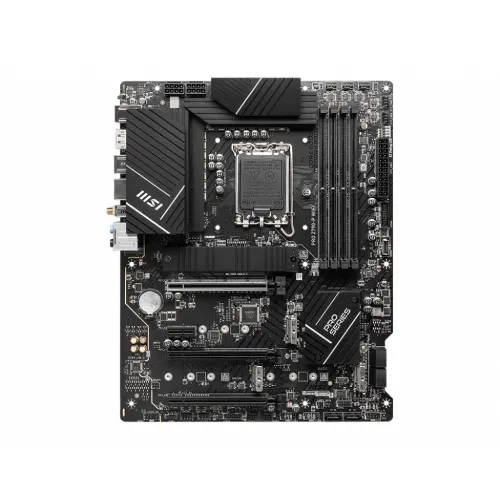

MSI PRO Z790-P WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

Supported CPU

Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
LGA 1700

Chipset

INTEL Z790

Form Factor

ATX Form Factor
243.84mmx304.8mm

Audio

Realtek ALC897 Codec
7.1-Channel High-Definition Audio

PCI

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)

M.2 Socket

4x M.2 slot

Type

DDR4

Supported Memory

4x DDR4, Maximum Memory Capacity 128GB
Max. overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

128GB

Graphics

1x HDMI
1x DisplayPort
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz

HDMI

1x HDMI 2.1

Display Port (s)

1x DisplayPort 1.4

USB (s)

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN Port (s)

Intel 2.5Gbps LAN

Wireless Communication module

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA

Supported Storage

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port

Audio

1x Front Audio (JAUD)

Internal I/O Ports

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)

Special Features

LED FEATURE: 4x EZ Debug LED

Manufacturing Warranty

3 years
