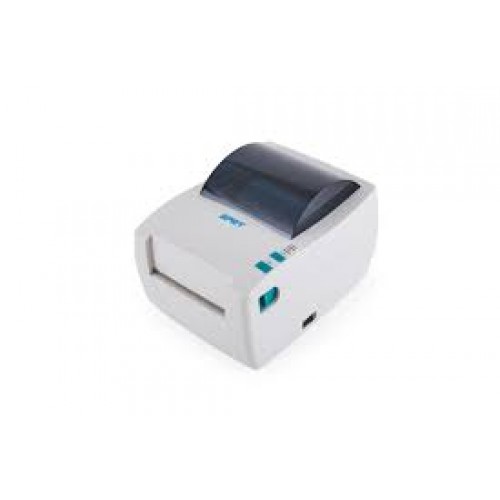

SPRT SP-TL51 Low Cost Label Printer

Specification

Description

SPRT SP-TL51 Low Cost Label Printer

SPRT SP-TL51 Low Cost Label Printer is an excellent example of a mobile Portable Thermal line label Printer. This label printer is capable of Printing various type of POS documents at alighting fast rate and at a very cheap cost per page. It supports Thermal Line Method for printing with a maximum Resolution of 8 dots/mm or 203dpi. It can print 384 dots per line in a single print. The Printing Speed is 127 mm/s with an Effective Printing Width of 108mm. The TPH reading is 100km. The Paper Width support is a Maximum of 111.5±0.5mm and Minimum of 40±0.5mm. It supports a wide variety of Paper Types including Normal Thermal Paper, Thermal Label Paper and Blackmark Paper. The maximum Paper Size supported is 112×127mm when the Minimum paper supported is 112×13 mm. It can only supports paper with Thickness ranging from 0.06mm to 0.20mm. The Paper Refill Supply Method is called Drop-in easy paper loading. The supported Print Font for a Codepage is ANK: 9 x17 / 12 x24; Chinese: 24 x 24. The Power supply itself is DC24V±10ï¼… with a 2.5A, A-1009-3P socket. It has a Operating Temperature is 5 to50℃ and Humidity reading is 10 to 80%. The Storage Temp supported is -20～60℃  and the Humidity supported is 10 to 90.

It also supports Barcode Printing in various formats. The 1D formats supported are UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR, CODE93 and CODE128 when the 2D format supported are PDF417,QR CODE, DATA matrix and many more formats. The Connectivity Interface are RS232C, Parallel, USB, Ethernet, RS232C plusUSB and Ethernet.

The dimensions of this printer is 240mm × 180mm × 157mm. The weight is around 203 g.

SPRT SP-TL51 Low Cost Label Printer offers 01 years of manufacturer warranty.
