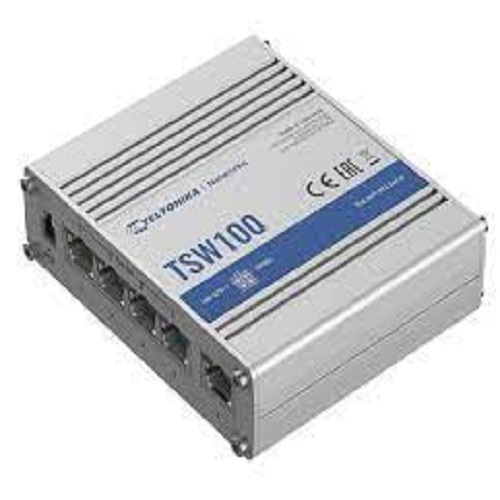

Teltonika TSW100 Industrial Unmanaged POE+ Switch
Contact us for pricing
Product Details
Brand: Teltonika
Model: TSW100
Product Type: TSW100 Industrial Unmanaged POE+ Switch
LAN
5 x LAN ports, 10/100/1000 Mbps,
compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto
MDI/MDIX crossover
PHYSICAL SPECIFICATION
PoE ports
Port 1- 4
PoE standards
802.3af and 802.3at
PoE Max Power per Port (at PSE)
30 W
PoE Power Budget (at PSE)
120 W
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Connector
4-pin industrial DC power socket
Input voltage range
7-57 VDC
Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max:
129 W
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x LAN status LEDs
Power
1 x 4-pin power connector
Other
1 x Grounding screw
Casing material
Full aluminum housing
Dimensions (W x H x D)
115 x 32 x 95 mm
Weight
350 g
Mounting options
DIN rail or wall mounting (additional
kit needed), flat surface placement
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
