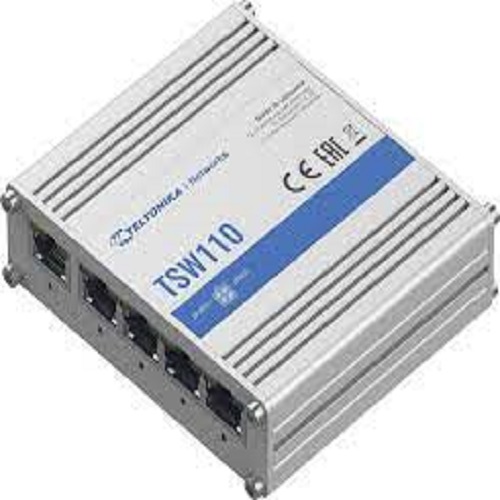

Teltonika TSW110 L2 Unmanaged Switch
Contact us for pricing
Product Details
Key Features
Brand: Teltonika
Model: TSW110
Product Type: TSW110 L2
Unmanaged Switch
Specification
|
Ethernet |
|
|
ETH |
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX
crossover |
|
IEEE 802.3 series
standards |
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
|
Performance
Specifications |
|
|
Bandwidth
(Non-blocking) |
10 Gbps |
|
Packer buffer |
128 KB |
|
MAC address table
size |
2K entries |
|
Jumbo frame support |
9216 bytes |
|
Power |
|
|
Connector |
4-pin industrial DC power socket |
|
Input voltage range |
9 – 30 VDC |
|
PoE (passive) |
Possibility to power up through ETH1 ports, not
compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30
VDC |
|
Power consumption |
< 0.4 W/ < 1.8 W |
|
Physical Interfaces |
|
|
Ethernet |
5 x RJ45 ports, 10/100/1000 Mbps |
|
Status LEDs |
1 x
Power LED, 10 x ETH status LEDs |
|
Weight |
1 x
4-pin power connector |
|
Mounting Options |
1 x
Grounding screw |
|
Physical
Specification |
|
|
Casing material |
Full aluminum housing |
|
Dimensions (W x H x
D) |
100 x 30 x 85 mm |
|
Weight |
227 g |
|
Mounting options |
DIN rail, wall mount, flat surface (all require
additional kit) |
|
Operating
Environment |
|
|
Operating
temperature |
-40 °C to 75 °C |
|
Operating humidity |
5% to 95% non-condensing |
|
Ingress Protection
Rating |
IP30 |
|
Regulatory &
Type Approvals |
|
|
Regulatory |
CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM,
RCM, BSMI, CB |
|
EMC Emissions &
Immunity |
|
|
Standards |
EN 55032:2015 + A11:2020 EN 61000-3-3:2013 + A1:2019 EN IEC 61000-3-2:2019 EN 55035:2017 |
|
ESD |
EN 61000-4-2:2009 |
|
Radiated Immunity |
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 |
|
EFT |
EN 61000-4-4:2012 |
|
Surge Immunity (AC
Mains Power Port) |
EN 61000-4-5:2014 + A1:2017 |
|
CS |
EN 61000-4-6:2014 |
|
DIP |
EN 61000-4-11:2004 + A1:2017 |
|
SAFETY |
|
|
Standards |
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020 |
Description
TSW110
L2 UNMANAGED ETHERNET SWITCH
TSW110 is an unmanaged layer 2
Ethernet switch. This tiny but rugged professional device enables industrial
high-bandwidth applications with a reliable data connection. It has five
Gigabit Ethernet ports to connect equipment to the network and supports wide
power supply voltages (9-30 V).
