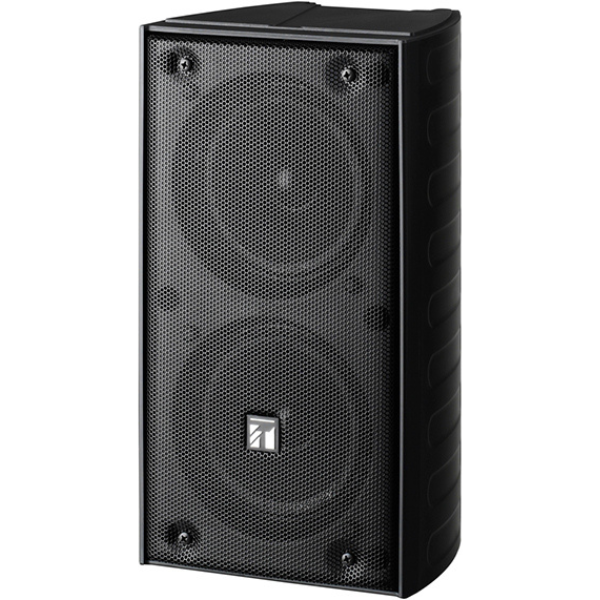

TZ-206BWP Column Speaker System
Contact us for pricing
Product Details
Key Features
Enclosure: Sealed, IP65 Weatherproof
Power: 20W Rated Input
Impedance: 100V/70V Line (Multi-tap)
Sensitivity: 89 dB (1W, 1m)
Frequency: 150Hz - 13,000Hz
Speakers: Dual 10cm Cone-type
Environment: -10°C to +50°C Operation
Specification
|
Enclosure |
Sealed
Type |
|
Rated
Input |
20 W |
|
Rated
Impedance |
100 V
line: 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W), 4 kΩ (2.5 W) |
|
Sensitivity |
89 dB (1
W, 1 m) |
|
Frequency
Response |
150 Hz -
13,000 Hz |
|
Speaker
Component |
10 cm
cone-type × 2, waterproof |
|
Input
Terminal |
Push-In
terminals |
|
Operating
Temperature |
-10 °C -
+50 °C |
|
Dust/Water
Protection |
IP 65 |
|
Finish |
Enclosure:
HIPS, black, paint |
|
Dimensions |
135 (W) ×
250 (H) × 128 (D) mm |
|
Weight |
1.9 kg
(unit only) |
|
Accessory |
Speaker
Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1,
Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine
Screw (M5 x 20) (with plain washer and spring washer) x 2, Hexagon Bolt (M8x
15) x 1, Terminal Cover x 1, Tapping Screw x 4 |
|
Option |
Speaker
Stand: ST-16A |
Description
TZ-206BWP Column Speaker System
The TZ Series Column Speaker is a high-performance compact
speaker that delivers excellent sound performance for medium-sized venues such
as houses of worship, gymnasiums, auditoriums and more. The TZ Series
weatherproof range includes column speakers with an IP-65 rating. They perform
well in all weather conditions when installed outdoors.
