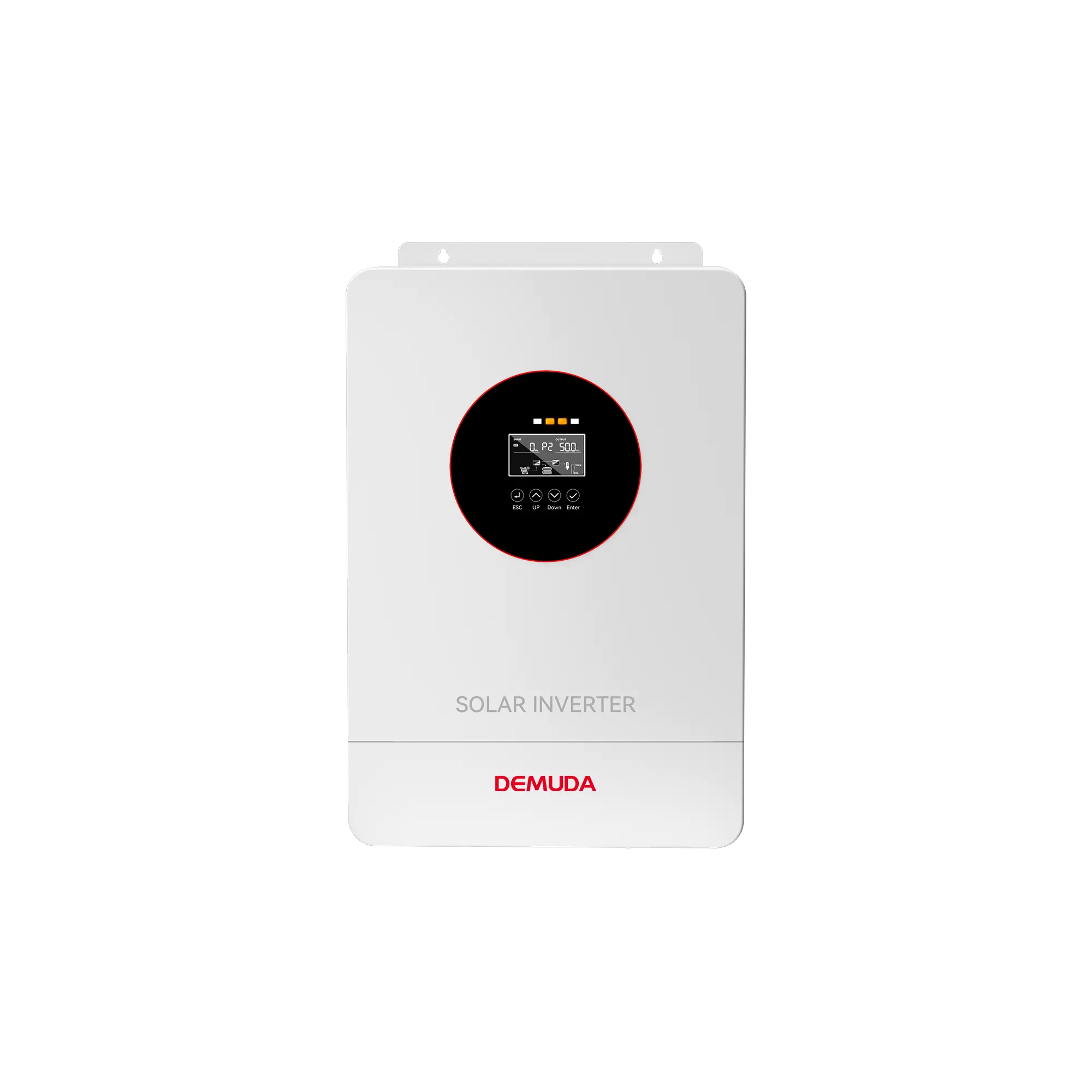

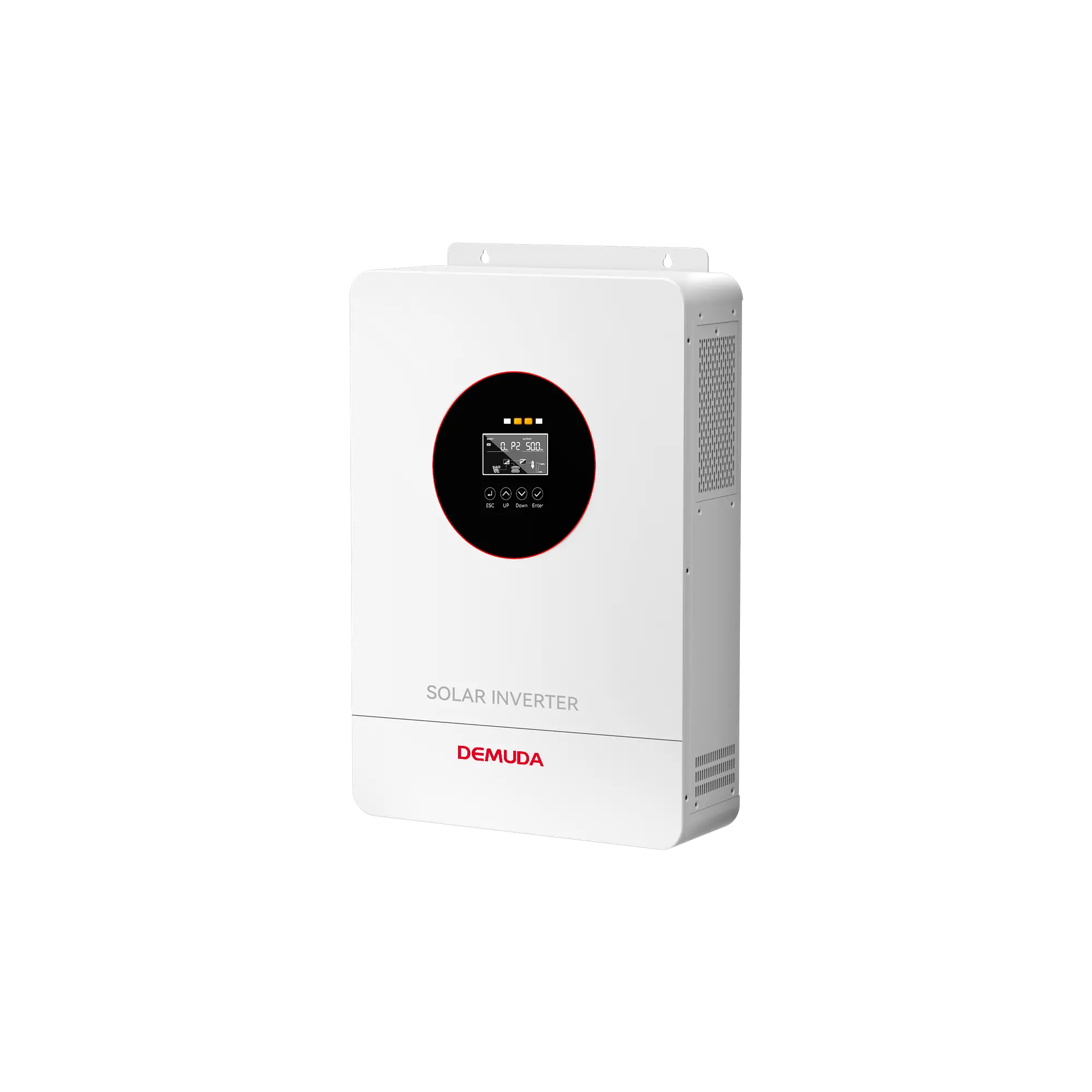

DEMUDA 1.5KVA Hybrid Solar Inverter
Exclusive of all taxes
Product Details
Key Features
High Power Capacity: Delivers 1200VA continuous and 2400VA surge power, suitable for demanding household appliances.
Wide Input Voltage Range: Accepts 90~280V in normal mode and 170~280V in UPS mode, ensuring stable operation across fluctuating grids.
Pure Sine Wave Output: Provides clean 50/60Hz ±0.1% pure sine wave output for sensitive electronics and medical equipment.
Fast Switch Time: Switches to battery mode in just 10 ms, guaranteeing seamless power continuity during outages.
Efficient Battery Mode: Achieves 90% efficiency at 12VDC, maximizing solar and battery utilization.
Robust Solar Charging: MPPT charger handles up to 800W / 18A from 17–115V PV panels, with 50A max charge current for both PV and AC sources.
Versatile Battery Compatibility: Supports both lead‑acid and lithium batteries with a rated voltage of 12V and protective overcharge at 15V.
Durable Build: IP20 protection, operating from -10°C to 50°C, and can function up to 4000 m altitude (derated above 1000 m).
Compact and Lightweight: Measures 300×218×98 mm and weighs only 3.5 kg, making installation easy in limited spaces.
Advanced Monitoring Options: Equipped with RS485 and USB interfaces for remote monitoring and integration with smart home systems.
AC INPUT Rated Input Voltage (VAC) | 230 (default); 208/220/230/240; L+N+PE |
Voltage Range (VAC) | 90~280±3 (Normal Mode); 170~280±3 (UPS Mode) |
Frequency (Hz) | 50/60 — Auto Adaptive |
AC OUTPUT Rated Capacity (VA/W) | 1200VA / 1200W |
Surge Power (VA) | 2400VA |
Rated Output Voltage (VAC) | 208 / 220 / 230 / 240 |
Power Factor (PF) | >0.99 |
Output Frequency | 50/60Hz ±0.1% |
Switch Time (ms) | 10 (Normal Mode) / 10 (UPS Mode) |
Wave Form | Pure Sine Wave |
Overload Capacity (Battery Mode) | 60s @ 102%~110%; 10s @ 110%~130%; 3s @ 130%~150%; 0.2s @ >150% |
Max. Efficiency (Battery Mode) | 90% @ 12VDC |
Parallel Quantity | NA |
Solar Charger Type | MPPT |
Max PV Input Power / Current | 800W / 18A |
PT Range Operating Voltage (VDC) | 17–115V |
Max PV Open Circuit Voltage (VDC) | 115 |
Max PV Charge Current (A) | 50 |
Max AC Charge Current (A) | 50 |
Max Charge Current PV + AC (A) | 50 |
Battery Rated Voltage (VDC) | 12 |
Floating Charge Voltage (VDC) | 13.5 |
Overcharge Protection (VDC) | 15 |
Battery Type | Lead-acid and Lithium |
Communication Interface | RS485 / USB |
Monitoring | NA |
Ingress Protection | IP20 |
Operating Temperature | -10°C ~ 50°C |
Relative Humidity | 5%~95% (Non-condensing) |
Storage Temperature | -10°C ~ 50°C |
Net Weight | 3.5 kg |
Dimensions (W×H×D) | 300 × 218 × 98 mm |
Max. Operating Altitude | 4000m (Derating above 1000m) |
Description
DEMUDA 1.5KVA Hybrid Solar Inverter
Key Features & Benefits:
- High Power Capacity: Delivers 1200VA continuous and 2400VA surge power, suitable for demanding household appliances.
- Wide Input Voltage Range: Accepts 90~280V in normal mode and 170~280V in UPS mode, ensuring stable operation across fluctuating grids.
- Pure Sine Wave Output: Provides clean 50/60Hz ±0.1% pure sine wave output for sensitive electronics and medical equipment.
- Fast Switch Time: Switches to battery mode in just 10 ms, guaranteeing seamless power continuity during outages.
- Efficient Battery Mode: Achieves 90% efficiency at 12VDC, maximizing solar and battery utilization.
- Robust Solar Charging: MPPT charger handles up to 800W / 18A from 17–115V PV panels, with 50A max charge current for both PV and AC sources.
- Versatile Battery Compatibility: Supports both lead‑acid and lithium batteries with a rated voltage of 12V and protective overcharge at 15V.
- Durable Build: IP20 protection, operating from -10°C to 50°C, and can function up to 4000 m altitude (derated above 1000 m).
- Compact and Lightweight: Measures 300×218×98 mm and weighs only 3.5 kg, making installation easy in limited spaces.
- Advanced Monitoring Options: Equipped with RS485 and USB interfaces for remote monitoring and integration with smart home systems.
Ideal For:
- Homeowners seeking reliable backup power for essential appliances
- Small office owners needing uninterrupted UPS for computers and networking gear
- Solar enthusiasts wanting to combine grid and solar power efficiently
- Remote cabins or telecom sites with limited grid access
- Medical clinics requiring clean sine wave power for equipment
- DIY hobbyists installing off‑grid renewable systems
- Businesses in high‑altitude regions needing altitude‑adjusted performance
Summary:
The DEMUDA 1.5KVA Hybrid Solar Inverter offers 1200VA continuous output, 2400VA surge capacity, and pure sine wave power, making it ideal for homes and small offices. Its wide input voltage range, fast 10 ms switch time, and MPPT solar charging up to 800W ensure reliable operation with both grid and solar sources. Built to withstand temperatures from -10°C to 50°C and altitudes up to 4000 m, this compact 3.5 kg unit is available now at Revolution Technology BD.
