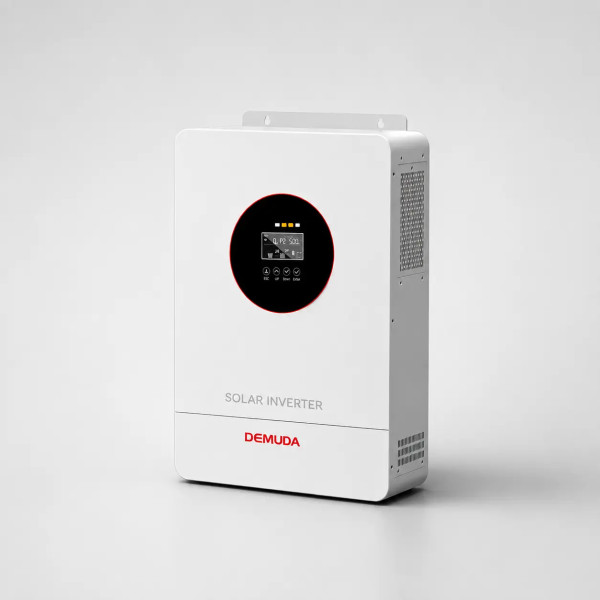

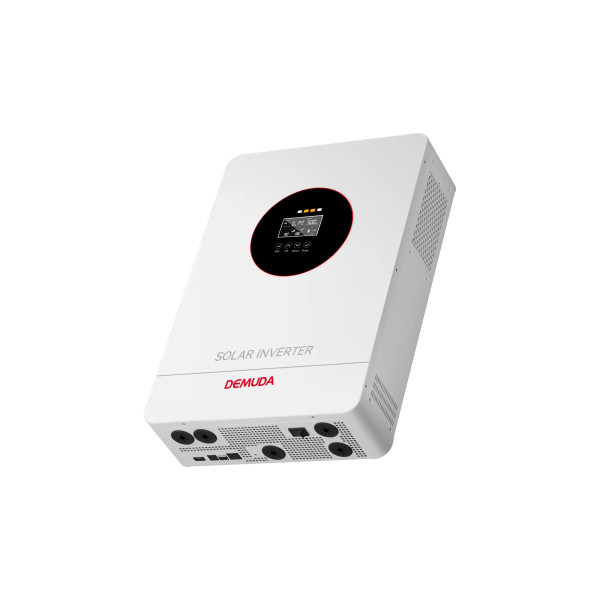

Name: DEMUDA 12KW Solar Hybrid Inverter
Brand: DEMUDA
SKU: 6789
Price: 93000 BDT
Availability: InStock

DEMUDA 12KW Solar Hybrid Inverter

৳ 93,000

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

Key Features

High Continuous Power: Provides a rated output of 12,000W, enough to run large commercial loads continuously.

Robust Surge Capability: Delivers up to 24,000W surge power for short‑term high‑demand equipment.

Wide Input Voltage Range: Accepts 90‑280V in normal mode and 170‑280V in UPS mode, ensuring stable operation across grid fluctuations.

Pure Sine Wave Output: Supplies a clean 50/60 Hz pure sine wave with >0.99 power factor for sensitive electronics.

Fast Switch Time: Switches between normal and UPS mode in just 10 ms, protecting loads from power interruptions.

High Battery Efficiency: Achieves 92.7% efficiency at 48 V DC, maximizing solar and battery utilization.

Powerful MPPT Solar Charger: Two MPPT strings up to 7,500W each (22.5 A) with a 60‑450 V operating range capture maximum solar energy.

Versatile Battery Compatibility: Supports both lead‑acid and lithium batteries (with BMS) at 48 V, offering flexible storage options.

Comprehensive Monitoring: LCD HMI, RS485/RS232/USB interfaces and optional WiFi enable remote monitoring and control.

Durable Design: IP20 protection, operating from -10°C to 50°C, and rated up to 4,000 m altitude for rugged installations.

Compact Footprint: Weighs only 14 kg and measures 575 × 425 × 120 mm, fitting easily into limited spaces.

Overload Protection: Handles overloads up to 150% load for short periods, with defined time limits for safety.

Specification

Model	DFHY-12KW
Rated Input Voltage (VAC)	230V (default); 208 / 220 / 230 / 240
Voltage Range – Normal Mode (VAC)	90 ~ 280 ±3
Voltage Range – UPS Mode (VAC)	170 ~ 280 ±3
Input Frequency (Hz)	50 / 60 (Auto Adaptive)
Rated Capacity (W)	12,000W
Surge Power (W)	24,000W
Rated Output Voltage (VAC)	208 / 220 / 230 / 240
Power Factor (PF)	> 0.99
Output Frequency (Hz)	50 / 60 Hz ±0.1%
Switch Time (ms)	10ms (Normal Mode) / 10ms (UPS Mode)
Wave Form	Pure Sine Wave
Overload Capacity – Battery Mode	60s @ 102%–110% load; 10s @ 110%–130% load; 3s @ 130%–150% load; 0.2s @ >150% load
Max. Efficiency – Battery Mode	92.7% @ 48V DC
Parallel Operation	Not Available (NA)
Solar Charger Type	MPPT
Max PV Input Power (per string)	7,500W / 22.5A (× 2 strings)
MPPT Operating Voltage Range (VDC)	60 ~ 450
Max PV Open Circuit Voltage (VDC)	500
Max PV Charge Current (A)	160
Rated Battery Voltage (VDC)	48
Floating Charge Voltage (VDC)	54
Overcharge Protection Voltage (VDC)	61
Max AC Charge Current (A)	160
Max Combined Charge Current – PV + AC (A)	160
Supported Battery Types	Lead-Acid and Lithium (with BMS)
HMI Display	LCD
Communication Interfaces	RS485 / RS232 / USB / Dry Contact
Remote Monitoring	WiFi (Optional)
Ingress Protection	IP20
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-15°C ~ 60°C
Relative Humidity	5% ~ 95% (Non-condensing)
Net Weight	14 kg
Dimensions (W × H × D)	575 × 425 × 120 mm (without bracket)
Max. Operating Altitude	4,000m (derating above 1,000m)

Description

DEMUDA 12KW Solar Hybrid Inverter

Key Features & Benefits:

High Continuous Power: Provides a rated output of 12,000W, enough to run large commercial loads continuously.
Robust Surge Capability: Delivers up to 24,000W surge power for short‑term high‑demand equipment.
Wide Input Voltage Range: Accepts 90‑280V in normal mode and 170‑280V in UPS mode, ensuring stable operation across grid fluctuations.
Pure Sine Wave Output: Supplies a clean 50/60 Hz pure sine wave with >0.99 power factor for sensitive electronics.
Fast Switch Time: Switches between normal and UPS mode in just 10 ms, protecting loads from power interruptions.
High Battery Efficiency: Achieves 92.7% efficiency at 48 V DC, maximizing solar and battery utilization.
Powerful MPPT Solar Charger: Two MPPT strings up to 7,500W each (22.5 A) with a 60‑450 V operating range capture maximum solar energy.
Versatile Battery Compatibility: Supports both lead‑acid and lithium batteries (with BMS) at 48 V, offering flexible storage options.
Comprehensive Monitoring: LCD HMI, RS485/RS232/USB interfaces and optional WiFi enable remote monitoring and control.
Durable Design: IP20 protection, operating from -10°C to 50°C, and rated up to 4,000 m altitude for rugged installations.
Compact Footprint: Weighs only 14 kg and measures 575 × 425 × 120 mm, fitting easily into limited spaces.
Overload Protection: Handles overloads up to 150% load for short periods, with defined time limits for safety.

Ideal For:

Small to medium commercial businesses needing reliable backup power
Solar farm operators requiring high‑efficiency MPPT charging
Remote sites with unstable grid where UPS functionality is critical
Industrial workshops running heavy machinery and power tools
Data centers or server rooms demanding pure sine wave output
Agricultural facilities using irrigation pumps and processing equipment
Construction sites that need portable, high‑capacity power solutions

Summary:

The DEMUDA 12KW Solar Hybrid Inverter from Revolution Technology BD delivers 12,000W continuous and 24,000W surge power with a pure sine wave output and >0.99 power factor, making it ideal for demanding commercial and industrial loads. Its wide input voltage range, fast 10 ms switch time, and 92.7% battery efficiency ensure reliable operation during grid fluctuations and maximize solar energy use. Equipped with dual MPPT solar chargers, versatile battery compatibility, and comprehensive monitoring interfaces, it offers flexibility and control for diverse applications. Available now at Revolution Technology BD for businesses seeking robust, efficient hybrid power solutions.
