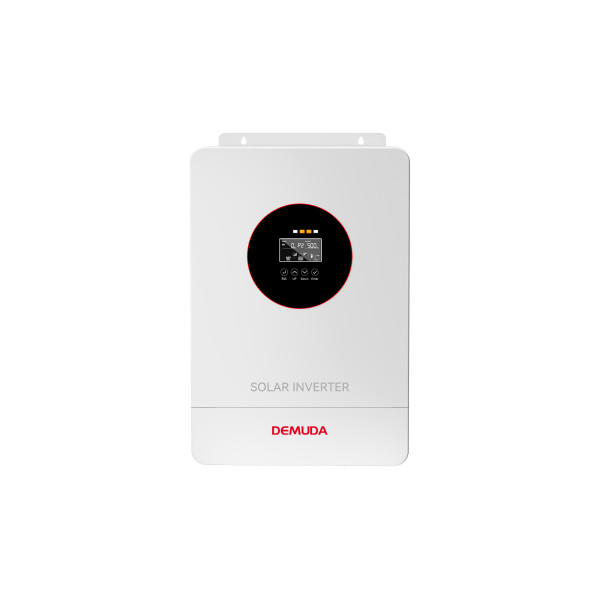

Name: DEMUDA 13.2KW Solar Hybrid Inverter
Brand: DEMUDA
SKU: 6790
Price: 116000 BDT
Availability: InStock

DEMUDA 13.2KW Solar Hybrid Inverter

৳ 116,000

Exclusive of all taxes

Genuine Product Fast Delivery Easy Returns

Key Features

High Overall Efficiency: Delivers more than 97% efficiency, minimizing energy loss during conversion.

Robust Power Output: Provides a continuous rated output of 12000W and a peak power of 22000VA for demanding loads.

Wide Input Voltage Flexibility: Accepts 170‑280V (UPS mode) and 90‑280V (APL mode) input, ensuring compatibility with varied grid conditions.

Dual High‑Capacity PV Inputs: Supports two 5500W solar panels (total 11kW) with MPPT range 90‑450VDC for efficient solar charging.

Fast Conversion Time: Switches to inverter mode in just 10ms, guaranteeing seamless UPS transition.

Versatile Battery Compatibility: Works with 48V lead‑acid or lithium batteries, covering a voltage range of 40‑60VDC.

Advanced Cooling System: Forced air cooling with a variable speed fan maintains optimal temperature under load.

Comprehensive Communication Options: Offers USB, RS485, WiFi, GPRS, and Dry Node control for remote monitoring and management.

Automatic Save Power Mode: Enters save power mode when load drops to ≤50W, reducing unnecessary energy consumption.

Strong Overload Capability: Handles up to 60A bypass phase overload current, protecting the system during spikes.

Broad Frequency Support: Auto‑detects 50/60Hz and operates within 47‑55Hz (50Hz) or 57‑65Hz (60Hz) ranges.

Certified Safety and EMC: Meets CE, UL1741, EN61000, and FCC Class B standards for reliable and safe operation.

Specification

Model	DFHY-13.2KW
Parallel Function	1–6
Allow Quantity	BG 1–6
Mains Mode Nominal Input Voltage	220/230Vac
Input Phase Voltage Range (UPS Mode)	170Vac–280Vac ±2%
Input Phase Voltage Range (APL Mode)	90Vac–280Vac ±2%
Frequency	50Hz/60Hz (Auto Detection)
Frequency Range (50Hz)	47±0.3Hz–55±0.3Hz
Frequency Range (60Hz)	57±0.3Hz–65±0.3Hz
Max Efficiency (Bypass & Inverter)	>95%
Conversion Time	10ms (Typical Value)
Max Bypass Phase Overload Current	60A
Output Waveform	Pure Sine Wave
Rated Output Power	12000VA / 12000W
Power Factor	1
Nominal Output Voltage	230Vac
Output Frequency Range	50Hz±0.3Hz / 60Hz±0.3Hz
Max Efficiency	>97%
Peak Power	22000VA
Loaded Motor Capability	7HP
Nominal Battery Input Voltage	48V (Min. Start Voltage 44V)
Battery Voltage Range	40VDC–60VDC
Save Power Mode	Load ≤50W Enter Save Power Mode
Battery Type	Lead Acid or Lithium Battery
Max AC Charge Current (Configurable)	150A
Charge Voltage Range	40V–60VDC
Max PV Open Circuit Voltage	500VDC
PV Operating Voltage Range	80VDC–500VDC
MPPT Voltage Range	90VDC–450VDC
Battery Voltage Range (Solar Charge)	40–60VDC
Max PV Input Power	5500W × 2 / 22A × 2
Charge Current Range (Configurable)	0–150A
Max Hybrid Charge Current (PV+AC)	150A
Max Hybrid Charge Current (Configurable)	0–150A
Safety Certification	CE (IEC62109-1,-2), UL1741
EMC Certification Level	EN61000-6-1, EN61000-6-3, FCC 15 Class B
Operating Temperature	-15°C to 55°C
Storage Temperature	-25°C to 55°C
Humidity Range	5% to 95% (Three Anti-Paint Protection)
Noise	≤60dB
Cooling Method	Forced Air Cooling, Variable Speed Fan
Communication	USB / RS485 / WiFi / GPRS / Dry Node Control
Dimensions (L×W×D)	550 × 365 × 130 mm
Weight	20 kg

Description

DEMUDA 13.2KW Solar Hybrid Inverter

Key Features & Benefits:

High Overall Efficiency: Delivers more than 97% efficiency, minimizing energy loss during conversion.
Robust Power Output: Provides a continuous rated output of 12000W and a peak power of 22000VA for demanding loads.
Wide Input Voltage Flexibility: Accepts 170‑280V (UPS mode) and 90‑280V (APL mode) input, ensuring compatibility with varied grid conditions.
Dual High‑Capacity PV Inputs: Supports two 5500W solar panels (total 11kW) with MPPT range 90‑450VDC for efficient solar charging.
Fast Conversion Time: Switches to inverter mode in just 10ms, guaranteeing seamless UPS transition.
Versatile Battery Compatibility: Works with 48V lead‑acid or lithium batteries, covering a voltage range of 40‑60VDC.
Advanced Cooling System: Forced air cooling with a variable speed fan maintains optimal temperature under load.
Comprehensive Communication Options: Offers USB, RS485, WiFi, GPRS, and Dry Node control for remote monitoring and management.
Automatic Save Power Mode: Enters save power mode when load drops to ≤50W, reducing unnecessary energy consumption.
Strong Overload Capability: Handles up to 60A bypass phase overload current, protecting the system during spikes.
Broad Frequency Support: Auto‑detects 50/60Hz and operates within 47‑55Hz (50Hz) or 57‑65Hz (60Hz) ranges.
Certified Safety and EMC: Meets CE, UL1741, EN61000, and FCC Class B standards for reliable and safe operation.

Ideal For:

Small to medium commercial buildings needing reliable backup power
Rural households looking to combine solar and grid power
Industrial workshops with 7HP motor loads
Data centers requiring seamless UPS transition
Solar installers seeking a versatile hybrid inverter
Agricultural farms powering irrigation pumps
Remote telecom towers needing off‑grid power solutions

Summary:

The DEMUDA 13.2KW Solar Hybrid Inverter from Revolution Technology BD offers over 97% efficiency, 12kW continuous output and 22kVA peak power, making it ideal for both commercial and off‑grid applications. Its wide input voltage range, dual 5.5kW PV inputs, and fast 10ms conversion ensure reliable performance under varying grid conditions. Certified for safety and equipped with multiple communication interfaces, it provides flexible monitoring and control. Available now at Revolution Technology BD for businesses and households seeking robust hybrid power solutions.
