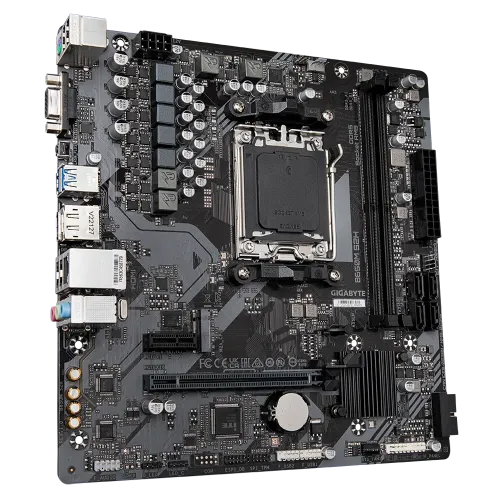

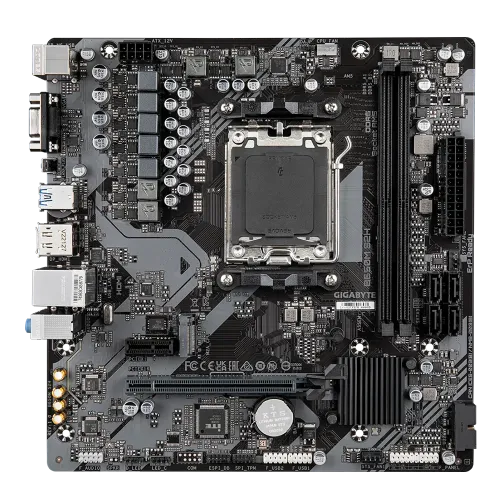

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
Exclusive of all taxes
Product Details
Key Features
Model:
B650M S2H
Supported
CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported
Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics

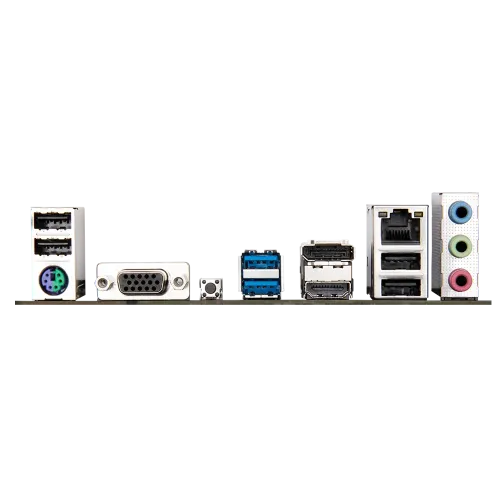

Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
Features:
Realtek GbE LAN chip
Specification
|
Supported CPU |
AMD Socket AM5, support for: |
|
Chipset |
AMD B650 |
|
BIOS |
1 x 256 Mbit flash |
|
Form Factor |
Micro ATX Form Factor; 23.0cm x
22.5cm |
|
Audio |
Realtek Audio CODEC |
|
PCI |
CPU: |
|
Type |
DDR5 |
|
Slots |
2 x DIMM |
|
Supported Memory |
Support for DDR5 6400(OC) /
6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
|
Maximum Memory |
up to 96 GB (48 GB single DIMM
capacity) |
|
Graphics |
Integrated Graphics Processor: |
|
HDMI |
1 x HDMI |
|
Display Port (s) |
1 x DisplayPort |
|
D-Sub (s) |
1 x D-Sub port |
|
USB (s) |
CPU: |
|
LAN Port (s) |
Realtek GbE LAN chip (1 Gbps/100
Mbps/10 Mbps) |
|
Supported Storage |
CPU: |
|
RAID |
RAID 0, RAID 1, and RAID 10
support for NVMe SSD storage devices |
|
Audio |
3 x audio jacks |
|
Internal I/O Ports |
Internal I/O Connectors |
|
TPM (Trusted Platform Module ) |
1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
Special Features |
Support for GIGABYTE Control
Center (GCC) |
|
Bundled Software |
Norton Internet Security (OEM
version) |
|
Manufacturing Warranty |
3 Years |
Description
GIGABYTE
B650M S2H AM5 Micro-ATX Motherboard
The
GIGABYTE B650M S2H Motherboard is a high-performance
motherboard designed to meet today's computing demands, with a slew of advanced
capabilities and technologies to support AMD Ryzen 7000 Series Processors and
provide exceptional performance for a smooth computing experience. This motherboard is
completely compatible with AMD Ryzen 8000 & 7000 Series Processors,
allowing you to take advantage of the newest CPU technology for your computing
requirements. The GIGABYTE B650M S2H Motherboard has a 5+2+2 Phases Digital VRM
Solution, which aids in the effective distribution of power to your CPU,
improving stability and performance during heavy workloads like gaming and
content production. This motherboard, which has two SMD DIMMs, supports AMD
EXPO and Intel XMP memory modules, allowing you to optimize the memory
performance of your system. DDR5 memory has quicker data transfer rates than
its predecessors, allowing for smoother multitasking and speedier program
loading. This motherboard supports high-speed storage options, with a PCIe 4.0
x4 M.2 Connector, making it suitable for installing super-fast SSDs that make
use of the PCIe 4.0 interface, offering lightning-fast data access. The PCIe
x16 slot on the motherboard has a quick-release design, which makes it easy to
install and remove graphics cards without the use of tools or excessive force,
providing convenient and efficient maintenance. It has a GbE LAN (Gigabit
Ethernet) connector for fast and consistent internet access, which is essential
for online gaming, streaming, and other data-intensive operations. With
multiple display outputs, including DP, HDMI, and D-Sub, this motherboard
supports various display options, making it versatile for different setups and
multi-monitor configurations. The Smart Fan 6 technology includes multiple
temperature sensors and hybrid fan headers with a FAN STOP feature. This allows
for precise and efficient cooling, adjusting fan speeds based on the
temperature to maintain an optimal balance between performance and noise. This
convenient feature enables you to update the motherboard's BIOS without needing
to install the CPU, memory, or graphics card, simplifying the process of
keeping your system up to date with the latest firmware.
