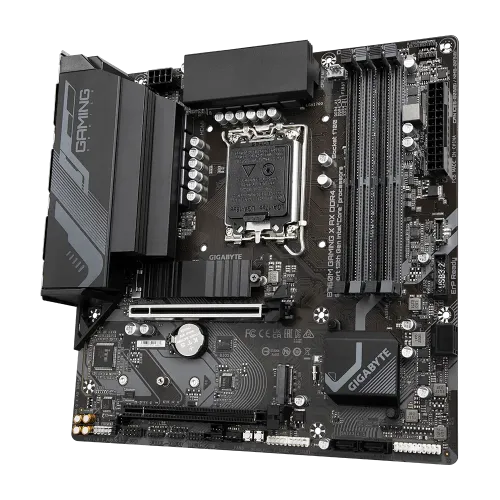

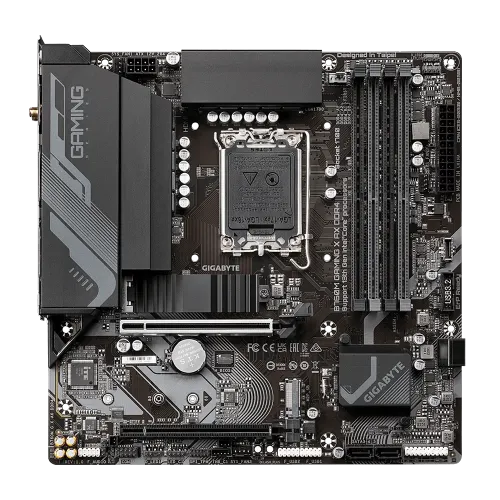

GIGABYTE B760M GAMING X DDR4 mATX Motherboard
Exclusive of all taxes
Product Details
Key Features
Model: B760M GAMING X DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip
| Specification | |
|---|---|
| CPU Support | Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron (LGA1700) |
| Chipset | Intel B760 |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Memory Type | DDR4 |
| Memory Slots | 4 x DIMM |
| Max Memory | 128GB |
| Memory Speed | Up to DDR4 5333(O.C.) |
| PCIe x16 Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4 |
| M.2 Slots | 2 x PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (SATA only) |
| Audio | Realtek HD Audio (7.1 Channel) + S/PDIF Out |
| Ethernet | Realtek 2.5GbE |
| Wireless | No |

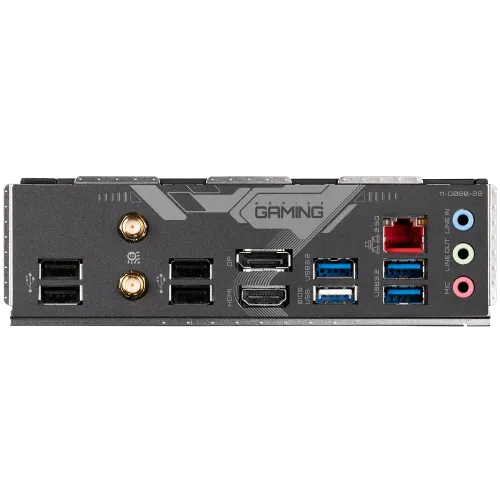

| Video Outputs | HDMI, DisplayPort |
| USB Ports | 1x USB-C 3.2 Gen2, 5x USB 3.2 Gen1, 9x USB 2.0 |
| Internal Headers | 1x USB-C 3.2 Gen2, 1x USB 3.2 Gen1, 2x USB 2.0, 4x fan, 4x RGB |
| Special Features | Q-Flash Plus, Thunderbolt add-in card support |
| Warranty | 3 years |
Description
GIGABYTE B760M GAMING X DDR4 mATX MotherboardThe GIGABYTE B760M GAMING X DDR4 is an mATX motherboard built for Intel CPUs from the 13th and 12th generations. It offers an 8+1+1 phase hybrid digital VRM technology for unrivaled performance, dual channel DDR4 compatibility with 4 DIMMs, and next-generation storage with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard and improved thermal design assure VRM power stability and M.2 SSD performance. The 14th Gen Motherboard has an EZ-Latch PCIe 4.0x16 slot with a quick-release design, a fast 2.5GbE LAN, and enhanced connection choices such as front USB-C 10Gb/s, DP, and HDMI. Multiple temperature sensors and hybrid fan headers with fan stops are included in the Smart Fan 6 technology. The Q-Flash Plus function enables simple BIOS updates without the need to install the CPU, RAM, or graphics card.
