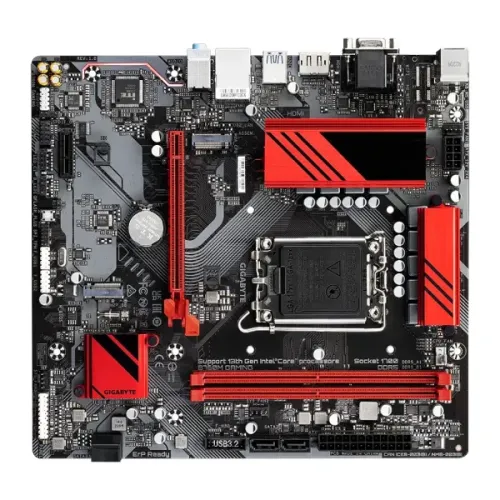

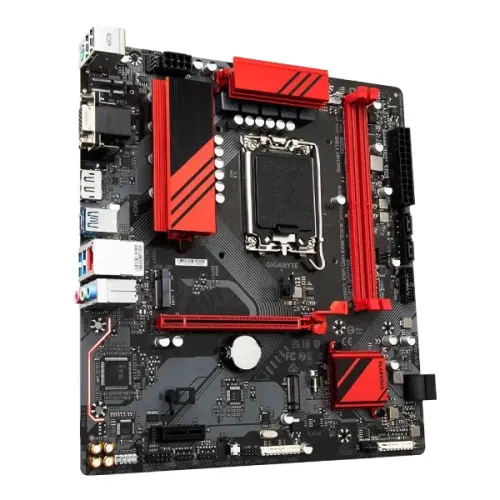

GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
Exclusive of all taxes
Product Details
Key Features
Model: B760M GAMING DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 128GB 8000(OC)

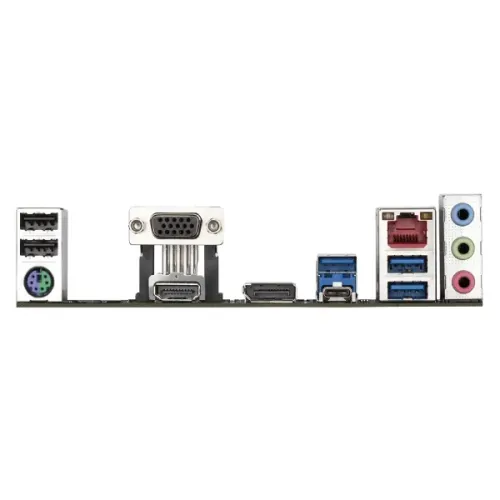

Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Specification
| Model | GIGABYTE B760 Micro ATX Motherboard |
| CPU Support | Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron (LGA1700) |
| Chipset | Intel B760 |
| Form Factor | Micro ATX (24.4cm x 22.5cm) |
| Memory Slots | 2 x DDR5 DIMM |
| Max Memory | 128GB |
| Memory Speed | Up to DDR5 8000(O.C.) |
| PCIe x16 Slot | 1 x PCIe 4.0 x16 |
| PCIe x1 Slot | 1 x PCIe 3.0 x1 |
| M.2 Slots | 2 x PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (SATA only) |
| Audio | Realtek HD Audio (7.1 Channel) + S/PDIF Out |
| Ethernet | Realtek 2.5GbE |
| Wireless | No |
| Video Outputs | HDMI 2.1, DisplayPort 1.2, D-Sub |
| USB Ports | 1x USB-C 3.2 Gen1, 5x USB 3.2 Gen1, 6x USB 2.0 |
| Internal Headers | 1x USB 3.2 Gen1, 2x USB 2.0, 4x fan, 2x RGB |
| Legacy Ports | PS/2 Combo, Serial Port |
| Special Features | Q-Flash Plus, GIGABYTE Control Center |
| Bundled Software | Norton Internet Security |
| Warranty | 3 Years |
Description
GIGABYTE B760M GAMING DDR5 Micro ATX MotherboardThe GIGABYTE B760M GAMING DDR5 Micro ATX motherboard is a powerful and versatile platform designed for gaming enthusiasts and power users. It supports 14th, 13th, and 12th Gen Intel processors using the LGA1700 socket, offering compatibility with the latest technologies. With support for up to 2 DDR5 memory modules, it can accommodate a maximum capacity of 128GB and speeds up to 8000MHz (OC), providing ample room for multitasking and high-performance applications. The motherboard features multiple graphics outputs, including 1x HDMI, 1x DisplayPort, and 1x D-Sub port, catering to various display needs. It is equipped with a Realtek 2.5GbE LAN chip, enabling fast network speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps. The Hybrid 6+2+1 Phases Digital VRM Solution ensures stable power delivery, while the dual-channel DDR5 support with XMP compatibility allows for efficient memory performance. For storage, the board includes two PCIe 4.0 x4 M.2 connectors, offering high-speed SSD storage options. The EZ-Latch quick-release design on the PCIe 4.0x16 slot makes installing and removing expansion cards hassle-free. The motherboard also boasts Smart Fan 6 technology, which features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for quiet operation. Additionally, Q-Flash Plus enables BIOS updates without the need to install the CPU, memory, or graphics card, simplifying system maintenance. With its comprehensive feature set and support for cutting-edge components, the GIGABYTE B760M GAMING DDR5 Micro ATX motherboard is an excellent choice for those seeking a reliable and future-proof platform.
