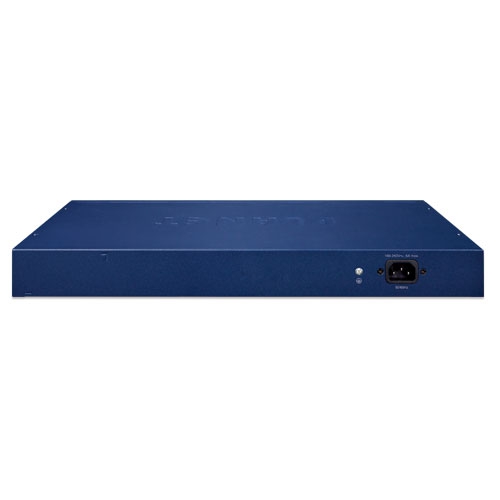

GS-6311-24T4X 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Contact us for pricing
Product Details
Key Features
High-Capacity Network Switch: The Safenet 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch is designed to handle high-bandwidth applications and support up to 24 Gigabit PoE+ ports.
PoE+ for Easy Device Deployment: The switch features 24 Gigabit PoE+ ports that can deliver both power and data to devices like IP cameras, wireless access points, and VoIP phones, making it easy to deploy devices in remote locations.
High-Speed Fiber Uplink Connectivity: The switch features 2 SFP ports for high-speed fiber uplink connectivity and network expansion, allowing for fast and reliable data transfer.
Selectable Operation Mode: The switch features a DIP switch that allows for selectable operation mode: Standard, VLAN, Extend, providing flexibility and customization options.
High-Power Surge Protection: The switch features 6KV surge protection and 8KV ESD protection, ensuring reliable operation and protection against power surges and electrical discharges.
Efficient Power Consumption: The switch has a maximum power consumption of 272 watts and a power dissipation of 928 BTU, making it an energy-efficient solution for data centers and network closets.
High-Speed Switch Fabric: The switch features a non-blocking switch fabric of 52 Gbps, providing high-speed data transfer and low latency.
Advanced Flow Control: The switch features IEEE 802.3x pause frame (full duplex) and back pressure (half duplex) flow control, ensuring reliable data transfer and minimizing packet loss.
Large MAC Address Table: The switch features a large MAC address table of 8K entries, allowing for a large number of devices to be connected and managed.
Jumbo Frame Support: The switch supports jumbo frames of up to 9216 bytes, allowing for efficient data transfer and minimizing packet fragmentation.
PoE Power Budget: The switch has a PoE power budget of 250 watts, providing enough power to support a large number of devices.
Wide Operating Temperature Range: The switch operates within a wide temperature range of 0 ~ 50°C, making it suitable for deployment in various environments.
10/100/1000BASE-T Copper Ports | 24 auto-MDI/MDI-X ports |
802.3af/802.3at PoE+ Injector Port | 24 |
1000BASE-X SFP/mini-GBIC Slots | 2 |
DIP Switch | Selectable operation mode: Standard, VLAN, Extend |
Dimensions (W x D x H) | 441 x 207 x 44 mm (1U height) |
Enclosure | Metal |
Weight | 2.44 kg |
Power Requirements | 100~240V AC, 50/60Hz, 5A max |
Power Consumption/Dissipation | Max. 272 watts / 928 BTU |
Thermal Fan | 2 |
Protection | 6KV surge protection, 8KV ESD protection |
LED Indicators | System: Power (Green), PoE Usage 80% (Green); RJ45 Ports: LNK/ACT (Green), PoE-in-Use (Amber); SFP Ports: LNK/ACT (Green) |
Switch Architecture | Store-and-Forward |
Switch Fabric | 52 Gbps / non-blocking |
Switch Throughput @64 bytes | 38.7 Mpps |
MAC Address Table | 8K entries |
Jumbo Frame | 9216 bytes |
Flow Control | IEEE 802.3x pause frame (full duplex); back pressure (half duplex) |
PoE Standard | IEEE 802.3at PoE+, backward compatible with IEEE 802.3af |
PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
PoE Power Output | 54V DC, 300mA max 15.4W (802.3af); 54V DC, 600mA max 30W (802.3at) |
PD Alive Check | Yes |
PoE Power Budget | 250 watts |
Number of PDs (7W) | 24 |
Number of PDs (15.4W) | 16 |
Number of PDs (30W) | 8 |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3az |
Operating Temperature | 0 ~ 50°C |
Operating Humidity | 5 ~ 95% (non-condensing) |
Storage Temperature | -10 ~ 70°C |
Storage Humidity | 5 ~ 95% (non-condensing) |
Description
Safenet 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Key Features & Benefits:
- High-Capacity Network Switch: The Safenet 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch is designed to handle high-bandwidth applications and support up to 24 Gigabit PoE+ ports.
- PoE+ for Easy Device Deployment: The switch features 24 Gigabit PoE+ ports that can deliver both power and data to devices like IP cameras, wireless access points, and VoIP phones, making it easy to deploy devices in remote locations.
- High-Speed Fiber Uplink Connectivity: The switch features 2 SFP ports for high-speed fiber uplink connectivity and network expansion, allowing for fast and reliable data transfer.
- Selectable Operation Mode: The switch features a DIP switch that allows for selectable operation mode: Standard, VLAN, Extend, providing flexibility and customization options.
- High-Power Surge Protection: The switch features 6KV surge protection and 8KV ESD protection, ensuring reliable operation and protection against power surges and electrical discharges.
- Efficient Power Consumption: The switch has a maximum power consumption of 272 watts and a power dissipation of 928 BTU, making it an energy-efficient solution for data centers and network closets.
- High-Speed Switch Fabric: The switch features a non-blocking switch fabric of 52 Gbps, providing high-speed data transfer and low latency.
- Advanced Flow Control: The switch features IEEE 802.3x pause frame (full duplex) and back pressure (half duplex) flow control, ensuring reliable data transfer and minimizing packet loss.
- Large MAC Address Table: The switch features a large MAC address table of 8K entries, allowing for a large number of devices to be connected and managed.
- Jumbo Frame Support: The switch supports jumbo frames of up to 9216 bytes, allowing for efficient data transfer and minimizing packet fragmentation.
- PoE Power Budget: The switch has a PoE power budget of 250 watts, providing enough power to support a large number of devices.
- Wide Operating Temperature Range: The switch operates within a wide temperature range of 0 ~ 50°C, making it suitable for deployment in various environments.
Ideal For:
- Businesses with large networks and high-bandwidth applications
- Surveillance environments requiring high-speed data transfer
- Data centers and network closets requiring high-power surge protection
- IT administrators looking for energy-efficient solutions
- Network engineers requiring high-speed switch fabric and advanced flow control
- Small and medium-sized businesses with limited IT resources
- Organizations with remote locations and limited access to power outlets
Summary:
The Safenet 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch is a high-capacity network switch designed for business and surveillance environments. It features 24 Gigabit PoE+ ports, 2 SFP ports for high-speed fiber uplink connectivity, and a wide range of features to support high-bandwidth applications. The switch is ideal for businesses with large networks, surveillance environments, data centers, and network closets. It is available at Revolution Technology BD and is a reliable solution for high-speed data transfer and power supply.
