Hikvision DS-7232HGHI-M2 32 Channel H.265 DVR

SPECIFICATION

DESCRIPTION

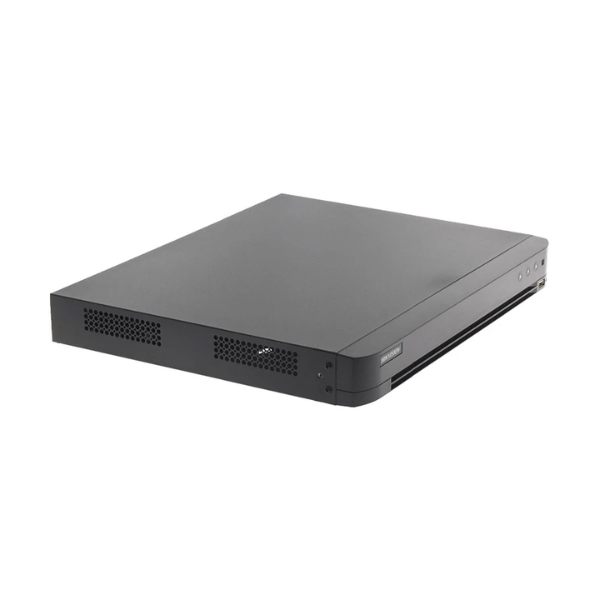

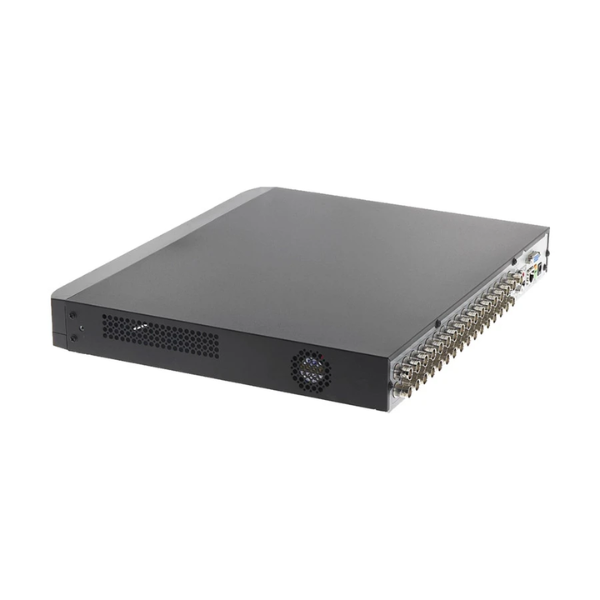

Hikvision DS-7232HGHI-M2 32 Channel H.265 DVR

The Hikvision DS-7232HGHI-M2 is a 32-channel HD 720p DVR designed for large-scale surveillance systems requiring reliable performance and advanced analytics. This Value Series recorder incorporates deep learning technology and efficient video compression in a compact 1U form factor.

Intelligent Motion Detection 2.0: Powered by deep learning technology, the DVR features Motion Detection 2.0 that accurately classifies human and vehicle targets while significantly reducing false alarms caused by irrelevant objects such as leaves, lights, or small animals. This enables security personnel to focus on genuine threats and quickly search recorded footage by object or event type for efficient forensic analysis .

Advanced Video Compression: Supporting H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 compression standards, this DVR dramatically reduces file sizes and storage requirements while maintaining excellent video quality. This technology allows for extended recording periods and lower storage costs, making it ideal for long-term monitoring applications .

Versatile Camera Compatibility: The DS-7232HGHI-M2 accepts multiple video formats including HDTVI, AHD, CVI, CVBS, and IP cameras. With 32 analog channels and support for up to 18 IP camera inputs (up to 5 MP resolution), it offers hybrid system flexibility for integrating existing analog infrastructure with modern IP cameras. Audio via coaxial cable enables synchronized audio and video transmission over long distances .

Extended Transmission Range: With a maximum transmission range of 1200 meters for 720p HDTVI signals, this DVR is ideal for large facilities such as factories, warehouses, or multi-building installations requiring reliable, high-quality monitoring over long distances .

Reliable Storage and Playback: Equipped with two SATA interfaces supporting up to 10 TB per disk, this DVR provides ample storage capacity for extended recording periods. The 16-channel synchronous playback capability allows simultaneous review of multiple camera feeds for comprehensive incident investigation .

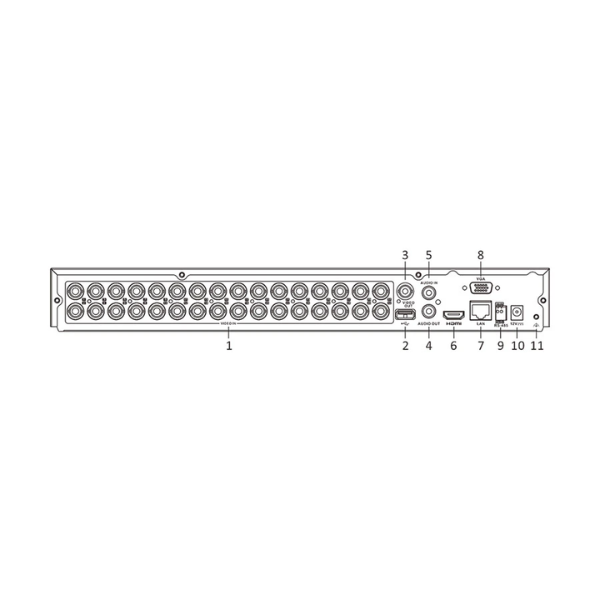

Convenient Monitoring and Control: Video outputs include HDMI and VGA ports supporting up to 1080P resolution for crisp display on modern monitors. Two USB ports (front USB 2.0 and rear USB 3.0) facilitate easy backup and mouse control. The Gigabit Ethernet interface with Hik-Connect support enables remote access via smartphone or computer from anywhere .

The Hikvision DS-7232HGHI-M2 32 Channel H.265 DVR delivers professional-grade surveillance features, intelligent analytics, and reliable performance for large-scale security installations. Backed by a 1-year warranty, it provides dependable recording for businesses, warehouses, educational institutions, and multi-building facilities.
