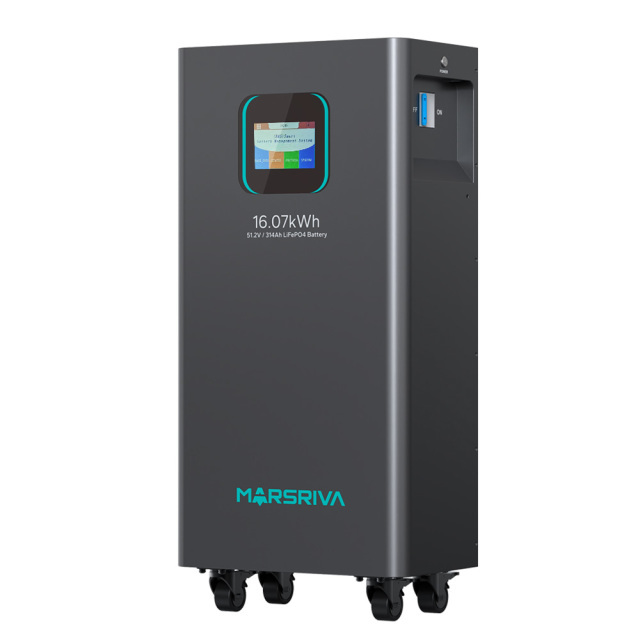

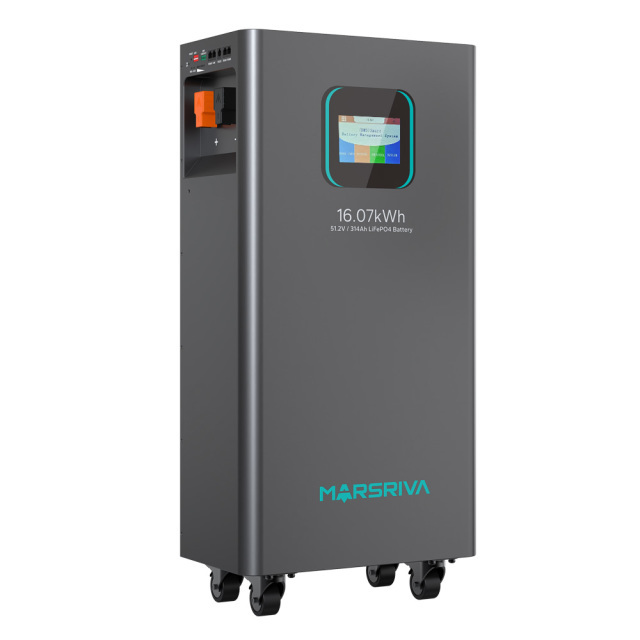

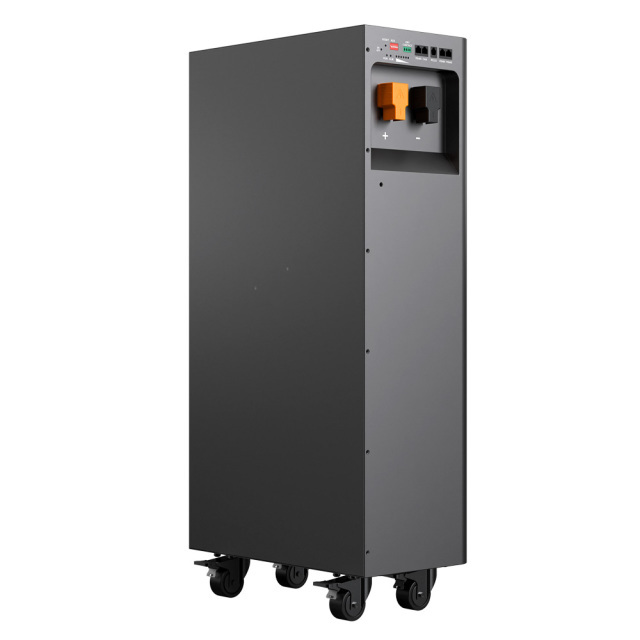

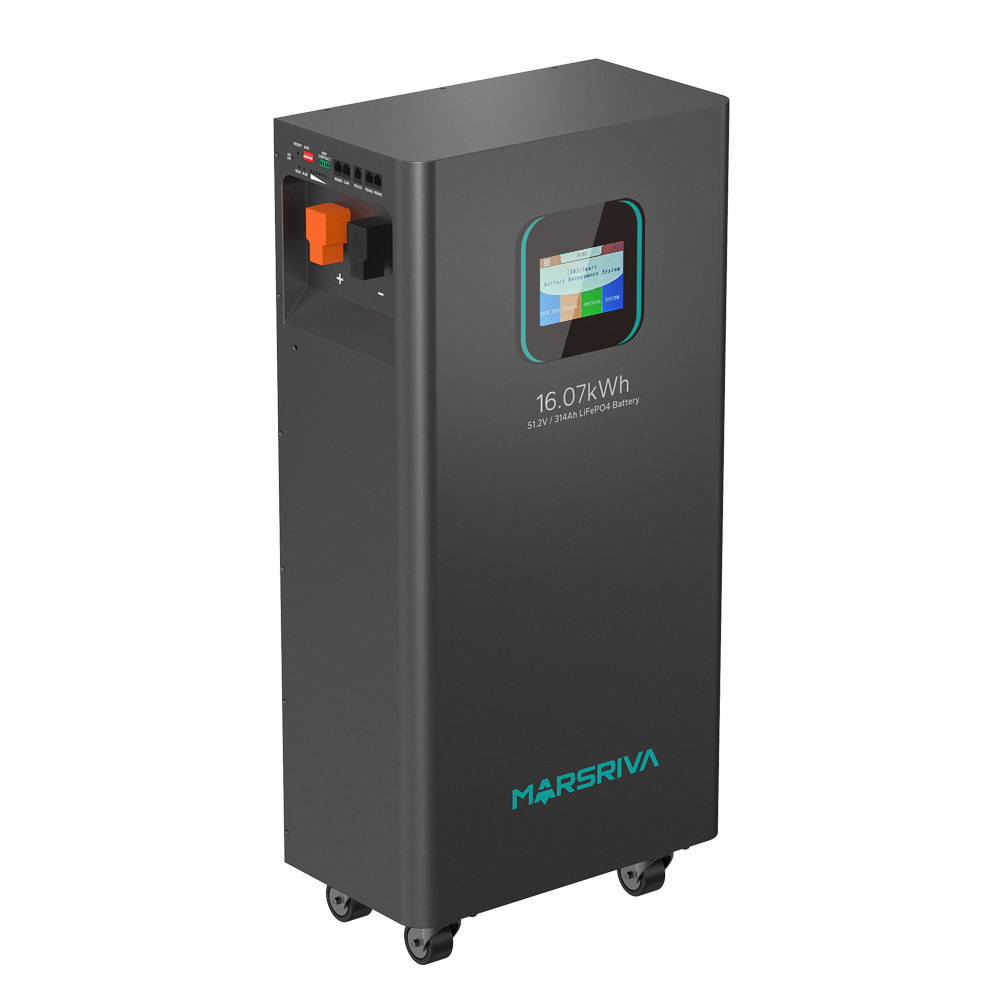

MR LBP48-314-FSD 16.07kWh 51.2V 314Ah LiFePO4 Battery
Contact us for pricing
Product Details
Key Features
High Energy Density: With 16.07kWh storage energy and 51.2V nominal voltage, it delivers substantial power for large-scale applications.
Long Cycle Life: Offers ≥8000 cycles at 25°C, ensuring durability and cost savings over time.
Robust Design Life: Designed for ≥10 years of reliable operation in demanding environments.
Fast Charging Capability: Supports up to 200A continuous charging and 210A peak for rapid energy replenishment.
High Discharge Performance: Handles 200A continuous and 210A peak discharging, suitable for high-load scenarios.
Low Internal Resistance: ≤13.9mΩ internal resistance minimizes heat loss and improves efficiency.
Versatile Communication: BMS with 485/CAN, RS232, and parallel options for seamless integration.
Wide Temperature Range: Operates from -20℃ to 55℃ for both charging and discharging, ideal for varied climates.
Scalable Parallel Connections: Can connect up to 16 units in parallel, allowing capacity scaling.
Durable Construction: Dimensions 428×238×825mm and weight ~125kg make it robust yet manageable.
Warranty Assurance: 5-year warranty provides peace of mind for commercial and residential users.
Model | MR-LBP48-314-FSD |
Battery Type | LiFePO4 Battery (Grade A) |
Nominal Voltage | 51.2V |
Nominal Capacity | 314Ah |
Storage Energy | 16.07kWh |
Battery Internal Resistance | ≤13.9mΩ |
Cycle Life | ≥8000 @25°C, to 70% EOL |
Design Life | ≥10 years |
Max. Charging Current | 200A |
Max. Discharging Current | 200A |
Peak Charging Current | 210A / 2s |
Peak Discharging Current | 210A / 2s |
Communication | BMS(485/CAN), RS232, Parallel |
Number of Parallel Connections | Max. 16 units |
Charging Temperature | 0℃ to 55℃ |
Discharging Temperature | -20℃ to 55℃ |
Storage Temperature | -5°C ~ 30°C |
Humidity | 5% – 95% |
Dimension (W×D×H) | 428 × 238 × 825mm |
Weight | ≈125kg |
Warranty | 5 Years |
Description
MR LBP48-314-FSD 16.07kWh 51.2V 314Ah LiFePO4 Battery
Key Features & Benefits:
- High Energy Density: With 16.07kWh storage energy and 51.2V nominal voltage, it delivers substantial power for large-scale applications.
- Long Cycle Life: Offers ≥8000 cycles at 25°C, ensuring durability and cost savings over time.
- Robust Design Life: Designed for ≥10 years of reliable operation in demanding environments.
- Fast Charging Capability: Supports up to 200A continuous charging and 210A peak for rapid energy replenishment.
- High Discharge Performance: Handles 200A continuous and 210A peak discharging, suitable for high-load scenarios.
- Low Internal Resistance: ≤13.9mΩ internal resistance minimizes heat loss and improves efficiency.
- Versatile Communication: BMS with 485/CAN, RS232, and parallel options for seamless integration.
- Wide Temperature Range: Operates from -20℃ to 55℃ for both charging and discharging, ideal for varied climates.
- Scalable Parallel Connections: Can connect up to 16 units in parallel, allowing capacity scaling.
- Durable Construction: Dimensions 428×238×825mm and weight ~125kg make it robust yet manageable.
- Warranty Assurance: 5-year warranty provides peace of mind for commercial and residential users.
Ideal For:
- Solar energy storage for residential homes
- Grid-scale battery backup systems
- Electric vehicle battery packs
- Industrial machinery power backup
- Off-grid remote installations
- Renewable energy farms
- Disaster relief power solutions
Summary:
The MR LBP48-314-FSD is a high‑capacity LiFePO4 battery offering 16.07kWh of storage energy at 51.2V, designed for longevity with ≥8000 cycles and a 10‑year design life. Its fast charging and discharging capabilities, low internal resistance, and wide operating temperature range make it suitable for solar storage, industrial backup, and EV applications. Available at Revolution Technology BD, this battery provides reliable, scalable power solutions for both commercial and residential users.
