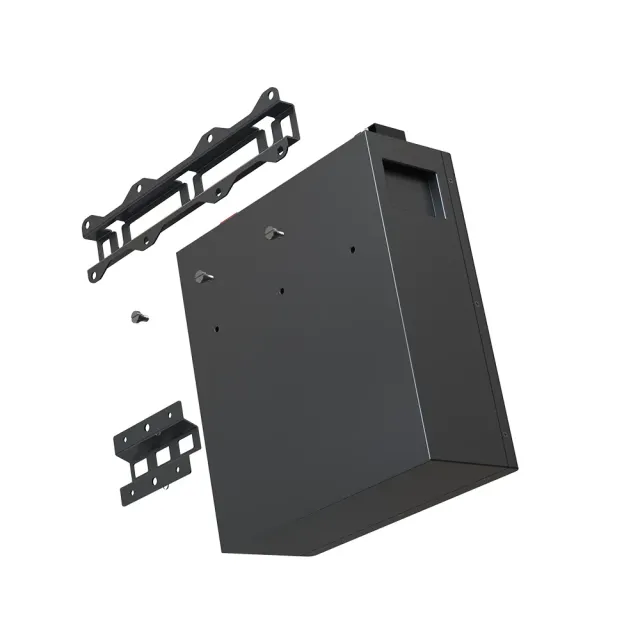

MR LFP24-100-WMT lithium power battery
Contact us for pricing
Product Details
Key Features
High Energy Density: With 2.56kWh nominal energy and 25.6V voltage, it delivers robust power for large installations.
Long Cycle Life: Offers ≥6000 cycles at 25°C, ensuring longevity and cost savings.
Fast Charging Capability: Max charging current of 105A allows rapid recharge without compromising safety.
Safe Discharging: Max discharging current of 120A with over‑current protection at 125A protects against overload.
Voltage Protection: Over‑voltage protection at 29.2V and under‑voltage at 21.6V maintain battery integrity.
Passive Cell Balancing: Ensures uniform cell performance without active balancing circuitry.
Low Self‑Consumption: ≤200µA power‑off consumption keeps standby losses minimal.
Scalable Parallel Operation: Can be connected in parallel up to 15 units for higher capacity needs.
Robust Communication: Supports BMS(485/CAN), RS232, Bluetooth & WiFi for flexible monitoring.
Wide Temperature Range: Operates from -20°C to 55°C for charging and discharging, 0°C to 40°C for storage.
Compact Design: Dimensions 360×150×400mm and 28kg weight fit diverse installation spaces.
5‑Year Warranty: Provides peace of mind with a long-term guarantee.
Model | MR-LFP24-100-WMT |
Battery Type | LiFePO4 Battery |
Nominal Voltage | 25.6V |
Rated Capacity | 100Ah |
Nominal Energy | 2.56kWh |
Cycle Life | ≥6000 @25°C, to 70% EOL |
Nominal Charge Current | 50A |
Nominal Discharge Current | 100A |
Max. Charging Current | 105A |
Max. Discharging Current | 120A |
Charge Over-current Protection | 110A |
Discharge Over-current Protection | 125A |
Over-voltage Protection | 29.2V |
Under-voltage Protection | 21.6V |
Cell Balance Function | Passive Balance |
Power Off Self-Consumption | ≤200µA |
Parallel Capacity | Up to 15 units |
Communication | BMS(485/CAN), RS232, Parallel, Bluetooth&WiFi Module |
Monitoring | PC Software, Mobile APP |
Charge Ambient Temperature | 0°C to 55°C |
Discharge Ambient Temperature | -20°C to 55°C |
Storage Temperature | 0°C to 40° |
Humidity | 5% – 95% |
Dimensions (W × D × H) | 360 × 150 × 400 (437) mm |
Approx. Weight | 28kg |
Warranty | 5 Years |
Description
MR LFP24-100-WMT lithium power battery
Key Features & Benefits:
- High Energy Density: With 2.56kWh nominal energy and 25.6V voltage, it delivers robust power for large installations.
- Long Cycle Life: Offers ≥6000 cycles at 25°C, ensuring longevity and cost savings.
- Fast Charging Capability: Max charging current of 105A allows rapid recharge without compromising safety.
- Safe Discharging: Max discharging current of 120A with over‑current protection at 125A protects against overload.
- Voltage Protection: Over‑voltage protection at 29.2V and under‑voltage at 21.6V maintain battery integrity.
- Passive Cell Balancing: Ensures uniform cell performance without active balancing circuitry.
- Low Self‑Consumption: ≤200µA power‑off consumption keeps standby losses minimal.
- Scalable Parallel Operation: Can be connected in parallel up to 15 units for higher capacity needs.
- Robust Communication: Supports BMS(485/CAN), RS232, Bluetooth & WiFi for flexible monitoring.
- Wide Temperature Range: Operates from -20°C to 55°C for charging and discharging, 0°C to 40°C for storage.
- Compact Design: Dimensions 360×150×400mm and 28kg weight fit diverse installation spaces.
- 5‑Year Warranty: Provides peace of mind with a long-term guarantee.
Ideal For:
- Solar power storage for residential homes
- Backup power systems for small businesses
- Electric vehicle battery packs
- Off‑grid renewable energy installations
- Industrial energy management
- Portable power stations
- High‑capacity UPS systems
Summary:
The MR LFP24-100-WMT lithium power battery delivers 2.56kWh of energy with a 25.6V nominal voltage and 100Ah capacity, making it ideal for solar, backup, and industrial applications. Its 6000‑cycle life, fast charging, and robust safety features such as over‑voltage and over‑current protection ensure reliable performance. Available at Revolution Technology BD, this battery supports scalable parallel setups and offers a 5‑year warranty for added confidence.
