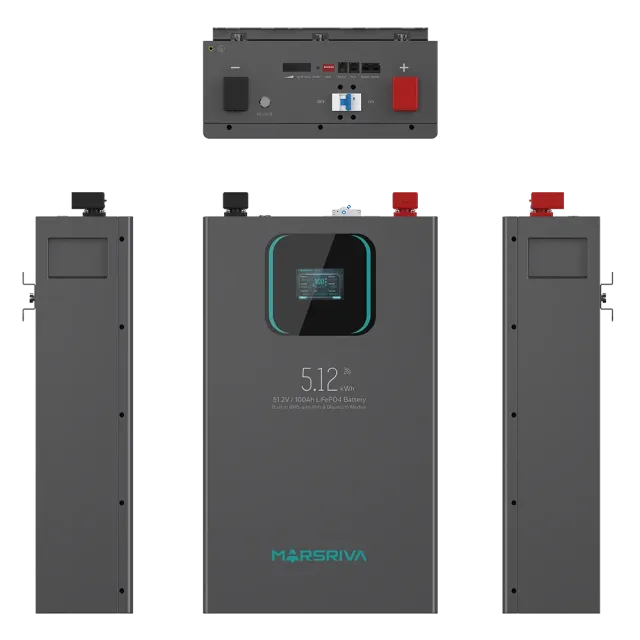

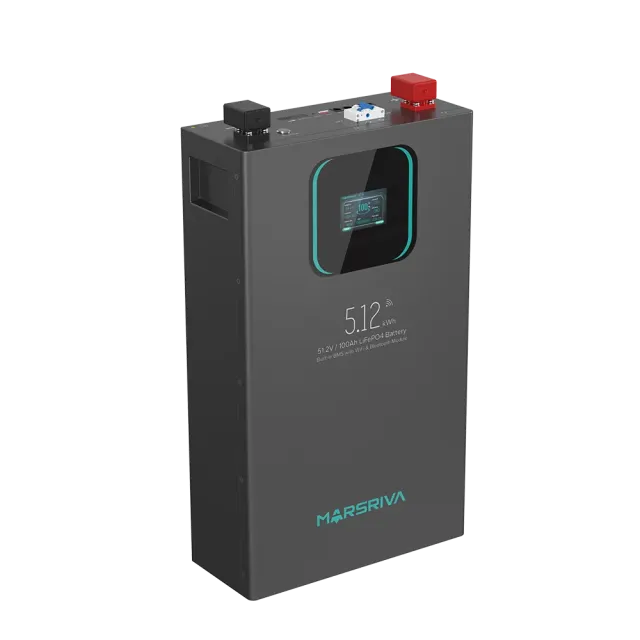

MR-LFP48-100-WMT LiFePO4 5.12kWh 51.2V 100Ah Battery
Contact us for pricing
Product Details
Key Features
High Energy Density: 5.12kWh energy capacity delivers long runtime for demanding applications.
Robust Cycle Life: ≥6000 cycles at 25°C ensures longevity and cost savings.
Safe Over-current Protection: Charge over-current protection at 110A and discharge at 125A prevent damage.
Wide Temperature Range: Operates from -20°C to 55°C, ideal for varied climates.
Parallel Scalability: Up to 15 units can be paralleled for larger power needs.
Advanced Communication: Supports BMS(485/CAN), RS232, Bluetooth & WiFi for flexible monitoring.
Low Self-Consumption: ≤200µA when powered off reduces standby drain.
Passive Cell Balancing: Maintains cell health without active balancing circuits.
High Nominal Discharge: 100A nominal discharge supports high-power loads.
Compact Size: 360×150×610mm footprint fits tight spaces.
Model | MR-LFP48-100-WMT |
Battery Type | LiFePO4 Battery |
Nominal Voltage | 51.2V |
Rated Capacity | 100Ah |
Nominal Energy | 5.12kWh |
Cycle Life | ≥6000 @25°C, to 70% EOL |
Nominal Charge Current | 50A |
Nominal Discharge Current | 100A |
Max. Charging Current | 105A |
Max. Discharging Current | 120A |
Charge Over-current Protection | 110A |
Discharge Over-current Protection | 125A |
Over-voltage Protection | 58.4V |
Under-voltage Protection | 43.2V |
Cell Balance Function | Passive Balance |
Power Off Self-Consumption | ≤200µA |
Parallel Capacity | Up to 15 units |
Communication | BMS(485/CAN), RS232, Parallel, Bluetooth & WiFi Module |
Monitoring | PC Software, Mobile APP |
Charge Ambient Temperature | 0°C to 55°C |
Discharge Ambient Temperature | -20°C to 55°C |
Storage Temperature | 0°C to 40°C |
Humidity | 5% – 95% |
Dimension, W × D × H (TH) | 360 × 150 × 610 (647) mm |
Approx. Weight | 50kg |
Warranty | 5 YEARS |
Description
MR-LFP48-100-WMT LiFePO4 5.12kWh 51.2V 100Ah Battery
Key Features & Benefits:
- High Energy Density: 5.12kWh energy capacity delivers long runtime for demanding applications.
- Robust Cycle Life: ≥6000 cycles at 25°C ensures longevity and cost savings.
- Safe Over-current Protection: Charge over-current protection at 110A and discharge at 125A prevent damage.
- Wide Temperature Range: Operates from -20°C to 55°C, ideal for varied climates.
- Parallel Scalability: Up to 15 units can be paralleled for larger power needs.
- Advanced Communication: Supports BMS(485/CAN), RS232, Bluetooth & WiFi for flexible monitoring.
- Low Self-Consumption: ≤200µA when powered off reduces standby drain.
- Passive Cell Balancing: Maintains cell health without active balancing circuits.
- High Nominal Discharge: 100A nominal discharge supports high-power loads.
- Compact Size: 360×150×610mm footprint fits tight spaces.
Ideal For:
- Solar energy storage systems
- Uninterruptible power supplies
- Electric vehicle battery packs
- Off-grid backup power
- Industrial automation
- Renewable energy projects
- Home energy storage
