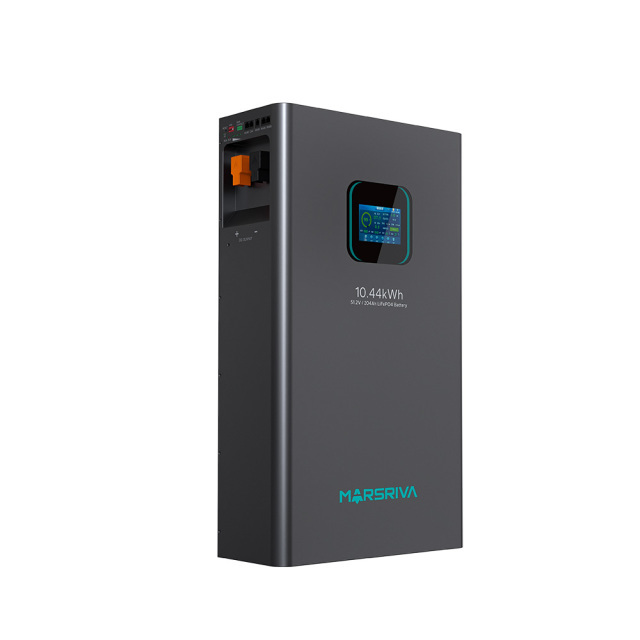

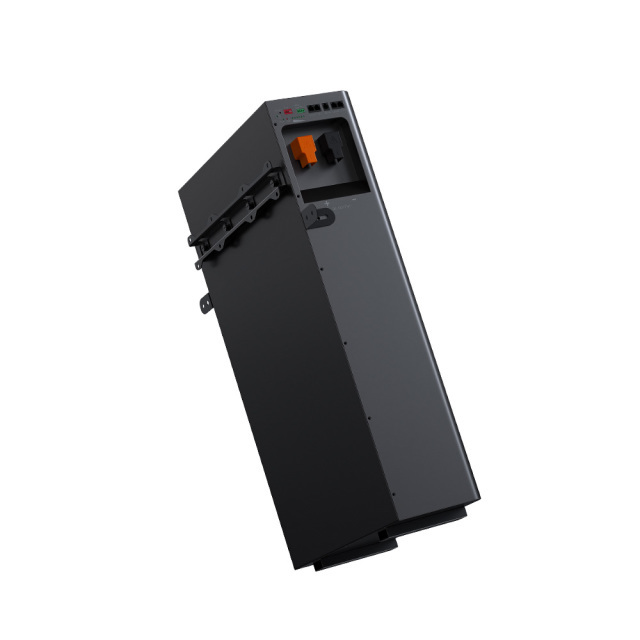

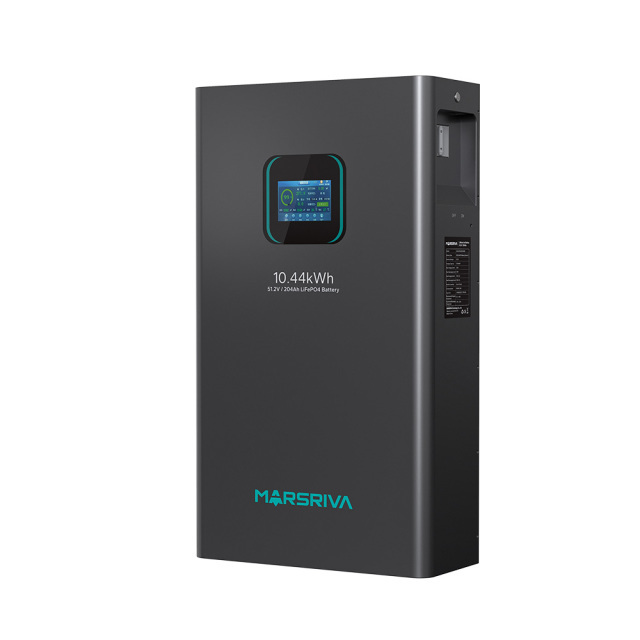

Name: MR LFP48-200-WMD 10.44kWh 51.2V 204Ah Battery
Brand: MARSRIVA
SKU: 6471
Availability: InStock

MR LFP48-200-WMD 10.44kWh 51.2V 204Ah Battery

Genuine Product Fast Delivery Easy Returns

Key Features

High Energy Density: 10.44kWh storage capacity in a compact 485×200×850mm package, ideal for large-scale storage.

Long Cycle Life: ≥6000 cycles at 25°C with 70% EOL ensures durability for high-demand applications.

Extended Design Life: Designed for ≥10 years of reliable operation, reducing replacement costs.

Low Internal Resistance: ≤13.9mΩ internal resistance delivers efficient power delivery and reduced heat.

High Current Capability: 210A continuous and 215A peak currents support fast charging and deep discharging.

Robust Temperature Range: Operates from -20℃ to 55℃ for discharging and 0℃ to 55℃ for charging, suitable for varied climates.

Scalable Parallel Connections: Up to 15 units can be connected in parallel, enabling scalable power solutions.

Dual Communication Protocols: RS485 and CAN interfaces provide flexible integration with industrial control systems.

Grade A LiFePO4 Chemistry: Offers safety, stability, and environmental friendliness for critical applications.

Warranty Assurance: 5-year warranty provides peace of mind and support from Revolution Technology BD.

Specification

Model	MR-LFP48-200-WMD
Battery Type	LiFePO4 Battery (Grade A)
Nominal Voltage	51.2V
Capacity	204Ah
Storage Capacity	10.44kWh
Battery Internal Resistance	≤13.9mΩ
Cycle Life	≥6000 @25°C, to 70% EOL
Design Life	≥10 years
Max. Charging Current	210A
Max. Discharging Current	210A
Peak Charging Current	215A / 2s
Peak Discharging Current	215A / 2s
Communication	RS485, CAN
Number of Parallel Connections	Up to 15 units
Charging Temperature	0℃ to 55℃
Discharging Temperature	-20℃ to 55℃
Storage Temperature	-30℃ to 35℃
Humidity	5% – 95%
Dimension (LWH)	485 × 200 × 850mm
Weight	86kg
Warranty	5 Years

Description

MR LFP48-200-WMD 10.44kWh 51.2V 204Ah Battery

Key Features & Benefits:

High Energy Density: 10.44kWh storage capacity in a compact 485×200×850mm package, ideal for large-scale storage.
Long Cycle Life: ≥6000 cycles at 25°C with 70% EOL ensures durability for high-demand applications.
Extended Design Life: Designed for ≥10 years of reliable operation, reducing replacement costs.
Low Internal Resistance: ≤13.9mΩ internal resistance delivers efficient power delivery and reduced heat.
High Current Capability: 210A continuous and 215A peak currents support fast charging and deep discharging.
Robust Temperature Range: Operates from -20℃ to 55℃ for discharging and 0℃ to 55℃ for charging, suitable for varied climates.
Scalable Parallel Connections: Up to 15 units can be connected in parallel, enabling scalable power solutions.
Dual Communication Protocols: RS485 and CAN interfaces provide flexible integration with industrial control systems.
Grade A LiFePO4 Chemistry: Offers safety, stability, and environmental friendliness for critical applications.
Warranty Assurance: 5-year warranty provides peace of mind and support from Revolution Technology BD.

Ideal For:

Solar energy storage for residential homes
Grid-scale energy storage for utilities
Electric vehicle battery packs
Uninterruptible power supplies for data centers
Industrial backup power systems
Off-grid remote facilities
Renewable energy microgrids

Summary:

The MR LFP48-200-WMD is a high‑performance LiFePO4 battery delivering 10.44kWh at 51.2V with a 204Ah capacity. It boasts a long cycle life of over 6000 cycles, low internal resistance, and robust temperature tolerance, making it suitable for demanding renewable and industrial applications. With scalable parallel connections and dual RS485/CAN communication, it integrates easily into existing systems. Available at Revolution Technology BD, this battery offers reliability, safety, and a 5‑year warranty for peace of mind.
