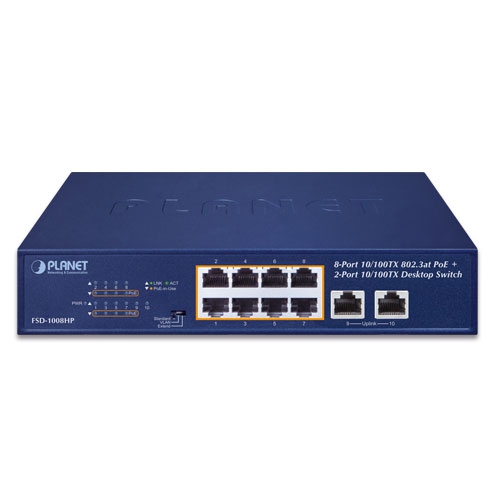

Planet FSD-1008HP 8-Port 120W PoE Unmanaged Switch

Genuine Product Fast Delivery Easy Returns

Key Features

Reliable Power Supply: The Planet FSD-1008HP provides 8-port PoE injector function with Port-1 to Port-8, ensuring a stable power supply to your devices.

High-Speed Connectivity: With 10x 10/100BASE-TX MDI/MDIX Ports, you can enjoy high-speed connectivity and fast data transfer rates.

Easy Installation: The Planet FSD-1008HP features a fanless design and a compact metal enclosure, making it easy to install and manage.

Advanced Switching Technology: The switch architecture is based on store-and-forward, ensuring high-speed switching and low latency.

Robust Security: The Planet FSD-1008HP features IEEE 802.3x pause frame for full-duplex and back pressure for half-duplex, ensuring robust security and data integrity.

Flexible Operation Mode: The DIP switch allows you to select from standard, VLAN, and extend operation modes, giving you flexibility and customization options.

Energy Efficiency: The Planet FSD-1008HP consumes minimal power, with a maximum power consumption of 2.4 watts in system-on mode.

Compact Design: The compact metal enclosure measures 220 x 150 x 43 mm, making it ideal for small spaces and installations.

Long-Lasting Performance: The Planet FSD-1008HP features a robust design and high-quality components, ensuring long-lasting performance and reliability.

Easy Monitoring: The LED indicators provide real-time monitoring of system power, 10/100BASE-TX RJ45 interfaces, and PoE interfaces.

Wide Power Compatibility: The Planet FSD-1008HP supports a wide range of power inputs, from 100 to 240V, making it compatible with various power sources.

Low Noise Operation: The fanless design ensures low noise operation, making it ideal for noise-sensitive environments and installations.

Specification

Copper Ports	10x 10/100BASE-TX MDI/MDIX Ports
PoE Inject Port	8-port with 802.3at/af PoE injector function with Port-1 to Port-8
Switch Architecture	Store-and-Forward
Switch Fabric	2Gbps/non-blocking
MAC Address Table	8K entries, automatic source address learning and aging
Switch Throughput	1.48Mpps@64 bytes
Maximum Frame Size	1522 bytes
Enclosure	Metal
ESD Protection	Contact discharge of 4KV DC, Air discharge of 6KV DC
Flow Control	IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
DIP Switch	Selectable operation mode, Standard, VLAN, Extend
Standard	Standard
VLAN	VLAN
Extend	Extend
LED	System: Power (Green), 10/100BASE-TX RJ45 interfaces: 10/100Mbps LNK/ACT (Green), PoE interfaces: PoE-in-Use (Orange)
Dimensions (W x D x H)	220 x 150 x 43 mm (1U height)
Weight	1230 g
Power Consumption	System On: Max. 2.4 watts/8.1 BTU, Ethernet Full Loading: Max. 5 watts/10.2 BTU, PoE Full Loading: Max. 129 watts/440.1 BTU
Fan	Fanless

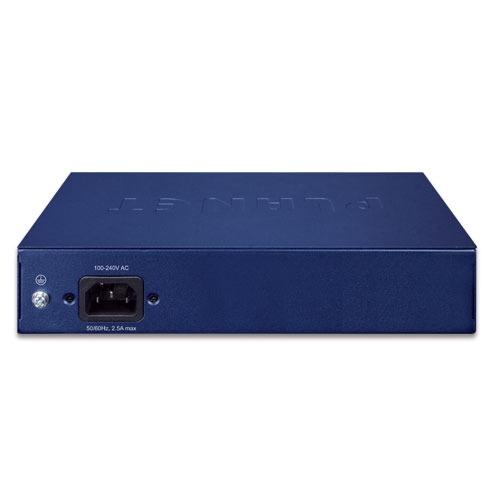

Power Requirements	AC 100~240V, 50/60Hz, 2.5A max
Warranty	3 Year

Description

Planet FSD-1008HP 8-Port 120W PoE Unmanaged Switch

Key Features & Benefits:

Reliable Power Supply: The Planet FSD-1008HP provides 8-port PoE injector function with Port-1 to Port-8, ensuring a stable power supply to your devices.
High-Speed Connectivity: With 10x 10/100BASE-TX MDI/MDIX Ports, you can enjoy high-speed connectivity and fast data transfer rates.
Easy Installation: The Planet FSD-1008HP features a fanless design and a compact metal enclosure, making it easy to install and manage.
Advanced Switching Technology: The switch architecture is based on store-and-forward, ensuring high-speed switching and low latency.
Robust Security: The Planet FSD-1008HP features IEEE 802.3x pause frame for full-duplex and back pressure for half-duplex, ensuring robust security and data integrity.
Flexible Operation Mode: The DIP switch allows you to select from standard, VLAN, and extend operation modes, giving you flexibility and customization options.
Energy Efficiency: The Planet FSD-1008HP consumes minimal power, with a maximum power consumption of 2.4 watts in system-on mode.
Compact Design: The compact metal enclosure measures 220 x 150 x 43 mm, making it ideal for small spaces and installations.
Long-Lasting Performance: The Planet FSD-1008HP features a robust design and high-quality components, ensuring long-lasting performance and reliability.
Easy Monitoring: The LED indicators provide real-time monitoring of system power, 10/100BASE-TX RJ45 interfaces, and PoE interfaces.
Wide Power Compatibility: The Planet FSD-1008HP supports a wide range of power inputs, from 100 to 240V, making it compatible with various power sources.
Low Noise Operation: The fanless design ensures low noise operation, making it ideal for noise-sensitive environments and installations.

Ideal For:

Small businesses and startups
Home offices and remote workers
SMBs and large enterprises
Data centers and server rooms
Industrial and manufacturing environments
Education and research institutions
Government and public sector organizations

Summary:

The Planet FSD-1008HP 8-Port 120W PoE Unmanaged Switch is a reliable and high-performance networking solution ideal for small businesses, home offices, and remote workers. With 8-port PoE injector function, high-speed connectivity, and advanced switching technology, this switch provides a stable and efficient network infrastructure. Its compact design, energy efficiency, and low noise operation make it an ideal choice for various environments and installations. Available at Revolution Technology BD.
