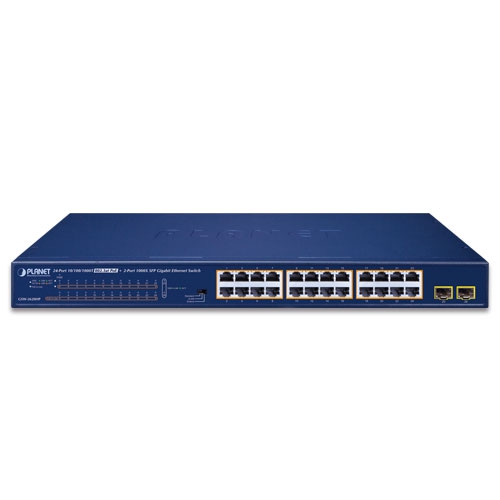

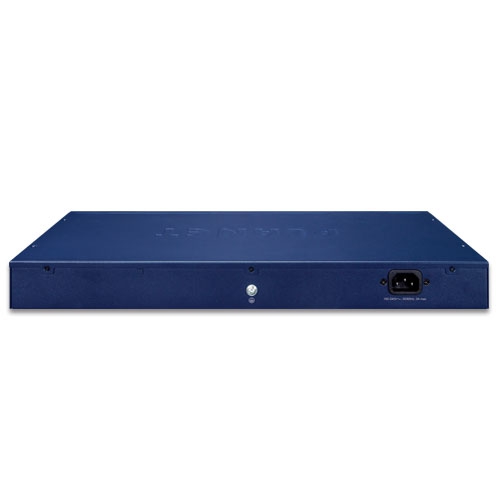

Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

Specification

Description

Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

Key Features & Benefits:

• 24 auto-MDI/MDI-X ports for reliable copper connections: The Planet GSW-2620HP switch features 24 auto-MDI/MDI-X ports for reliable copper connections, ensuring seamless data transfer.
• 24 PoE+ injector ports for powering devices: With 24 PoE+ injector ports, you can power devices such as IP cameras, access points, and VoIP phones, making it an ideal solution for IoT and smart building applications.
• 2 1000BASE-X SFP/mini-GBIC slots for flexible uplink options: The switch features 2 1000BASE-X SFP/mini-GBIC slots, providing flexible uplink options and allowing you to connect to other switches, servers, or network devices.
• Selectable operation mode for flexible deployment: The DIP switch allows for selectable operation mode, giving you the flexibility to deploy the switch in various environments and applications.
• Metal enclosure for durability and reliability: The metal enclosure provides durability and reliability, making it an ideal solution for mission-critical applications.
• 2.79kg weight for easy handling and installation: The switch weighs 2.79kg, making it easy to handle and install, reducing the risk of injury and damage.
• 100~240V AC, 50/60Hz, 3A max. power requirements: The switch requires 100~240V AC, 50/60Hz, 3A max. power, making it compatible with a wide range of power sources and reducing the risk of power-related issues.
• Max. 282 watts/962 BTU power consumption/dissipation: The switch has a max. power consumption/dissipation of 282 watts/962 BTU, making it energy-efficient and reducing the risk of overheating.
• 2 thermal fans for reliable cooling: The switch features 2 thermal fans, providing reliable cooling and ensuring optimal performance.
• 6KV surge protection and 8KV ESD protection for reliable operation: The switch has 6KV surge protection and 8KV ESD protection, ensuring reliable operation and reducing the risk of damage from power surges and ESD events.
• System, 10/100/1000T RJ45 Interfaces, 1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber), PoE (Amber), 1000X SFP Interfaces, 1000 LNK / ACT (Green) LED indicators: The switch features a range of LED indicators, providing real-time status information and making it easy to monitor and troubleshoot the network.
• Store-and-Forward switching architecture for high performance: The switch uses a Store-and-Forward switching architecture, providing high performance and ensuring seamless data transfer.
• 52Gbps/non-blocking switch fabric for high-speed data transfer: The switch has a 52Gbps/non-blocking switch fabric, providing high-speed data transfer and ensuring optimal performance.
• 38.7Mpps switch throughput@64bytes for high-speed data transfer: The switch has a 38.7Mpps switch throughput@64bytes, providing high-speed data transfer and ensuring optimal performance.
• 8K entries MAC address table for reliable network operation: The switch has an 8K entries MAC address table, ensuring reliable network operation and reducing the risk of network congestion.
• 9216 bytes jumbo frame for high-speed data transfer: The switch supports 9216 bytes jumbo frames, providing high-speed data transfer and ensuring optimal performance.
• IEEE 802.3x pause frame for full duplex; back pressure for half duplex flow control: The switch uses IEEE 802.3x pause frame for full duplex; back pressure for half duplex flow control, ensuring reliable network operation and reducing the risk of network congestion.
• IEEE 802.3at Power over Ethernet Plus/PSE for reliable PoE operation: The switch supports IEEE 802.3at Power over Ethernet Plus/PSE, ensuring reliable PoE operation and reducing the risk of power-related issues.
• End-span: 1/2 (+), 3/6 (-) PoE power supply type for reliable PoE operation: The switch uses End-span: 1/2 (+), 3/6 (-) PoE power supply type, ensuring reliable PoE operation and reducing the risk of power-related issues.
• Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af), Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) PoE power output: The switch has a PoE power output of Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af), Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at), ensuring reliable PoE operation and reducing the risk of power-related issues.
• 240 watts PoE power budget for reliable PoE operation: The switch has a PoE power budget of 240 watts, ensuring reliable PoE operation and reducing the risk of power-related issues.
• 24 PDs, 7 watts, 15 PDs, 15.4 watts, 8 PDs, 30 watts for reliable PoE operation: The switch supports 24 PDs, 7 watts, 15 PDs, 15.4 watts, 8 PDs, 30 watts, ensuring reliable PoE operation and reducing the risk of power-related issues.
• FCC Part 15 Class A, CE regulatory compliance for reliable operation: The switch complies with FCC Part 15 Class A, CE regulatory requirements, ensuring reliable operation and reducing the risk of regulatory issues.
• IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x flow control and back pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy-Efficient Ethernet standards compliance for reliable operation: The switch complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x flow control and back pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy-Efficient Ethernet standards, ensuring reliable operation and reducing the risk of regulatory issues.
• Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 95% (non-condensing) operating conditions for reliable operation: The switch operates within Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 95% (non-condensing) conditions, ensuring reliable operation and reducing the risk of environmental issues.
• Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing) storage conditions for reliable operation: The switch can be stored within Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing) conditions, ensuring reliable operation and reducing the risk of environmental issues.

Ideal For:

• Small to medium-sized businesses
• Enterprises
• Data centers
• Service providers
• Educational institutions
• Government agencies
• Smart building applications
• IoT and industrial automation

Summary:

The Planet GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch is a reliable and high-performance switch designed for small to medium-sized businesses, enterprises, data centers, service providers, educational institutions, government agencies, smart building applications, and IoT and industrial automation. With 24 auto-MDI/MDI-X ports, 24 PoE+ injector ports, and 2 1000BASE-X SFP/mini-GBIC slots, this switch provides flexible and reliable connectivity options. The switch also features a range of advanced features, including Store-and-Forward switching architecture, 52Gbps/non-blocking switch fabric, 38.7Mpps switch throughput@64bytes, 8K entries MAC address table, and IEEE 802.3x pause frame for full duplex; back pressure for half duplex flow control. The switch is compliant with a range of regulatory requirements, including FCC Part 15 Class A and CE, and operates within a range of environmental conditions, including Temperature: 0 ~ 50 degrees C and Relative Humidity: 5 ~ 95% (non-condensing).
