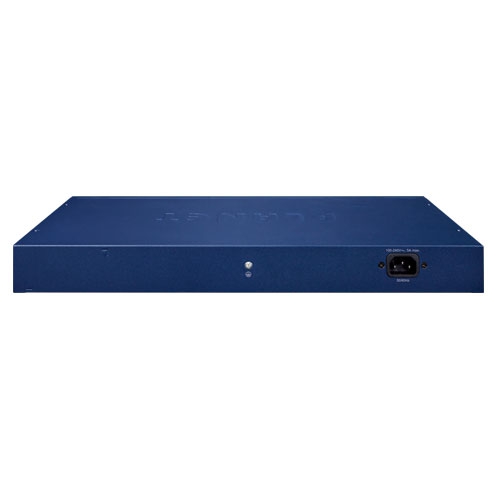

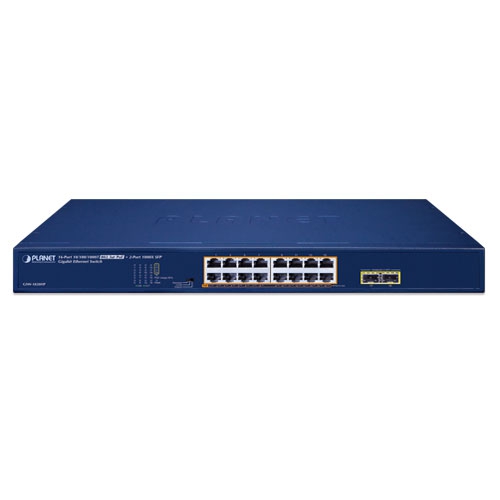

Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

Genuine Product Fast Delivery Easy Returns

Key Features

Reliable Power Supply: The GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch provides a reliable power supply with a maximum power budget of 250 watts.

High-Speed Connectivity: With 16 auto-MDI/MDI-X ports and 2 1000BASE-X SFP/mini-GBIC slots, this switch offers high-speed connectivity for demanding applications.

PoE Support: The switch supports IEEE 802.3at Power over Ethernet Plus/PSE, allowing for the delivery of up to 30 watts of power per port.

Scalability: The GSW-1820HP switch has a switch fabric of 36Gbps/non-blocking, making it suitable for large-scale networks.

Network Security: The switch features 6KV surge protection and 8KV ESD protection, ensuring the security of your network.

Easy Installation: The DIP switch allows for easy selection of operation mode, making installation a breeze.

Compact Design: The switch has a compact design, measuring 441 x 207 x 44 mm (1U height) and weighing only 2.35kg.

Energy Efficiency: The switch supports IEEE 802.3az Energy-Efficient Ethernet, reducing energy consumption and heat generation.

Wide Operating Temperature: The switch operates within a wide temperature range of 0 ~ 50 degrees C, ensuring stable performance in various environments.

High-Speed Switching: The switch can handle a switching throughput of 26.8Mpps, making it suitable for high-speed networks.

Large MAC Address Table: The switch has a large MAC address table of 8K entries, allowing for efficient network management.

Jumbo Frame Support: The switch supports jumbo frames of up to 9216 bytes, reducing packet fragmentation and improving network performance.

Specification

10/100/1000BASE-T Copper Ports	16 auto-MDI/MDI-X ports
802.3af/802.3at PoE+ Injector Port	16
1000BASE-X SFP/mini-GBIC Slots	2
DIP Switch	Selectable operation mode
Dimensions (W x D x H)	441 x 207 x 44 mm (1U height)
Enclosure	Metal
Weight	2.35kg
Power Requirements	100~240V AC, 50/60Hz,5A max.
Power Consumption/Dissipation	Max. 262 watts/893 BTU
Thermal Fan	2
Protection	6KV surge protection, 8KV ESD protection
LED Indicators	System: Power (Green) PoE Usage 80% (Green), 10/100/1000T RJ45 Interfaces (Ports 1 to 16): 10/100/1000 LNK / ACT (Green), PoE-in-Use (Amber), 1000X SFP Interfaces (Ports 17 to 18): 1000 LNK / ACT (Green)
Switching	Switch Architecture: Store-and-Forward, Switch Fabric: 36Gbps/non-blocking, Switch Throughput@64bytes: 26.8Mpps, MAC Address Table: 8K entries, Jumbo Frame: 9216 bytes, Flow Control: IEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet	PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE, Backward compatible with IEEE 802.3af Power over Ethernet, PoE Power Supply Type: End-span: 1/2 (+), 3/6 (-), PoE Power Output: Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af), Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at), PD Alive Check: Yes, PoE Power Budget: 250 watts, Number of PDs, 7 watts: 16, Number of PDs, 15.4 watts: 16, Number of PDs, 30 watts: 8
Standards Conformance	Regulatory Compliance: FCC Part 15 Class A, CE, Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x flow control and back pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy-Efficient Ethernet
Environment	Operating: Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 95% (non-condensing), Storage: Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)

Description

GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

Key Features & Benefits:

Reliable Power Supply: The GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch provides a reliable power supply with a maximum power budget of 250 watts.
High-Speed Connectivity: With 16 auto-MDI/MDI-X ports and 2 1000BASE-X SFP/mini-GBIC slots, this switch offers high-speed connectivity for demanding applications.
PoE Support: The switch supports IEEE 802.3at Power over Ethernet Plus/PSE, allowing for the delivery of up to 30 watts of power per port.
Scalability: The GSW-1820HP switch has a switch fabric of 36Gbps/non-blocking, making it suitable for large-scale networks.
Network Security: The switch features 6KV surge protection and 8KV ESD protection, ensuring the security of your network.
Easy Installation: The DIP switch allows for easy selection of operation mode, making installation a breeze.
Compact Design: The switch has a compact design, measuring 441 x 207 x 44 mm (1U height) and weighing only 2.35kg.
Energy Efficiency: The switch supports IEEE 802.3az Energy-Efficient Ethernet, reducing energy consumption and heat generation.
Wide Operating Temperature: The switch operates within a wide temperature range of 0 ~ 50 degrees C, ensuring stable performance in various environments.
High-Speed Switching: The switch can handle a switching throughput of 26.8Mpps, making it suitable for high-speed networks.
Large MAC Address Table: The switch has a large MAC address table of 8K entries, allowing for efficient network management.
Jumbo Frame Support: The switch supports jumbo frames of up to 9216 bytes, reducing packet fragmentation and improving network performance.

Ideal For:

Small to medium-sized businesses
Large enterprises with demanding network requirements
Data centers and cloud computing environments
Industrial automation and control systems
Security surveillance systems
Wireless access points and IoT devices
Point of Sale (POS) systems and kiosks

Summary:

The GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch is a high-performance switch designed for demanding network applications. With its reliable power supply, high-speed connectivity, and PoE support, it is ideal for small to medium-sized businesses, large enterprises, and data centers. The switch features a compact design, energy efficiency, and a wide operating temperature range, making it a reliable choice for various environments. Available at Revolution Technology BD, this switch is perfect for those seeking a high-performance solution for their network needs.
