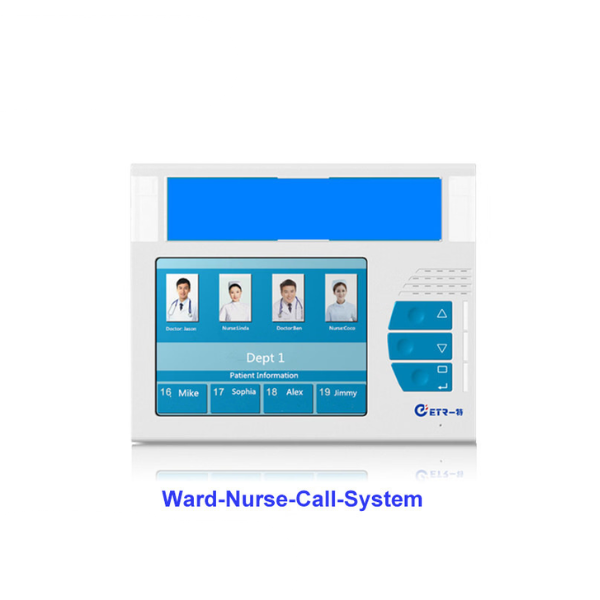

Smart Medical Nurse Call System

Main Functions:

·       Numbering function, can connect HIS system, computer, TV. (Optional model)

·       Two-way call and talkback

·       Simultaneously max receive calls from 60 bed extensions and 10 toilet extensions

·       Volume is adjustable, can set low-volume period (night)

·       Display Time & Date

·       The times and rounds of host number-telling can be set freely

·       Counting patient number and Inquiry calling record. (Optional model)

·       The host displays the call bed number, bathroom extension call number and voice report. (Optional model)

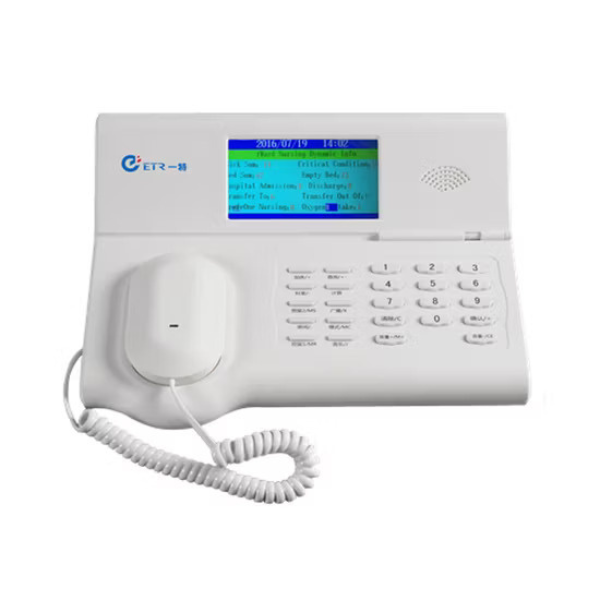

Host of 2 wires series

Specifications :( 60beds)

·       Rated work voltage: 220V220V±22V 50HZ±1HZ

·       Rated power: 15W

·       Static state power consumption：10W

·       Working condition: Ambient Temperature 0℃-40℃

·       Relative Humidity: ≦85%

·       Max communication distance: 200M

Host of 4 wires series

Specifications :( 60beds)

·       Work voltage: Ac220V 士 15%, 50 Hz 士 1 Hz

·       Max effective length of connection; 200m

·       Main line voltage: 20V

·       Working environment term: -10°C ~45°C

·       Power rated: 15 W (no broadcast), 75W (broadcast)

·       Related Humidity: =85%

·       Quiescent power drain: 10W

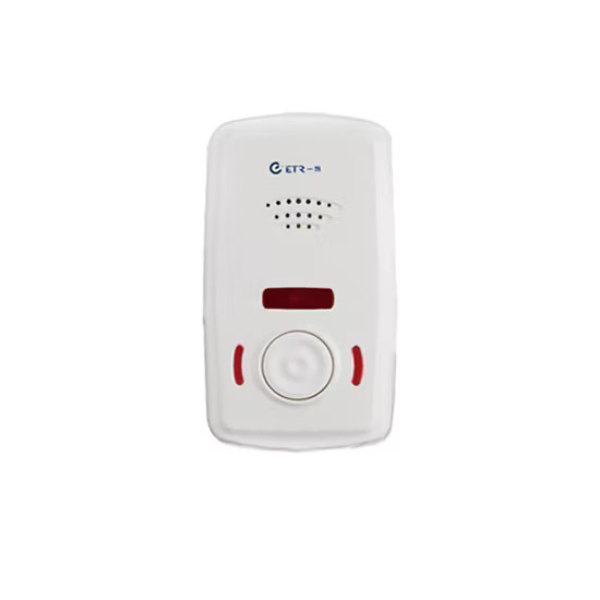

Bed Extensions

Features:

·       The button can call and reset

·       When calling the light shows red, and get-through the light shows green

·       The optional functions of broadcast and music play can be got when the host enabled

Door Lamp (optional)

Bathroom extensions (optional)

Handle

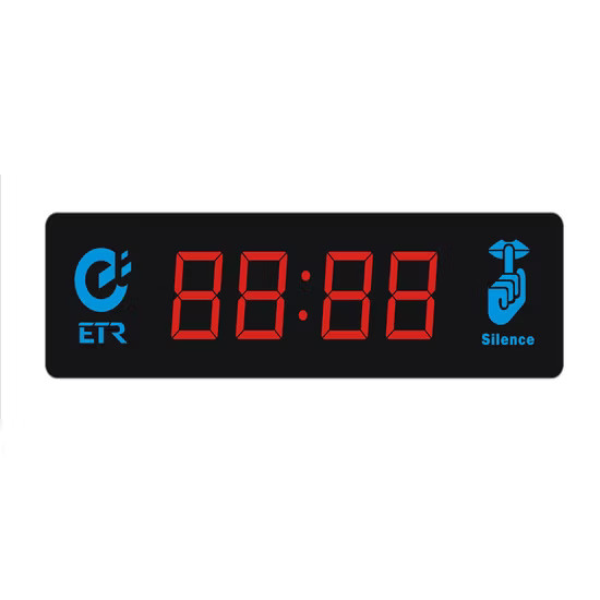

Corridor Display
